SSF-LXH104GD

Active

Lumex Opto/Components Inc.

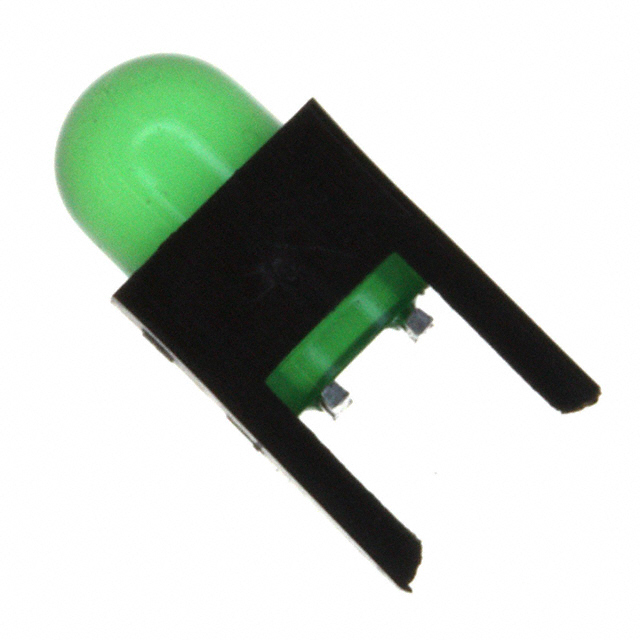

LED CBI 5MM GREEN RA PC MNT

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH104GD

Active

Lumex Opto/Components Inc.

LED CBI 5MM GREEN RA PC MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH104GD	SSF-LXH104 Series

Color	Green	Yellow, Green, Red, White Diffused
Configuration	Single	Single
Current	-	20 mA
Current	-	20 mA
Current	-	12 mA
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused
Millicandela Rating	30 mcd	30 - 40 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	60 °	60 °
Voltage Rating	-	2 - 5 V
Wavelength - Peak	565 nm	565 - 636 nm

SSF-LXH104 Series

LED CBI 5MM YELLOW RA PCMNT

Part	Lens Size	Lens Size	Viewing Angle	Configuration	Lens Style	Mounting Type	Wavelength - Peak	Color	Voltage Rating	Millicandela Rating	Lens Type	Current [custom]	Current [custom]	Current
Lumex Opto/Components Inc. SSF-LXH104YD	T-1 3/4	5 mm	60 °	Single	Round with Domed Top	Through Hole, Right Angle	585 nm	Yellow	2.1 V	30 mcd	Diffused, Tinted
Lumex Opto/Components Inc. SSF-LXH104HGW	T-1 3/4	5 mm		Single	Round with Domed Top	Through Hole, Right Angle		Green, Red, White Diffused	2 V, 2.1 V			20 mA	20 mA
Lumex Opto/Components Inc. SSF-LXH104GD	T-1 3/4	5 mm	60 °	Single	Round with Domed Top	Through Hole, Right Angle	565 nm	Green		30 mcd	Diffused, Tinted
Lumex Opto/Components Inc. SSF-LXH104HD-5V	T-1 3/4	5 mm	60 °	Single	Round with Domed Top	Through Hole, Right Angle	636 nm	Red	5 V	40 mcd	Diffused, Tinted			12 mA
Lumex Opto/Components Inc. SSF-LXH104ID	T-1 3/4	5 mm	60 °	Single	Round with Domed Top	Through Hole, Right Angle	636 nm	Red	2 V	40 mcd	Diffused, Tinted

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.64
		10	$ 0.42
		100	$ 0.27
		1000	$ 0.25

Description

General part information

SSF-LXH104 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.2V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
