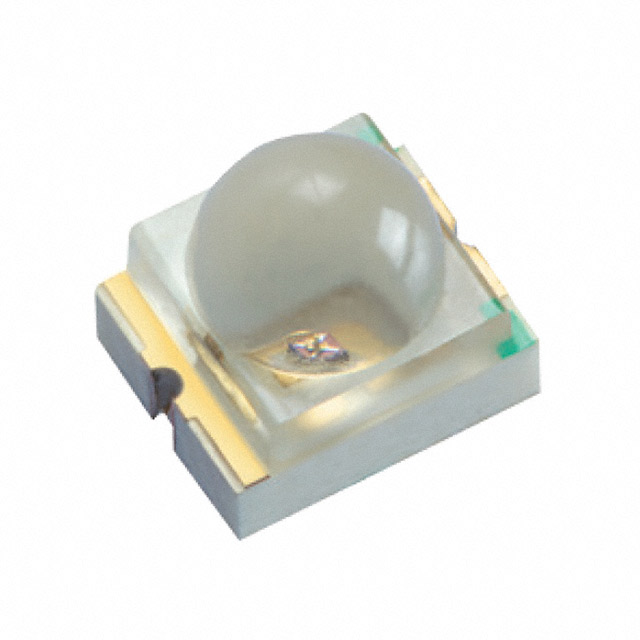

XZM2CYK45W-2

Active

SunLED

LED YELLOW CLEAR 2SMD

Search across all available documentation for this part.

Active

SunLED

LED YELLOW CLEAR 2SMD

Technical Specifications

Parameters and characteristics for this part

Part	Lens Transparency	Color	Millicandela Rating	Wavelength - Dominant	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Lens Size [diameter]	Lens Style	Lens Color	Configuration	Mounting Type	Height (Max) [Max]	Viewing Angle [custom]	Supplier Device Package	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Current - Test	Viewing Angle	Height (Max) [Max] [z]
SunLED XZM2CYK45W-2	Clear	Yellow	1295 mcd	590 nm	1411	3528 Metric	3.5 mm	2.8 mm	2.6 mm	Round with Domed Top	Colorless	Standard	Surface Mount	3.2 mm	40 °	2-SMD	590 nm	2 V	20 mA
SunLED XZM2CYK45WT-9	Clear	Yellow	447 mcd	590 nm	2-SMD Z-Bend		3.2 mm	2.8 mm	2.4 mm		Colorless	Standard	Surface Mount Bottom Entry			2-PLCC	590 nm	2 V	20 mA	120 °	2.1 mm
SunLED XZM2CYK45WT	Clear	Yellow	447 mcd	590 nm	2-PLCC		3.2 mm	2.8 mm	2.4 mm		Colorless	Standard	Surface Mount			2-PLCC	590 nm	2 V	20 mA	120 °	2.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow 590nm LED Indication - Discrete 2V 1411 (3528 Metric)
