GB120A3

Active

Macromatic Industrial Controls

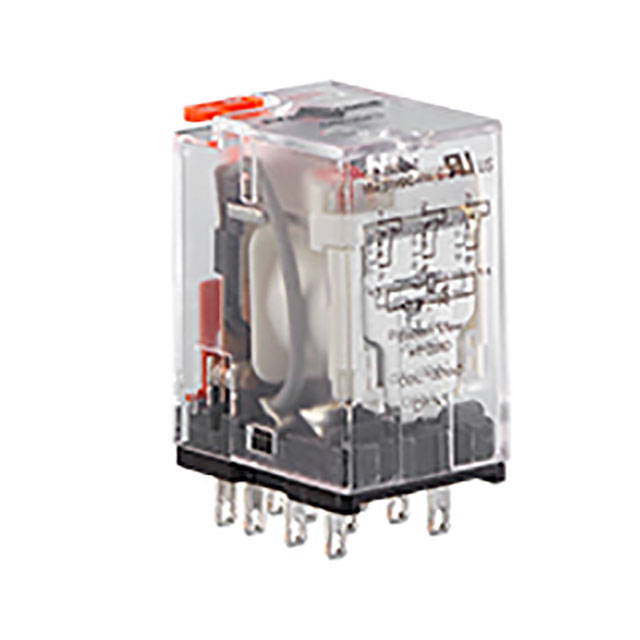

RELAY GEN PURPOSE 3PDT 10A 120V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE 3PDT 10A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 5.50

General part information

General Purpose Relay 3PDT (3 Form C) 120VAC Coil Socketable

Technical documentation and resources

No documents available

Specification	GB120A3	GB120 Series

Coil Type	Non Latching	Non Latching
Coil Voltage	120 VAC	120 VAC
Contact Form	3PDT (3 Form C)	3PDT (3 Form C), DPDT (2 Form C), 4PDT (4 Form C)
Contact Rating (Current)	10 A	6 - 12 A
Features	Test Button, Lighted Indicator	Test Button, Lighted Indicator
Mounting Type	Socketable	Socketable
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Switching Voltage [Max]	30 VDC, 250 VAC	30 - 250 VDC
Termination Style	Plug In	Plug In

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Mounting Type	Relay Type	Coil Voltage	Termination Style	Switching Voltage [Max]	Features	Contact Form	Coil Type
Macromatic Industrial Controls GB120A3	-40 °C	70 °C	10 A	Socketable	General Purpose	120 VAC	Plug In	30 VDC, 250 VAC	Lighted Indicator, Test Button	3PDT (3 Form C)	Non Latching
Macromatic Industrial Controls GB120A2	-40 °C	70 °C	12 A	Socketable	General Purpose	120 VAC	Plug In	30 VDC, 250 VAC	Lighted Indicator, Test Button	DPDT (2 Form C)	Non Latching
Macromatic Industrial Controls GB120A4	-40 °C	70 °C	6 A	Socketable	General Purpose	120 VAC	Plug In	30 VDC, 250 VAC		4PDT (4 Form C)	Non Latching
