Q-1W03D0008024i
ActiveAmphenol Custom Cable

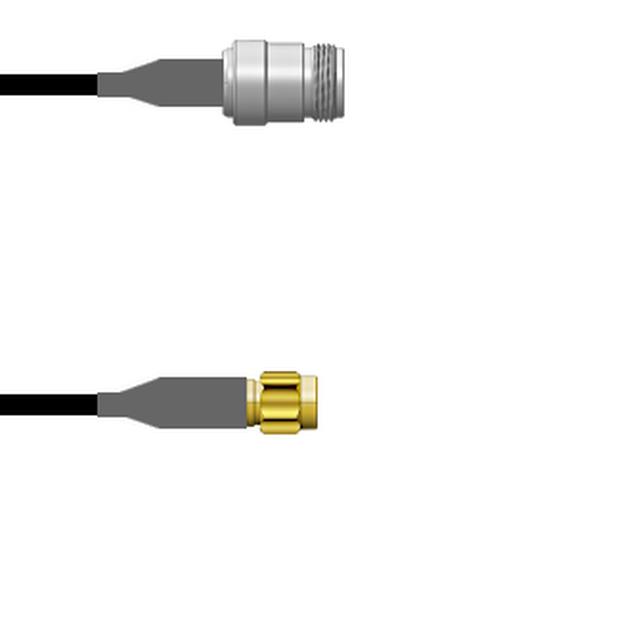

CBL ASSY SMA-NTYPE PLUG-JACK 24"
Deep-Dive with AI
Search across all available documentation for this part.
Q-1W03D0008024i
ActiveAmphenol Custom Cable
CBL ASSY SMA-NTYPE PLUG-JACK 24"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1W03D0008024i |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | RG-58 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 24 " |
| Length | 609.6 mm |
| Overall Impedance | 50 Ohms |
| Style | SMA to N-Type |
Q-1W03D0 Series
| Part | Cable Type | 1st Connector | Color | Length | Length | Length | 1st Contact Gender | Overall Impedance | Frequency - Max [Max] | Style | Features | 1st Connector Mounting Type | 2nd Connector | 2nd Connector Mounting Type | 2nd Contact Gender | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | RG-58 | SMA Plug | Black | 2.7 m | 9 ft | 108 in | Male | 50 Ohms | 11 GHz | SMA to N-Type | Shielded | Free Hanging (In-Line) | N-Type Jack | Free Hanging (In-Line) | Female | ||
Amphenol Custom Cable | RG-58 | SMA Plug | Black | 609.6 mm | 24 " | Male | 50 Ohms | 11 GHz | SMA to N-Type | Shielded | Free Hanging (In-Line) | N-Type Jack | Free Hanging (In-Line) | Female | |||
Amphenol Custom Cable | RG-58 | SMA Plug | Black | 91.44 cm | 36 in | Male | 50 Ohms | 11 GHz | SMA to N-Type | Shielded | Free Hanging (In-Line) | N-Type Jack | Free Hanging (In-Line) | Female | |||
Amphenol Custom Cable | RG-58 | SMA Plug | Black | Male | 50 Ohms | 11 GHz | SMA to N-Type | Shielded | Free Hanging (In-Line) | N-Type Jack | Free Hanging (In-Line) | Female | 9.843 " | 250 mm | |||
Amphenol Custom Cable | RG-58 | SMA Plug | Black | 2.1 m | 7 ft | 84 in | Male | 50 Ohms | 11 GHz | SMA to N-Type | Shielded | Free Hanging (In-Line) | N-Type Jack | Free Hanging (In-Line) | Female | ||
Amphenol Custom Cable | RG-58 | SMA Plug | Black | 750 mm | 29.53 " | Male | 50 Ohms | 11 GHz | SMA to N-Type | Shielded | Free Hanging (In-Line) | N-Type Jack | Free Hanging (In-Line) | Female | |||
Amphenol Custom Cable | RG-58 | SMA Plug | Black | 304.8 mm | 12 " | Male | 50 Ohms | 11 GHz | SMA to N-Type | Shielded | Free Hanging (In-Line) | N-Type Jack | Free Hanging (In-Line) | Female | |||
Amphenol Custom Cable | RG-58 | SMA Plug | Black | 50 cm | 19.69 " | Male | 50 Ohms | 11 GHz | SMA to N-Type | Shielded | Free Hanging (In-Line) | N-Type Jack | Free Hanging (In-Line) | Female | |||
Amphenol Custom Cable | RG-58 | SMA Plug | Black | 1 m | 3.3 ft | 39.4 in | Male | 50 Ohms | 11 GHz | SMA to N-Type | Shielded | Free Hanging (In-Line) | N-Type Jack | Free Hanging (In-Line) | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 67.48 | |
| 25 | $ 66.16 | |||
| 50 | $ 64.84 | |||
| 100 | $ 63.53 | |||
| 250 | $ 62.21 | |||
Description
General part information
Q-1W03D0 Series
Cable Assembly Coaxial SMA to N-Type RG-58 24.00" (609.60mm)
