Specification	ATV06-18SB

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed, IP67
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

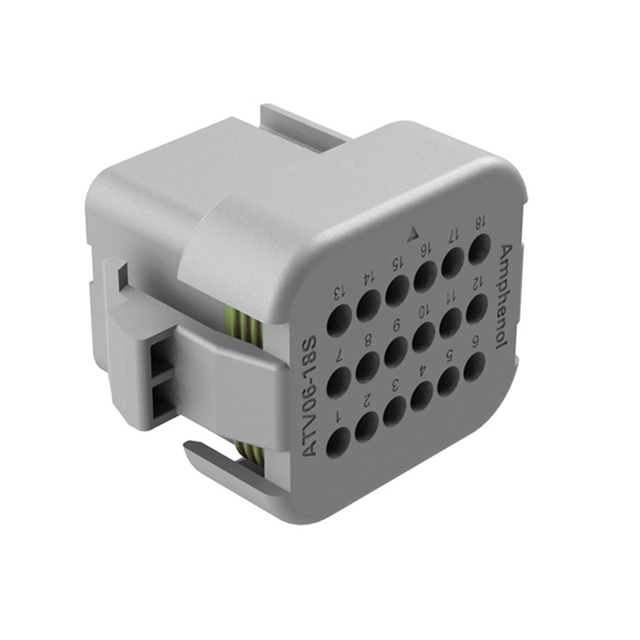

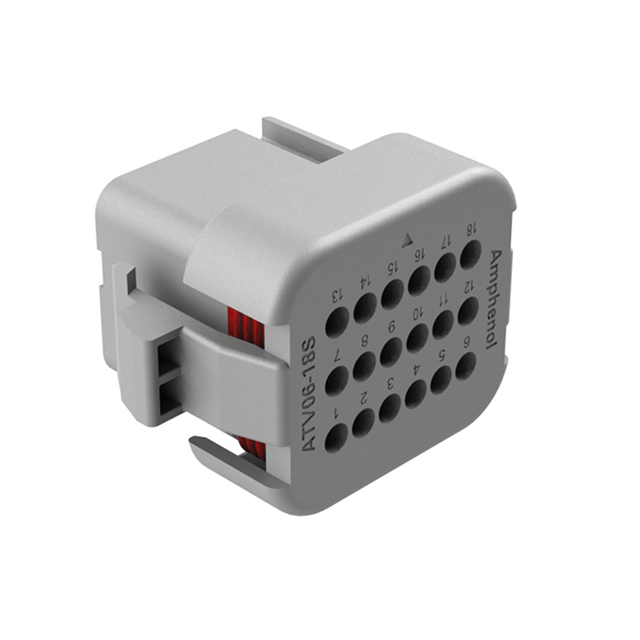

ATV06 Series

Part	Note	Mounting Type	Connector Type	Number of Positions	Insulation Material	Fastening Type	Color	Features	Operating Temperature (Max)	Operating Temperature (Min)	Contact Termination	Contact Type	Number of Rows
McGill Microwave Systems ATV06-38SC-S2	Contacts Not Included	Free Hanging (In-Line)	Plug	38	Thermoplastic	Latch Lock	Gray	IP67 Sealed	125 °C	-40 °C	Crimp	Female Socket

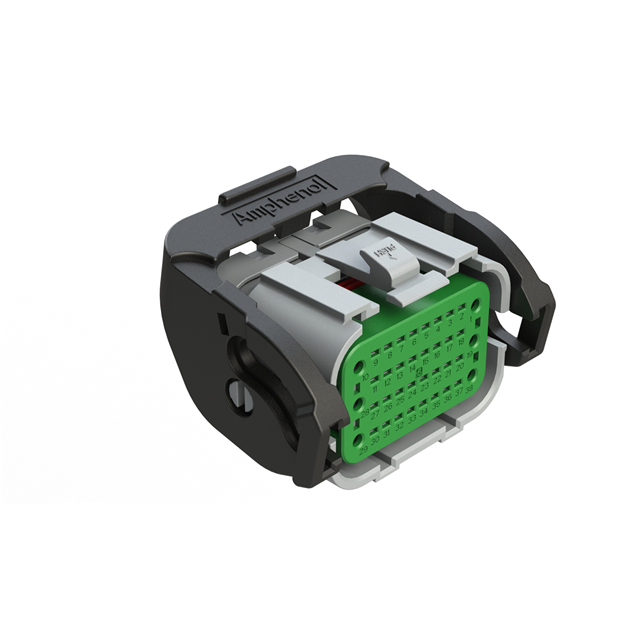

McGill Microwave Systems ATV06-38SB-S2	Contacts Not Included	Free Hanging (In-Line)	Plug	38	Thermoplastic	Latch Lock	Gray	IP67 Sealed	125 °C	-40 °C	Crimp	Female Socket

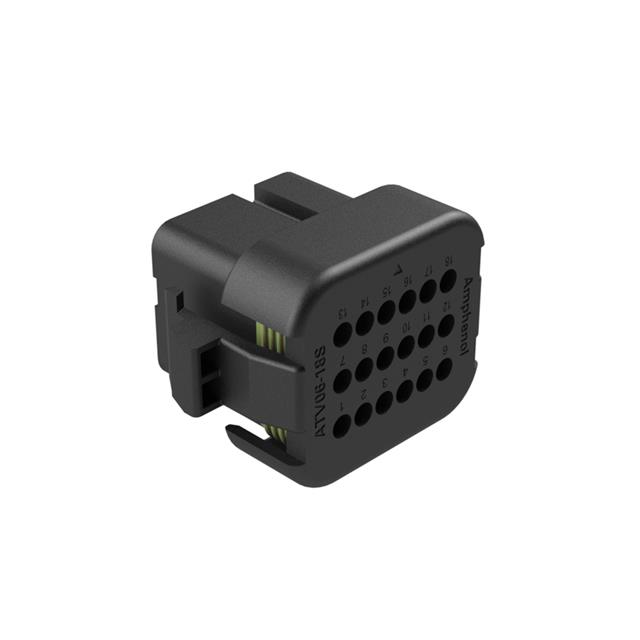

McGill Microwave Systems ATV06-18SB-RR01	Contacts Not Included	Free Hanging (In-Line)	Plug	18	Thermoplastic	Latch Lock	Black	IP67 Sealed	125 °C	-55 °C	Crimp	Female Socket	3

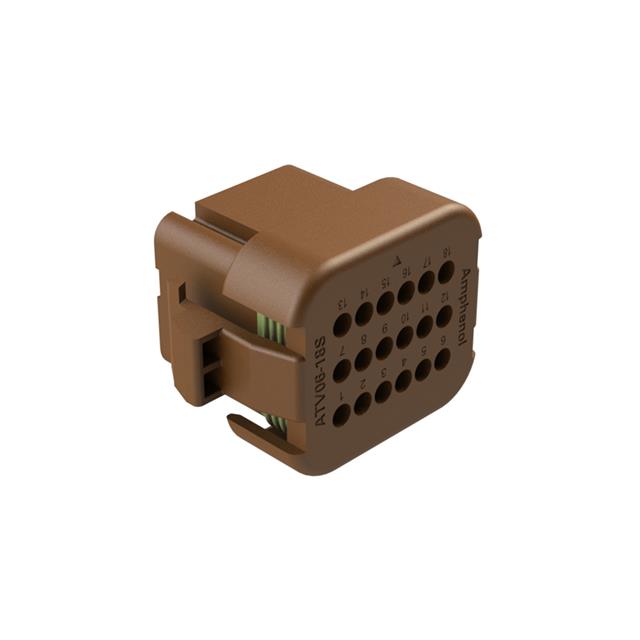

McGill Microwave Systems ATV06-18SD-RR01	Contacts Not Included	Free Hanging (In-Line)	Plug	18	Thermoplastic	Latch Lock	Brown	IP67 Sealed	125 °C	-55 °C	Crimp	Female Socket	3

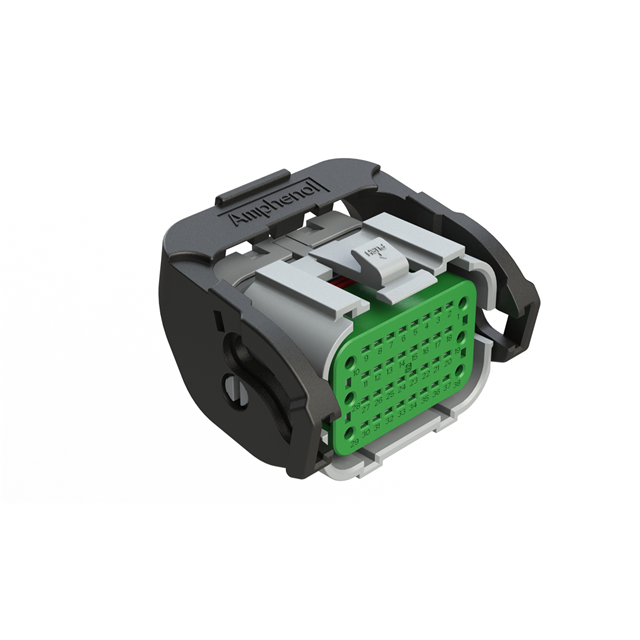

McGill Microwave Systems ATV06-38SA-S2	Contacts Not Included	Free Hanging (In-Line)	Plug	38	Thermoplastic	Latch Lock	Gray	IP67 Sealed	125 °C	-40 °C	Crimp	Female Socket

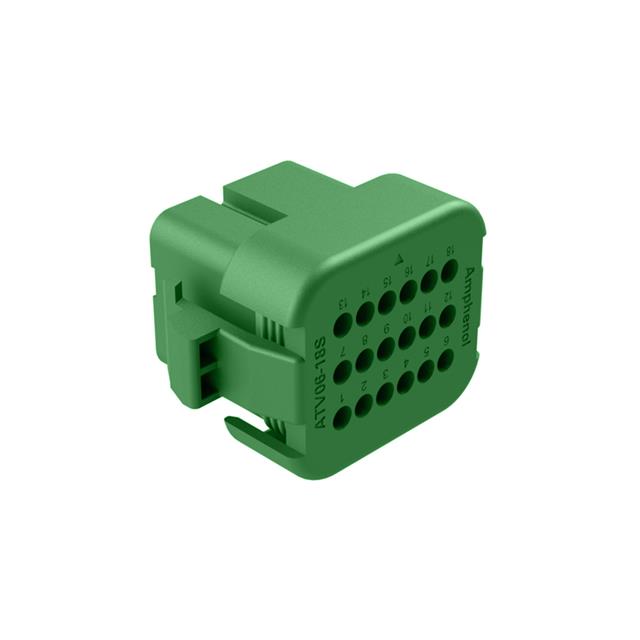

McGill Microwave Systems ATV06-18SC-RR01	Contacts Not Included	Free Hanging (In-Line)	Plug	18	Thermoplastic	Latch Lock	Green	IP67 Sealed	125 °C	-55 °C	Crimp	Female Socket	3

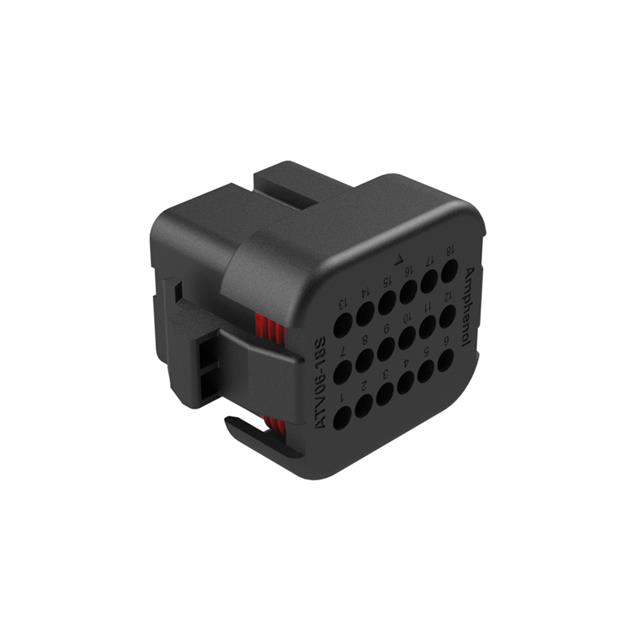

McGill Microwave Systems ATV06-18SB	Contacts Not Included	Free Hanging (In-Line)	Plug	18	Thermoplastic	Latch Lock	Black	IP67 Sealed	125 °C	-55 °C	Crimp	Female Socket	3
McGill Microwave Systems ATV06-18SC	Contacts Not Included	Free Hanging (In-Line)	Plug	18	Thermoplastic	Latch Lock	Green	IP67 Sealed	125 °C	-55 °C	Crimp	Female Socket	3
McGill Microwave Systems ATV06-18SA-RR01	Contacts Not Included	Free Hanging (In-Line)	Plug	18	Thermoplastic	Latch Lock	Gray	IP67 Sealed	125 °C	-55 °C	Crimp	Female Socket	3
McGill Microwave Systems ATV06-18SA	Contacts Not Included	Free Hanging (In-Line)	Plug	18	Thermoplastic	Latch Lock	Gray	IP67 Sealed	125 °C	-55 °C	Crimp	Female Socket	3
