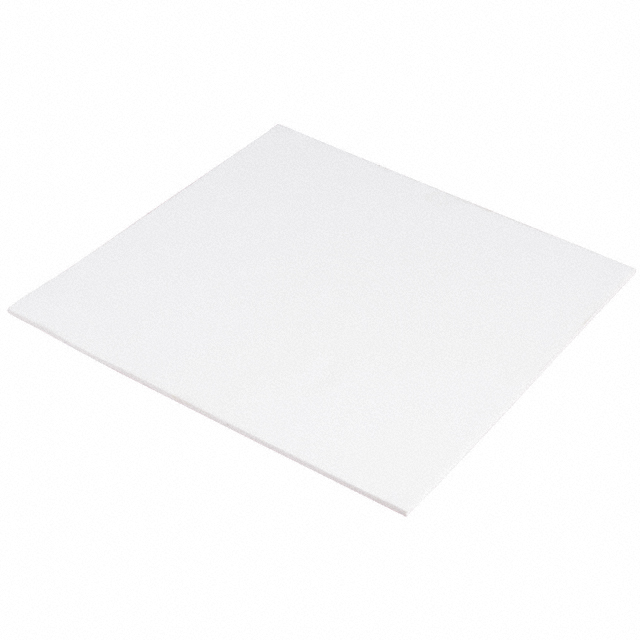

Specification	TG-A2030-100-100-5.0

Adhesive	Tacky - Both Sides
Color	White
Material	Silicone Elastomer
Outline Length	100 mm
Outline Width	100 mm
Shape	Square
Shelf Life	24 Months
Thermal Conductivity	2 W/m-K
Thickness	0.197 in
Type	Sheet, Conductive Pad

TG-A2030 Series

Part	Shelf Life	Thermal Conductivity	Material	Adhesive	Outline Width	Outline Length	Type	Shape	Color	Thickness
t-Global Technology TG-A2030-24-21.01-2.0	24 Months	2 W/m-K	Silicone Elastomer	Tacky - Both Sides	21.01 mm	24 mm	Conductive Pad Sheet	Rectangular	White	0.079 in
t-Global Technology TG-A2030-300-300-1.0	24 Months	2 W/m-K	Silicone Elastomer	Tacky - Both Sides	300 mm	300 mm	Conductive Pad Sheet	Square	White	0.0394 in
t-Global Technology TG-A2030-19.5-12.7-1.0	24 Months	2 W/m-K	Silicone Elastomer	Tacky - Both Sides	12.7 mm	19.5 mm	Conductive Pad Sheet	Rectangular	White	0.0394 in
t-Global Technology TG-A2030-30-30-1.0	24 Months	2 W/m-K	Silicone Elastomer	Tacky - Both Sides	30 mm	30 mm	Conductive Pad Sheet	Square	White	0.0394 in
t-Global Technology TG-A2030-150-150-3.0	24 Months	2 W/m-K	Silicone Elastomer	Tacky - Both Sides	150 mm	150 mm	Conductive Pad Sheet	Square	White	0.118 in
t-Global Technology TG-A2030-20-10-1.0	24 Months	2 W/m-K	Silicone Elastomer	Tacky - Both Sides	10 mm	20 mm	Conductive Pad Sheet	Rectangular	White	0.0394 in
t-Global Technology TG-A2030-5-5-2.0	24 Months	2 W/m-K	Silicone Elastomer	Tacky - Both Sides	5 mm	5 mm	Conductive Pad Sheet	Square	White	0.079 in
t-Global Technology TG-A2030-100-100-5.0	24 Months	2 W/m-K	Silicone Elastomer	Tacky - Both Sides	100 mm	100 mm	Conductive Pad Sheet	Square	White	0.197 in
t-Global Technology TG-A2030-10-10-5.0	24 Months	2 W/m-K	Silicone Elastomer	Tacky - Both Sides	10 mm	10 mm	Conductive Pad Sheet	Square	White	0.197 in
t-Global Technology TG-A2030-300-300-2.0	24 Months	2 W/m-K	Silicone Elastomer	Tacky - Both Sides	300 mm	300 mm	Conductive Pad Sheet	Square	White	0.079 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Die-Cut Tolerence Guide

Thermal Pad Tolerance

TG-A2030-100-100-5.0 | Datasheet
