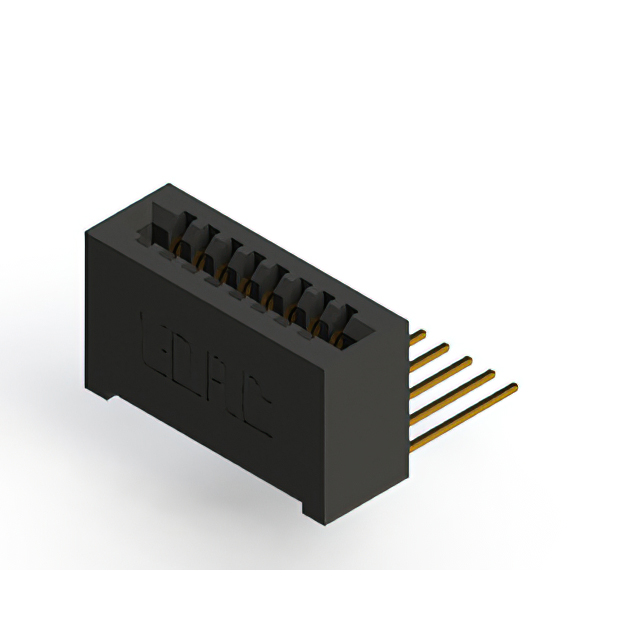

892-008-559-101
ActiveEDAC Inc.
CONN EDGE SINGLE FML 8POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-008-559-101
ActiveEDAC Inc.
CONN EDGE SINGLE FML 8POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-008-559-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
892-008 Series
| Part | Contact Type | Color | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Termination | Number of Rows | Card Type | Mounting Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Gender | Termination Rows | Read Out | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Black | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder Eyelet(s) | 1 | Non Specified - Single Edge | Through Hole | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 1 | Single | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 8 | |||
EDAC Inc. | Cantilever | Black | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | Wire Wrap | 1 | Non Specified - Single Edge | Through Hole | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 1 | Single | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 8 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm |
EDAC Inc. | Cantilever | Black | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 1 | Non Specified - Single Edge | Through Hole Right Angle | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 1 | Single | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 8 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm |
EDAC Inc. | Cantilever | Black | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 1 | Non Specified - Single Edge | Through Hole Right Angle | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 1 | Single | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 8 | |||
EDAC Inc. | Cantilever | Black | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 1 | Non Specified - Single Edge | Through Hole | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 1 | Single | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 8 | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | Cantilever | Black | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 1 | Non Specified - Single Edge | Through Hole | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 1 | Single | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 8 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm |
EDAC Inc. | Cantilever | Black | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | Wire Wrap | 1 | Non Specified - Single Edge | Through Hole | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 1 | Single | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 8 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm |
EDAC Inc. | Cantilever | Black | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder Eyelet(s) | 1 | Non Specified - Single Edge | Through Hole | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 1 | Single | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 8 | Flush Mount M3 Threaded Insert Top Opening | ||
EDAC Inc. | Cantilever | Black | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 1 | Non Specified - Single Edge | Through Hole Right Angle | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 1 | Single | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 8 | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Cantilever | Black | Copper Alloy | 125 °C | -40 °C | 2.54 mm | 0.1 in | Solder | 1 | Non Specified - Single Edge | Through Hole | 8 | 8 | 8 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Female | 1 | Single | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 8 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 67.16 | |
Description
General part information
892-008 Series
8 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
