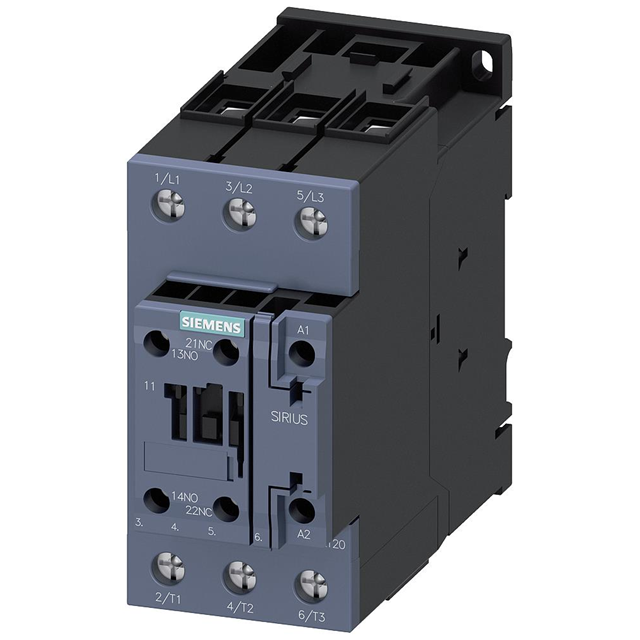

3RT20381AM20
ActiveSiemens
CONTACTOR S2 65A 208VAC SCREW 1N
Deep-Dive with AI
Search across all available documentation for this part.
3RT20381AM20
ActiveSiemens
CONTACTOR S2 65A 208VAC SCREW 1N
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RT20381AM20 |
|---|---|
| Coil Power | 188 VA |
| Coil Voltage | 208 VAC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 80 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 176.8 VAC |
| Operate Time | 80 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 18 ms |
| Switching Voltage | 690 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 358.43 | |
| 10 | $ 345.63 | |||
| 25 | $ 340.51 | |||
Description
General part information
3RT2038 Series
CONTACTOR S2 65A 208VAC SCREW 1N
