H1DXS-6436M
ActiveAssmann WSW Components
IDC CBL - HHKR64S/AE64M/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H1DXS-6436M
ActiveAssmann WSW Components
IDC CBL - HHKR64S/AE64M/X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H1DXS-6436M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Cable |
| Contact Finish | Tin |
| Features | Polarizing Key, Strain Relief |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.73 | |
| 10 | $ 11.29 | |||
| 25 | $ 10.85 | |||
| 50 | $ 10.42 | |||
| 100 | $ 9.84 | |||
| 250 | $ 8.97 | |||
| 500 | $ 8.39 | |||
| 1000 | $ 7.70 | |||
Description
General part information
H1DXS-64 Series

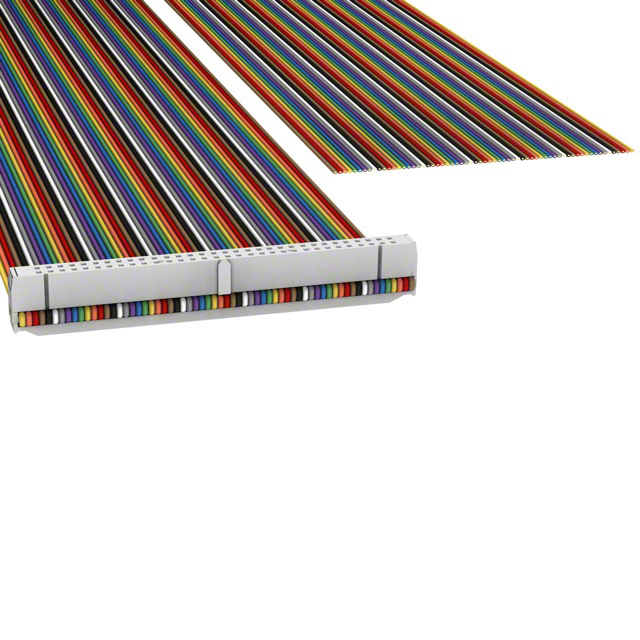

64 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
Documents
Technical documentation and resources
