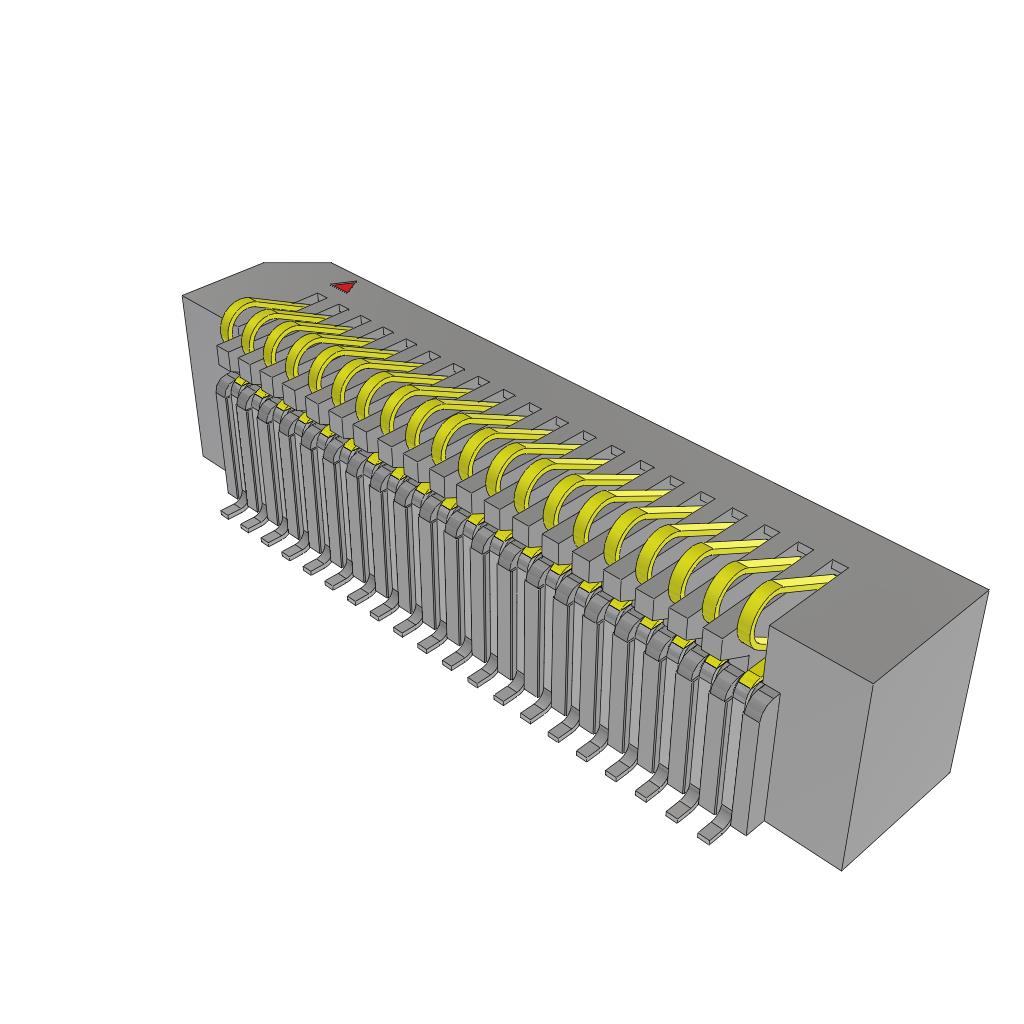

FSI-120-06-L-S

Active

Samtec Inc.

CONN STACKING 20POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN STACKING 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Board to Board & Mezzanine Connectors 1.00 mm One-Piece Interface

Part	Mounting Type	Contact Finish	Features	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Height Above Board	Height Above Board	Height Above Board [z]	Height Above Board [z]
Samtec Inc. FSI-120-03-G-S-M	Surface Mount	Gold	Mounting Flange	0.039 in	1 mm	1	10 Áin	0.25 Ám	20	0.118 in	3 mm
Samtec Inc. FSI-120-03-G-S-M-AD-TR	Surface Mount	Gold	Board Guide Mating Guide Mounting Flange	0.039 in	1 mm	1	10 Áin	0.25 Ám	20	0.118 in	3 mm
Samtec Inc. FSI-120-03-G-D-E-AT-K	Surface Mount	Gold	Mating Guide Mounting Flange Pick and Place	0.039 in	1 mm	2	10 Áin	0.25 Ám	40	0.118 in	3 mm
Samtec Inc. FSI-120-03-G-D-M-AT-K-TR	Surface Mount	Gold	Mating Guide Mounting Flange Pick and Place	0.039 in	1 mm	2	10 Áin	0.25 Ám	40	0.118 in	3 mm
Samtec Inc. FSI-120-06-L-S-AD-WT	Surface Mount	Gold	Board Guide Mating Guide Solder Retention	0.039 in	1 mm	1	10 Áin	0.25 Ám	20	0.236 in	6 mm
Samtec Inc. FSI-120-03-G-D-M-AD-TR	Surface Mount	Gold	Board Guide Mating Guide Mounting Flange	0.039 in	1 mm	2	10 Áin	0.25 Ám	40	0.118 in	3 mm
Samtec Inc. FSI-120-10-L-S	Surface Mount	Gold		0.039 in	1 mm	1	10 Áin	0.25 Ám	20			10 mm	0.394 in
Samtec Inc. FSI-120-06-L-D-AD-P	Surface Mount	Gold	Board Guide Mating Guide Pick and Place	0.039 in	1 mm	2	10 Áin	0.25 Ám	40	0.236 in	6 mm
Samtec Inc. FSI-120-06-L-S	Surface Mount	Gold		0.039 in	1 mm	1	10 Áin	0.25 Ám	20	0.236 in	6 mm
Samtec Inc. FSI-120-03-G-D	Surface Mount	Gold		0.039 in	1 mm	2	10 Áin	0.25 Ám	40	0.118 in	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	22	$ 7.46
