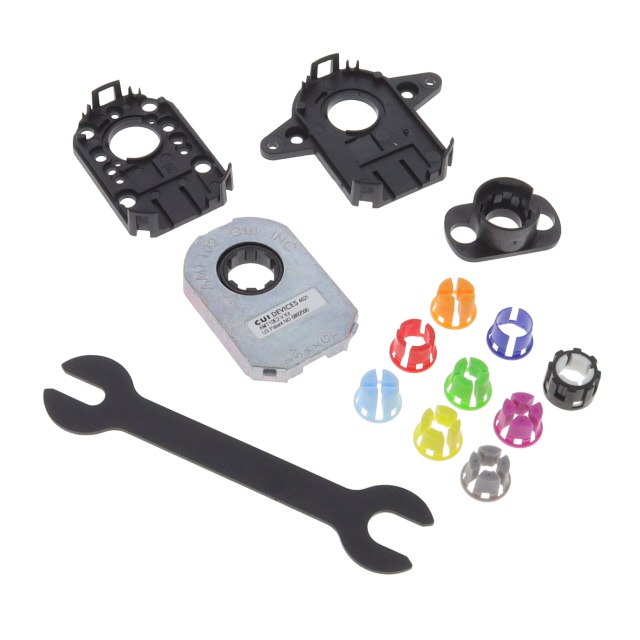

AMT10E2-V

Active

CUI Devices

KIT, AMT10E2, INCREMENTAL ENCODE

Search across all available documentation for this part.

Active

CUI Devices

KIT, AMT10E2, INCREMENTAL ENCODE

Technical Specifications

Parameters and characteristics for this part

Specification	AMT10E2-V

Actuator Type	Open Center
Actuator Type [Max]	8 mm
Actuator Type [Min]	2 mm
Built in Switch	False
Detent	False
Encoder Type	Incremental
Mounting Type	Chassis Mount, Motors
Orientation	Vertical
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	Programmable
Termination Style	Terminal Pins
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3.1 V

KIT, AMT10E2, INCREMENTAL ENCODE

Part	Built in Switch	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Orientation	Detent	Encoder Type	Actuator Type	Actuator Type [Max]	Actuator Type [Min]	Pulses per Revolution	Output Type	Mounting Type
CUI Devices AMT10E2-V		Terminal Pins	5.5 V	3.1 V	Vertical		Incremental	Open Center	8 mm	2 mm	Programmable	Quadrature with Index (Incremental)	Chassis Mount, Motors

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Incremental Programmable Quadrature with Index (Incremental) Vertical
