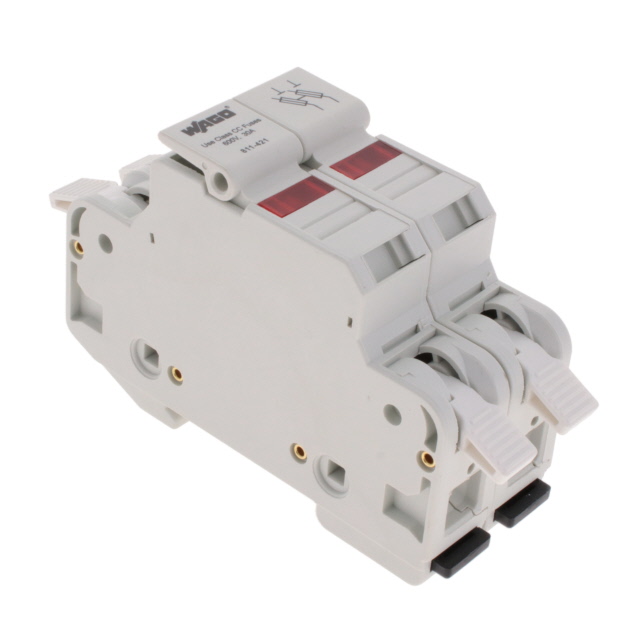

FUSED TERMINAL BLOCK, 2 POSITIONS, 16 AWG, 6 AWG, 16 MM², CLAMP, 30 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

811-421

Active

WAGO Corporation

FUSED TERMINAL BLOCK, 2 POSITIONS, 16 AWG, 6 AWG, 16 MM², CLAMP, 30 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	811-421	811 Series

Color	Gray	Gray
Current - IEC	32 A	32 A
Disconnect Type	Fuse	Fuse
Features	LED Indicator	LED Indicator
Material - Insulation	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Number of Levels	1	1
Number of Positions	4	2 - 6
Stripping Length [Max]	13 mm	13 mm
Stripping Length [Min]	12 mm	12 mm
Terminal - Width	-	17.5 mm
Terminal - Width [y]	35 mm	35 - 52.5 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Disconnect	Disconnect
Voltage - IEC	600 V	600 V
Wire Gauge or Range - AWG [Max]	14 AWG	14 AWG
Wire Gauge or Range - AWG [Min]	6 AWG	6 AWG
Wire Gauge or Range - mm² [Max]	16 mm²	16 mm²
Wire Gauge or Range - mm² [Min]	2.5 mm²	2.5 mm²

811 Series

FUSED TERMINAL BLOCK, 6 POSITIONS, 16 AWG, 6 AWG, 16 MM², CLAMP, 30 A

Part	Voltage - IEC	Number of Levels	Material - Insulation	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Disconnect Type	Terminal - Width [y]	Termination Style	Type	Current - IEC	Number of Positions	Stripping Length [Min]	Stripping Length [Max]	Terminal - Width	Features
WAGO Corporation 811-430	600 V	1	Polyamide (PA66), Nylon 6/6	Gray	16 mm²	2.5 mm²	14 AWG	6 AWG	Fuse	52.5 mm	Push In, Spring	Disconnect	32 A	6	12 mm	13 mm
WAGO Corporation 811-410	600 V	1	Polyamide (PA66), Nylon 6/6	Gray	16 mm²	2.5 mm²	14 AWG	6 AWG	Fuse		Push In, Spring	Disconnect	32 A	2	12 mm	13 mm	17.5 mm
WAGO Corporation 811-421	600 V	1	Polyamide (PA66), Nylon 6/6	Gray	16 mm²	2.5 mm²	14 AWG	6 AWG	Fuse	35 mm	Push In, Spring	Disconnect	32 A	4	12 mm	13 mm		LED Indicator
WAGO Corporation 811-411	600 V	1	Polyamide (PA66), Nylon 6/6	Gray	16 mm²	2.5 mm²	14 AWG	6 AWG	Fuse		Push In, Spring	Disconnect	32 A	2	12 mm	13 mm	17.5 mm	LED Indicator
WAGO Corporation 811-431	600 V	1	Polyamide (PA66), Nylon 6/6	Gray	16 mm²	2.5 mm²	14 AWG	6 AWG	Fuse	52.5 mm	Push In, Spring	Disconnect	32 A	6	12 mm	13 mm		LED Indicator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.24
		10	$ 34.79
		100	$ 31.41
Newark	Each	1	$ 56.00
		25	$ 53.04
		100	$ 49.83
		250	$ 46.87
		500	$ 43.91

Description

General part information

811 Series

The 811-421 is a 2-position 30A light-grey Fuse Terminal Block with CAGE CLAMP® connection technology. It suitable for use with the class CC fuses with blown fuse indication with blown fuse indication. It has polyamide 66 (PA 66) insulators, copper connectable conductor and an operating tool actuation.
