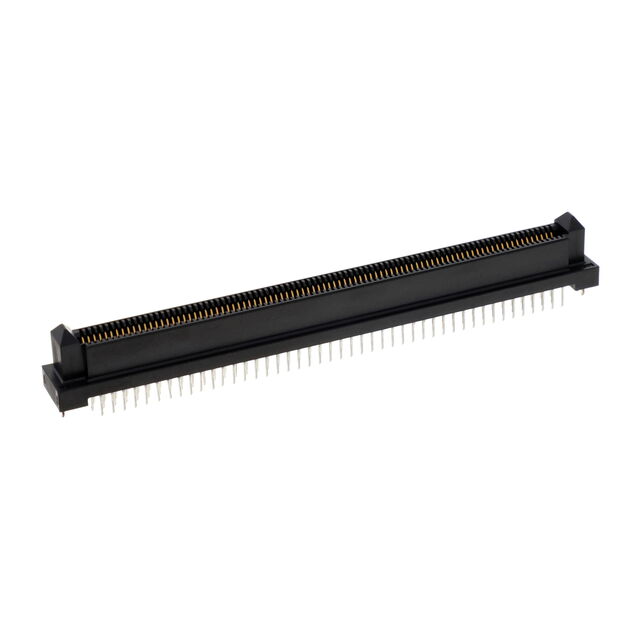

KX24-180R-6ST-H1
ActiveJAE Electronics
CONN RCPT 180POS VERT GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KX24-180R-6ST-H1
ActiveJAE Electronics
CONN RCPT 180POS VERT GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KX24-180R-6ST-H1 |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Mounting Type | Through Hole |
| Number of Positions | 180 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
KX24-180 Series
| Part | Contact Finish | Number of Positions | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Number of Rows | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | Gold | 180 | Center Strip Contacts Receptacle | 4 Áin | 0.1 Ám | 0.8 mm | 0.031 in | 2 | Through Hole |
JAE Electronics | Gold | 180 | Center Strip Contacts Receptacle | 4 Áin | 0.1 Ám | 0.8 mm | 0.031 in | 2 | Through Hole Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.67 | |
| 10 | $ 15.31 | |||
| 25 | $ 14.51 | |||
| 50 | $ 14.30 | |||
| 100 | $ 12.62 | |||
| 250 | $ 11.78 | |||
| 500 | $ 11.53 | |||
Description
General part information
KX24-180 Series
180 Position Connector Receptacle, Center Strip Contacts Through Hole Gold
