T2020012008-000
ActiveTE Connectivity AMP Connectors
DDF-0.75
Deep-Dive with AI
Search across all available documentation for this part.
T2020012008-000
ActiveTE Connectivity AMP Connectors
DDF-0.75
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2020012008-000 | T2020 Series |
|---|---|---|
| Color | - | Gray |
| Connector Type | - | Insert without Contacts |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.75 µm | 0.75 µm |
| Contact Finish Thickness | 29.5 µin | 29.5 µin |
| Contact Termination | Crimp | Crimp |
| Contact Type | - | DD, CD |
| Current Rating (Amps) | - | 10 A |
| Gender | - | Male |
| Housing Material | - | Polycarbonate (PC) |
| Material Flammability Rating | - | UL94 V-0 |
| Number of Positions | - | 64+Ground |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Pin or Socket | Socket | Socket |
| Size | - | H24B |
| Termination Style | - | Crimp |
| Voltage Rating | - | 250 VDC |
| Wire Gauge | 18 AWG | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.23 | |
| 10 | $ 1.13 | |||
| 25 | $ 1.09 | |||
| 50 | $ 1.08 | |||
| 100 | $ 1.00 | |||
| 300 | $ 0.99 | |||
| 500 | $ 0.98 | |||
T2020 Series
DDF-0.75
| Part | Pin or Socket | Contact Termination | Wire Gauge | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Current Rating (Amps) | Contact Type | Color | Size | Termination Style | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Voltage Rating | Material Flammability Rating | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2020012008-000 | Socket | Crimp | 18 AWG | Gold | 0.75 µm | 29.5 µin | |||||||||||||
TE Connectivity AMP Connectors T2020642101-000 | Insert without Contacts | 10 A | CD, DD | Gray | H24B | Crimp | Polycarbonate (PC) | 125 °C | -40 °C | 64+Ground | 250 VDC | UL94 V-0 | Male |
Description
General part information
T2020 Series

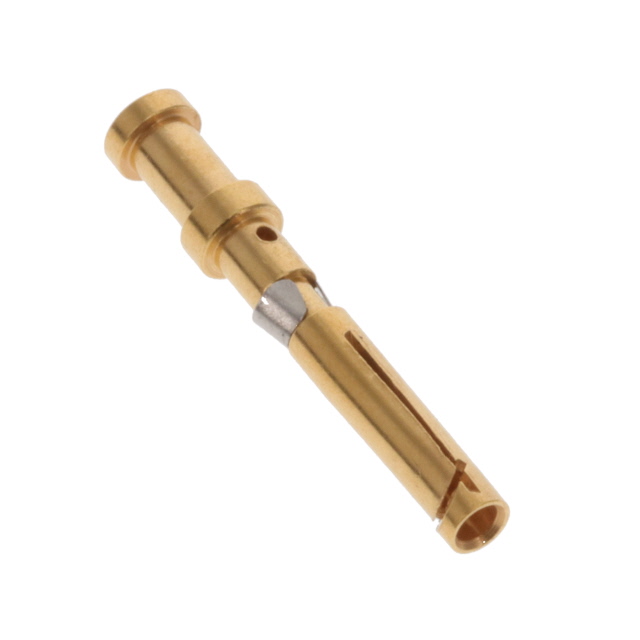

Contact Crimp Socket 18 AWG Gold
