Q-1V035000R084i

Active

Amphenol Custom Cable

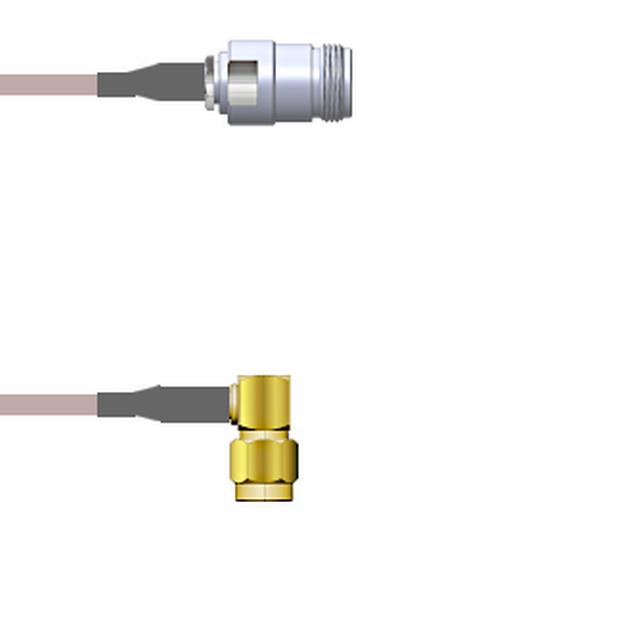

CBL ASSY SMA-NTYPE PLUG-JACK 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1V035000R084i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-JACK 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1V035000R084i

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1V0350 Series

Part	Style	Length	Length	Length	Frequency - Max [Max]	Cable Type	Features	Overall Impedance	1st Connector Mounting Type	2nd Contact Gender	1st Contact Gender	1st Connector	2nd Connector	2nd Connector Mounting Type	Color
Amphenol Custom Cable Q-1V035000R072i	SMA to N-Type	6 ft	72 in	1.8 m	11 GHz	RG-316 DB	Shielded	50 Ohms	Free Hanging (In-Line)	Female	Male	Right Angle SMA Plug	N-Type Jack	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-1V035000R001M	SMA to N-Type	3.3 ft	39.4 in	1 m	11 GHz	RG-316 DB	Shielded	50 Ohms	Free Hanging (In-Line)	Female	Male	Right Angle SMA Plug	N-Type Jack	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-1V035000R003i	SMA to N-Type		3 in	76.2 mm	11 GHz	RG-316 DB	Shielded	50 Ohms	Free Hanging (In-Line)	Female	Male	Right Angle SMA Plug	N-Type Jack	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-1V035000R1.5M	SMA to N-Type	4.9 ft	59.1 in	1.5 m	11 GHz	RG-316 DB	Shielded	50 Ohms	Free Hanging (In-Line)	Female	Male	Right Angle SMA Plug	N-Type Jack	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-1V035000R084i	SMA to N-Type	7 ft	84 in	2.1 m	11 GHz	RG-316 DB	Shielded	50 Ohms	Free Hanging (In-Line)	Female	Male	Right Angle SMA Plug	N-Type Jack	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-1V035000R0.5M	SMA to N-Type		19.69 "	50 cm	11 GHz	RG-316 DB	Shielded	50 Ohms	Free Hanging (In-Line)	Female	Male	Right Angle SMA Plug	N-Type Jack	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-1V035000R.75M	SMA to N-Type		29.53 "	750 mm	11 GHz	RG-316 DB	Shielded	50 Ohms	Free Hanging (In-Line)	Female	Male	Right Angle SMA Plug	N-Type Jack	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-1V035000R003M	SMA to N-Type	9.8 '	118.1 in	3 m	11 GHz	RG-316 DB	Shielded	50 Ohms	Free Hanging (In-Line)	Female	Male	Right Angle SMA Plug	N-Type Jack	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-1V035000R060i	SMA to N-Type	5 ft	5 '	1.5 m	11 GHz	RG-316 DB	Shielded	50 Ohms	Free Hanging (In-Line)	Female	Male	Right Angle SMA Plug	N-Type Jack	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-1V035000R024i	SMA to N-Type		24 "	609.6 mm	11 GHz	RG-316 DB	Shielded	50 Ohms	Free Hanging (In-Line)	Female	Male	Right Angle SMA Plug	N-Type Jack	Free Hanging (In-Line)	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 366.74
		25	$ 361.37
		50	$ 356.00
		100	$ 350.64
		250	$ 345.27

Description

General part information

Q-1V0350 Series

Cable Assembly Coaxial SMA to N-Type RG-316 DB 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
