Q-2C01Q0005003M

Active

Amphenol Custom Cable

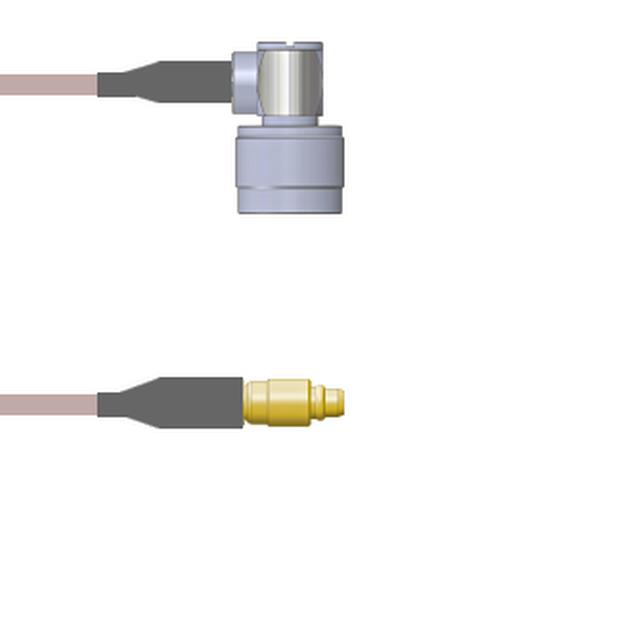

CBL ASSY MMCX-NTYPE PLG-PLG 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C01Q0005003M

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE PLG-PLG 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C01Q0005003M

1st Connector	MMCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-2C01Q0 Series

Part	2nd Contact Gender	1st Connector Mounting Type	Overall Impedance	2nd Connector	2nd Connector Mounting Type	Length	Length	1st Connector	Style	Features	1st Contact Gender	Color	Cable Type	Frequency - Max [Max]	Length [x]	Length [x]	Length	Length [x]
Amphenol Custom Cable Q-2C01Q00050.5M	Male	Free Hanging (In-Line)	50 Ohms	N-Type Plug Right Angle	Free Hanging (In-Line)	50 cm	19.69 "	MMCX Plug	MMCX to N-Type	Shielded	Male	Copper	RG-316	6000 MHz
Amphenol Custom Cable Q-2C01Q0005018i	Male	Free Hanging (In-Line)	50 Ohms	N-Type Plug Right Angle	Free Hanging (In-Line)			MMCX Plug	MMCX to N-Type	Shielded	Male	Copper	RG-316	6000 MHz	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2C01Q0005003M	Male	Free Hanging (In-Line)	50 Ohms	N-Type Plug Right Angle	Free Hanging (In-Line)	3 m	118.1 in	MMCX Plug	MMCX to N-Type	Shielded	Male	Copper	RG-316	6000 MHz			9.8 '
Amphenol Custom Cable Q-2C01Q00031.5M	Male	Free Hanging (In-Line)	50 Ohms	N-Type Plug Right Angle	Free Hanging (In-Line)	1.5 m	59.1 in	MMCX Plug	MMCX to N-Type	Shielded	Male	Black	RG-174	6000 MHz			4.9 ft
Amphenol Custom Cable Q-2C01Q0005024i	Male	Free Hanging (In-Line)	50 Ohms	N-Type Plug Right Angle	Free Hanging (In-Line)	609.6 mm	24 "	MMCX Plug	MMCX to N-Type	Shielded	Male	Copper	RG-316	6000 MHz
Amphenol Custom Cable Q-2C01Q0005006i	Male	Free Hanging (In-Line)	50 Ohms	N-Type Plug Right Angle	Free Hanging (In-Line)	152.4 mm	6 in	MMCX Plug	MMCX to N-Type	Shielded	Male	Copper	RG-316	6000 MHz
Amphenol Custom Cable Q-2C01Q0005002M	Male	Free Hanging (In-Line)	50 Ohms	N-Type Plug Right Angle	Free Hanging (In-Line)	2 m	78.7 in	MMCX Plug	MMCX to N-Type	Shielded	Male	Copper	RG-316	6000 MHz			6.6 ft
Amphenol Custom Cable Q-2C01Q0005.25M	Male	Free Hanging (In-Line)	50 Ohms	N-Type Plug Right Angle	Free Hanging (In-Line)			MMCX Plug	MMCX to N-Type	Shielded	Male	Copper	RG-316	6000 MHz		250 mm		9.843 "
Amphenol Custom Cable Q-2C01Q0003108i	Male	Free Hanging (In-Line)	50 Ohms	N-Type Plug Right Angle	Free Hanging (In-Line)	2.7 m	108 in	MMCX Plug	MMCX to N-Type	Shielded	Male	Black	RG-174	6000 MHz			9 ft
Amphenol Custom Cable Q-2C01Q00051.5M	Male	Free Hanging (In-Line)	50 Ohms	N-Type Plug Right Angle	Free Hanging (In-Line)	1.5 m	59.1 in	MMCX Plug	MMCX to N-Type	Shielded	Male	Copper	RG-316	6000 MHz			4.9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 100.67
		25	$ 93.76
		50	$ 86.84
		100	$ 80.92
		250	$ 75.98

Description

General part information

Q-2C01Q0 Series

Cable Assembly Coaxial MMCX to N-Type RG-316 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
