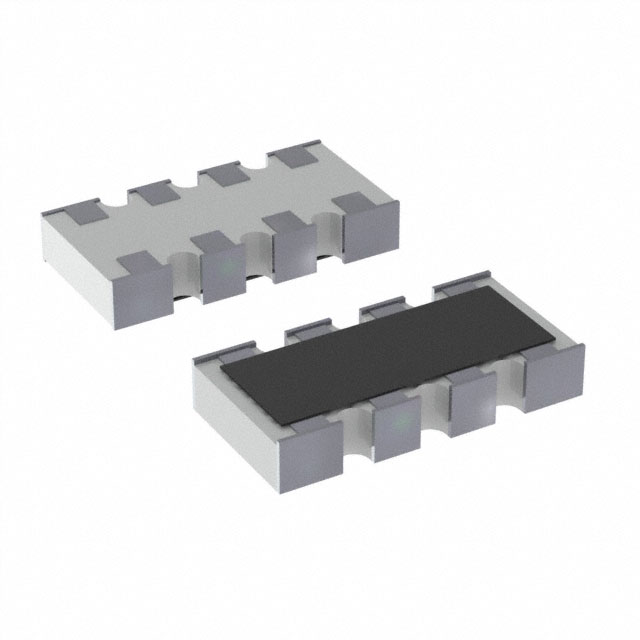

CAY10-121J4LF

Active

Bourns Inc.

RES ARRAY 4 RES 120 OHM 0804

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CAY10-121J4LF

Active

Bourns Inc.

RES ARRAY 4 RES 120 OHM 0804

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CAY10-121J4LF

Circuit Type	Isolated
Height - Seated (Max)	0.45 mm
Height - Seated (Max) [Max] [z]	0.018 "
Mounting Type	Surface Mount
Number of Pins	8
Number of Resistors	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0804, Convex, Long Side Terminals
Resistance (Ohms)	120 Ohms
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	1 mm
Size / Dimension [y]	0.039 "
Temperature Coefficient	250 ppm/°C
Tolerance	5 %

CAY10 Series

Part	Number of Pins	Number of Resistors	Mounting Type	Resistance (Ohms)	Tolerance	Circuit Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Package / Case	Resistance (Ohms)
Bourns Inc. CAY10-221J4LF	8	4	Surface Mount	220 Ohms	5 %	Isolated	-55 °C	125 °C	1 mm	2 mm	0.079 in	0.039 "	0.45 mm	0.018 "	250 ppm/°C	0804 Convex Long Side Terminals
Bourns Inc. CAY10-750J2LF	4	2	Surface Mount	75 Ohms	5 %	Isolated	-55 °C	125 °C	1 mm	1 mm	0.039 in	0.039 "	0.45 mm	0.018 "	250 ppm/°C	0404 (1010 Metric) Convex
Bourns Inc. CAY10-121J4LF	8	4	Surface Mount	120 Ohms	5 %	Isolated	-55 °C	125 °C	1 mm	2 mm	0.079 in	0.039 "	0.45 mm	0.018 "	250 ppm/°C	0804 Convex Long Side Terminals
Bourns Inc. CAY10-300J4LF	8	4	Surface Mount	30 Ohms	5 %	Isolated	-55 °C	125 °C	1 mm	2 mm	0.079 in	0.039 "	0.45 mm	0.018 "	250 ppm/°C	0804 Convex Long Side Terminals
Bourns Inc. CAY10-330J4LF	8	4	Surface Mount	33 Ohms	5 %	Isolated	-55 °C	125 °C	1 mm	2 mm	0.079 in	0.039 "	0.45 mm	0.018 "	250 ppm/°C	0804 Convex Long Side Terminals
Bourns Inc. CAY10-472J4	8	4	Surface Mount		5 %	Isolated	-55 °C	125 °C	1 mm	2 mm	0.079 in	0.039 "	0.45 mm	0.018 "	250 ppm/°C	0804 Convex Long Side Terminals	4.7k
Bourns Inc. CAY10-750J4LF	8	4	Surface Mount	75 Ohms	5 %	Isolated	-55 °C	125 °C	1 mm	2 mm	0.079 in	0.039 "	0.45 mm	0.018 "	250 ppm/°C	0804 Convex Long Side Terminals
Bourns Inc. CAY10-3R0J2LF	4	2	Surface Mount	3 Ohms	5 %	Isolated	-55 °C	125 °C	1 mm	1 mm	0.039 in	0.039 "	0.45 mm	0.018 "	250 ppm/°C	0404 (1010 Metric) Convex
Bourns Inc. CAY10-272J4LF	8	4	Surface Mount	2.7 kOhms	5 %	Isolated	-55 °C	125 °C	1 mm	2 mm	0.079 in	0.039 "	0.45 mm	0.018 "	200 ppm/°C	0804 Convex Long Side Terminals
Bourns Inc. CAY10-564J4LF	8	4	Surface Mount	560 kOhms	5 %	Isolated	-55 °C	125 °C	1 mm	2 mm	0.079 in	0.039 "	0.45 mm	0.018 "	250 ppm/°C	0804 Convex Long Side Terminals

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.07
		25	$ 0.05
		50	$ 0.04
		100	$ 0.03
		250	$ 0.02
		500	$ 0.02
		1000	$ 0.01
		5000	$ 0.01
	Digi-Reel®	1	$ 0.10
		10	$ 0.07
		25	$ 0.05
		50	$ 0.04
		100	$ 0.03
		250	$ 0.02
		500	$ 0.02
		1000	$ 0.01
		5000	$ 0.01
	Tape & Reel (TR)	10000	$ 0.01
		30000	$ 0.01
		50000	$ 0.01
		100000	$ 0.01

Description

General part information

CAY10 Series

120 Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±250ppm/°C 0804, Convex, Long Side Terminals
