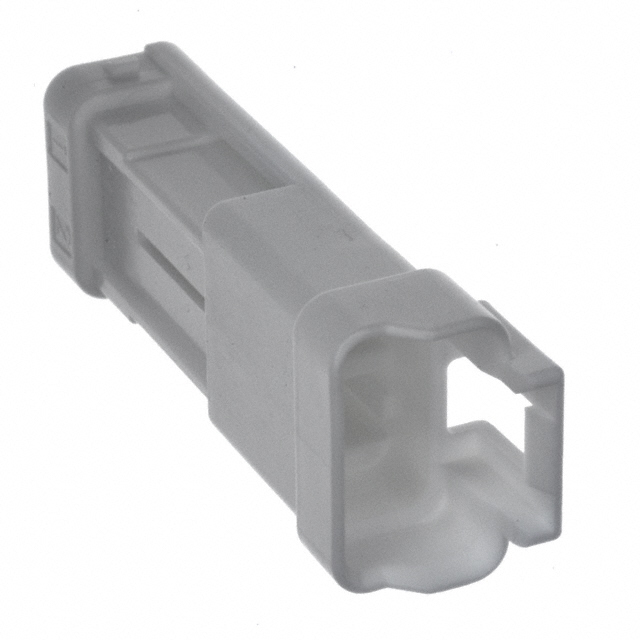

02T-WPJV-1-SM

Active

JST Sales America Inc.

CONN PLUG HSG 2POS 5.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN PLUG HSG 2POS 5.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02T-WPJV-1-SM	02T-WPJV Series

Color	Natural	Natural, Red
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Holder	Latch Holder
Features	JIS C 0920 Grade Level 7	JIS C 0920 Grade Level 7
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in

CONN PLUG HSG 2POS 5.00MM

Part	Contact Termination	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Features	Number of Positions	Insulation Material	Number of Rows	Note	Color	Contact Type	Fastening Type	Mounting Type
JST Sales America Inc. 02T-WPJV-1-SM	Crimp	5 mm	0.197 in	-25 °C	85 °C	Plug	JIS C 0920 Grade Level 7	2	Polybutylene Terephthalate (PBT), Glass Filled	1	Contacts Not Included	Natural	Male Pin	Latch Holder	Free Hanging (In-Line)
JST Sales America Inc. 02T-WPJV-2-RM	Crimp	5 mm	0.197 in	-25 °C	85 °C	Plug	JIS C 0920 Grade Level 7	2		1	Contacts Not Included	Red	Male Pin	Latch Holder	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Plug Natural 0.197" (5.00mm)
