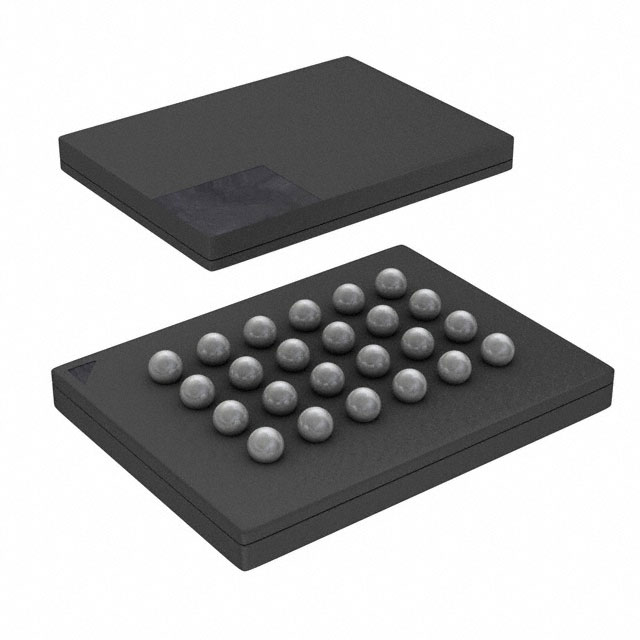

S25FL116K0XBHV033

Obsolete

Infineon Technologies

16MBIT SPI 108MHZ BGA-24(6X8) NOR FLASH ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S25FL116K0XBHV033

Obsolete

Infineon Technologies

16MBIT SPI 108MHZ BGA-24(6X8) NOR FLASH ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S25FL116K0XBHV033

Clock Frequency	108 MHz
Memory Format	FLASH
Memory Interface	SPI - Quad I/O
Memory Organization	2 M
Memory Size	16 Mb
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-TBGA
Supplier Device Package	24-BGA (6x8)
Technology	FLASH - NOR
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V
Write Cycle Time - Word, Page	3 ms

S25FL116 Series

Part	Memory Format	Clock Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [y]	Package / Case	Package / Case [x]	Memory Type	Memory Size	Memory Interface	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Memory Organization	Mounting Type	Write Cycle Time - Word, Page	Grade	Qualification
Infineon Technologies S25FL116K0XMFIS13	FLASH	108 MHz	85 °C	-40 °C	5.3 mm	8-SOIC	0.209 "	Non-Volatile	16 Mb	SPI - Quad I/O	FLASH - NOR	2.7 V	3.6 V	8-SOIC	2 M	Surface Mount	3 ms
Infineon Technologies S25FL116K0XMFI043	FLASH	108 MHz	85 °C	-40 °C	3.9 mm	8-SOIC	0.154 in	Non-Volatile	16 Mb	SPI - Quad I/O	FLASH - NOR	2.7 V	3.6 V	8-SOIC	2 M	Surface Mount	3 ms
Infineon Technologies S25FL116K0XNFV013	FLASH	108 MHz	105 °C	-40 °C		8-WDFN Exposed Pad		Non-Volatile	16 Mb	SPI - Quad I/O	FLASH - NOR	2.7 V	3.6 V	8-WSON (5x6)	2 M	Surface Mount	3 ms
Infineon Technologies S25FL116K0XBHV033	FLASH	108 MHz	105 °C	-40 °C		24-TBGA		Non-Volatile	16 Mb	SPI - Quad I/O	FLASH - NOR	2.7 V	3.6 V	24-BGA (6x8)	2 M	Surface Mount	3 ms
Infineon Technologies S25FL116K0XMFB040	FLASH	108 MHz	105 °C	-40 °C	3.9 mm	8-SOIC	0.154 in	Non-Volatile	16 Mb	SPI - Quad I/O	FLASH - NOR	2.7 V	3.6 V	8-SOIC	2 M	Surface Mount	3 ms	Automotive	AEC-Q100
Infineon Technologies S25FL116K0XMFV041	FLASH	108 MHz	105 °C	-40 °C	3.9 mm	8-SOIC	0.154 in	Non-Volatile	16 Mb	SPI - Quad I/O	FLASH - NOR	2.7 V	3.6 V	8-SOIC	2 M	Surface Mount	3 ms
Infineon Technologies S25FL116K0XMFB043	FLASH	108 MHz	105 °C	-40 °C	3.9 mm	8-SOIC	0.154 in	Non-Volatile	16 Mb	SPI - Quad I/O	FLASH - NOR	2.7 V	3.6 V	8-SOIC	2 M	Surface Mount	3 ms	Automotive	AEC-Q100
Infineon Technologies S25FL116K0XNFV011	FLASH	108 MHz	105 °C	-40 °C		8-WDFN Exposed Pad		Non-Volatile	16 Mb	SPI - Quad I/O	FLASH - NOR	2.7 V	3.6 V	8-WSON (5x6)	2 M	Surface Mount	3 ms
Infineon Technologies S25FL116K0XWEI009	FLASH	108 MHz	85 °C	-40 °C	7.5 mm	16-SOIC	0.295 in	Non-Volatile	16 Mb	SPI - Quad I/O	FLASH - NOR	2.7 V	3.6 V	16-SOIC	2 M	Surface Mount	3 ms
Infineon Technologies S25FL116K0XMFIS11	FLASH	108 MHz	85 °C	-40 °C	5.3 mm	8-SOIC	0.209 "	Non-Volatile	16 Mb	SPI - Quad I/O	FLASH - NOR	2.7 V	3.6 V	8-SOIC	2 M	Surface Mount	3 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	Piece	1	$ 1.30
		200	$ 0.52
		500	$ 0.50
		1000	$ 0.49

Description

General part information

S25FL116 Series

FLASH - NOR Memory IC 16Mbit SPI - Quad I/O 108 MHz 24-BGA (6x8)

Documents

Technical documentation and resources
