FTSH-124-01-F-DV-K-P-TR

Active

Samtec Inc.

CONN HEADER SMD 48POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FTSH Drawing +1

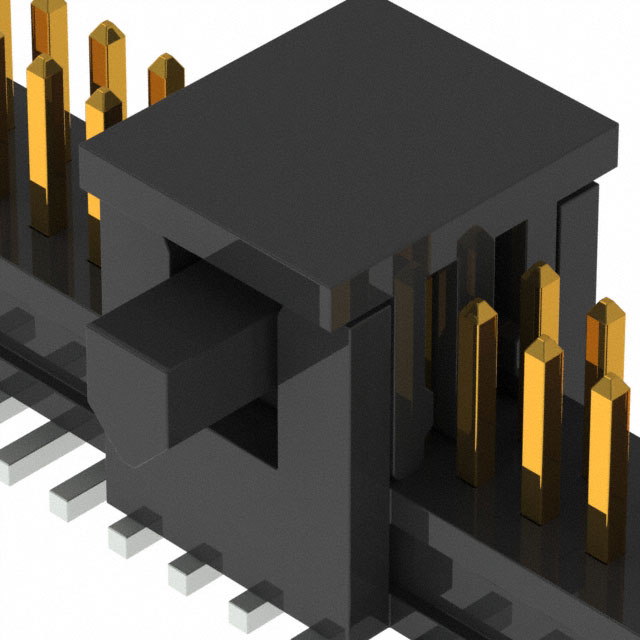

FTSH-124-01-F-DV-K-P-TR

Active

Samtec Inc.

CONN HEADER SMD 48POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet FTSH Drawing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTSH-124-01-F-DV-K-P-TR

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Keying Shroud
Insulation Color	Black
Insulation Height	2.51 mm
Insulation Height	0.099 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	48
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTSH-124 Series

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Termination	Style	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Shape	Mounting Type	Material Flammability Rating	Contact Material	Connector Type	Number of Positions Loaded	Number of Rows	Number of Positions	Fastening Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Insulation Height	Insulation Height	Features	Contact Type	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]
Samtec Inc. FTSH-124-01-L-DV-EJ	0.05 in	1.27 mm	Tin	Solder	Board to Board Cable	-55 °C	125 °C	0.05 in	1.27 mm	Black	Gold	3.05 mm	0.12 in	Square	Surface Mount	UL94 V-0	Phosphor Bronze	Cuttable Header	All	2	48	Latch Lock/Eject Hooks	Shrouded	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2.51 mm	0.099 in	End Shrouds	Male Pin
Samtec Inc. FTSH-124-01-F-DV-K-P-TR	0.05 in	1.27 mm	Tin	Solder	Board to Board Cable	-55 °C	125 °C	0.05 in	1.27 mm	Black	Gold	3.05 mm	0.12 in	Square	Surface Mount	UL94 V-0	Phosphor Bronze	Cuttable Header	All	2	48	Push-Pull	Unshrouded	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	2.51 mm	0.099 in	Keying Shroud Pick and Place	Male Pin
Samtec Inc. FTSH-124-02-L-D-ES	0.05 in	1.27 mm	Tin	Solder	Board to Board Cable	-55 °C	125 °C	0.05 in	1.27 mm	Black	Gold			Square	Through Hole	UL94 V-0	Phosphor Bronze	Cuttable Header	All	2	48	Push-Pull	Shrouded	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2.51 mm	0.099 in	End Shrouds	Male Pin	0.09 "	2.29 mm	6.73 mm	0.265 in	1.9 mm	0.075 in
Samtec Inc. FTSH-124-01-L-DV-P	0.05 in	1.27 mm	Tin	Solder	Board to Board Cable	-55 °C	125 °C	0.05 in	1.27 mm	Black	Gold	3.05 mm	0.12 in	Square	Surface Mount	UL94 V-0	Phosphor Bronze	Cuttable Header	All	2	48	Push-Pull	Unshrouded	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2.51 mm	0.099 in	Pick and Place	Male Pin
Samtec Inc. FTSH-124-03-L-DV-A	0.05 in	1.27 mm	Tin	Solder	Board to Board Cable	-55 °C	125 °C	0.05 in	1.27 mm	Black	Gold	1.65 mm	0.065 in	Square	Surface Mount	UL94 V-0	Phosphor Bronze	Cuttable Header	All	2	48	Push-Pull	Unshrouded	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2.51 mm	0.099 in	Board Guide	Male Pin
Samtec Inc. FTSH-124-01-L-D	0.05 in	1.27 mm	Tin	Solder	Board to Board Cable	-55 °C	125 °C	0.05 in	1.27 mm	Black	Gold	3.05 mm	0.12 in	Square	Through Hole	UL94 V-0	Phosphor Bronze	Cuttable Header	All	2	48	Push-Pull	Unshrouded	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2.51 mm	0.099 in		Male Pin	0.09 "	2.29 mm	7.86 mm	0.309 in
Samtec Inc. FTSH-124-04-L-DV-P	0.05 in	1.27 mm	Tin	Solder	Board to Board Cable	-55 °C	125 °C	0.05 in	1.27 mm	Black	Gold	3.81 mm	0.15 in	Square	Surface Mount	UL94 V-0	Phosphor Bronze	Cuttable Header	All	2	48	Push-Pull	Unshrouded	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2.51 mm	0.099 in	Pick and Place	Male Pin
Samtec Inc. FTSH-124-02-F-DV	0.05 in	1.27 mm	Tin	Solder	Board to Board Cable	-55 °C	125 °C	0.05 in	1.27 mm	Black	Gold			Square	Surface Mount	UL94 V-0	Phosphor Bronze	Cuttable Header	All	2	48	Push-Pull	Unshrouded	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	2.51 mm	0.099 in		Male Pin					1.9 mm	0.075 in
Samtec Inc. FTSH-124-01-L-DH-TR	0.05 in	1.27 mm	Tin	Solder	Board to Board Cable	-55 °C	125 °C	0.05 in	1.27 mm	Black	Gold	3.05 mm	0.12 in	Square	Surface Mount Right Angle	UL94 V-0	Phosphor Bronze	Cuttable Header	All	2	48	Push-Pull	Unshrouded	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	3.43 mm	0.135 "		Male Pin
Samtec Inc. FTSH-124-01-F-D-RA	0.05 in	1.27 mm	Tin	Solder	Board to Board Cable	-55 °C	125 °C	0.05 in	1.27 mm	Black	Gold	3.05 mm	0.12 in	Square	Through Hole Right Angle	UL94 V-0	Phosphor Bronze	Cuttable Header	All	2	48	Push-Pull	Unshrouded	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	3.43 mm	0.135 "		Male Pin	0.09 "	2.29 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

FTSH-124 Series

Connector Header Surface Mount 48 position 0.050" (1.27mm)
