S24SP24002PDFA

Active

Delta Electronics

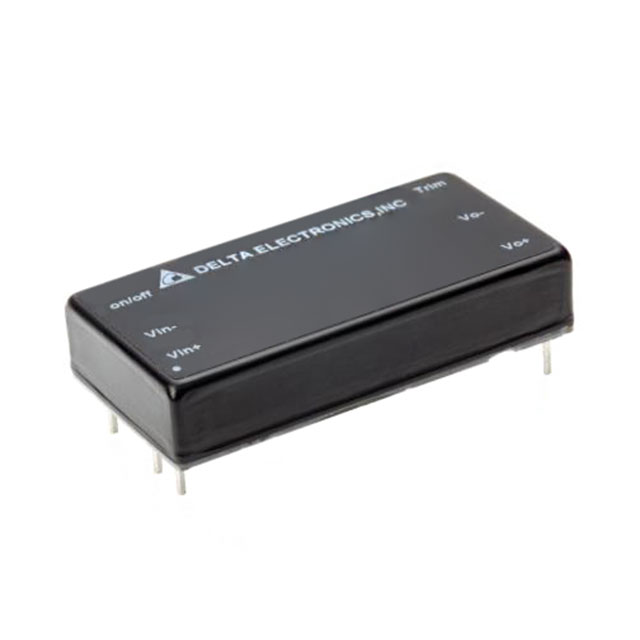

MODULE DC-DC 24VIN 1-OUT 24V 1.7A 40W 6-PIN

Search across all available documentation for this part.

Active

Delta Electronics

MODULE DC-DC 24VIN 1-OUT 24V 1.7A 40W 6-PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 24V 1.7A 9V - 36V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	S24SP24002PDFA	S24SP Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active High, Enable	Active High, Enable
Current - Output (Max) [Max]	1.7 A	1.7 - 5 A
Efficiency	92.5 %	92.5 - 92.8 %
Features	OVP, OTP, OCP, Remote On/Off, SCP	OVP, OTP, OCP, Remote On/Off, SCP, UVLO
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-DIP Module	6-DIP Module
Power (Watts)	40 W	40 - 60 W
Size / Dimension [x]	2 in	2 in
Size / Dimension [x]	50.8 mm	50.8 mm
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [z]	10.5 mm	10.5 - 17.5 mm
Size / Dimension [z]	0.41 "	0.41 - 0.69 "
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	9 V	9 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	24 V	12 - 24 V

MODULE DC-DC 24VIN 1-OUT 12V 3.5A 40W 6-PIN

Part	Control Features	Applications	Voltage - Output 1	Voltage - Input (Max) [Max]	Features	Package / Case	Mounting Type	Type	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Power (Watts)	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Delta Electronics S24SP12004PDFA	Active High, Enable	ITE (Commercial)	12 V	36 V	OCP, OTP, OVP, Remote On/Off, SCP	6-DIP Module	Through Hole	Isolated Module	1	2 in	10.5 mm	25.4 mm	50.8 mm	0.41 "	25.4 mm	1.5 kV	40 W	9 V	92.8 %	3.5 A	85 °C	-40 °C
Delta Electronics S24SP12005PDFH		ITE (Commercial)	12 V	36 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	6-DIP Module	Through Hole	Isolated Module	1	2 in	17.5 mm	25.4 mm	50.8 mm	0.69 "	25.4 mm	1.5 kV	60 W	9 V	92.8 %	5 A	85 °C	-40 °C
Delta Electronics S24SP12005PDFA	Active High, Enable	ITE (Commercial)	12 V	36 V	OCP, OTP, OVP, Remote On/Off, SCP	6-DIP Module	Through Hole	Isolated Module	1	2 in	10.5 mm	25.4 mm	50.8 mm	0.41 "	25.4 mm	1.5 kV	60 W	9 V	92.8 %	5 A	85 °C	-40 °C
Delta Electronics S24SP24002PDFA	Active High, Enable	ITE (Commercial)	24 V	36 V	OCP, OTP, OVP, Remote On/Off, SCP	6-DIP Module	Through Hole	Isolated Module	1	2 in	10.5 mm	25.4 mm	50.8 mm	0.41 "	25.4 mm	1.5 kV	40 W	9 V	92.5 %	1.7 A	85 °C	-40 °C
