HTSS-110-02-T-D

Active

Samtec Inc.

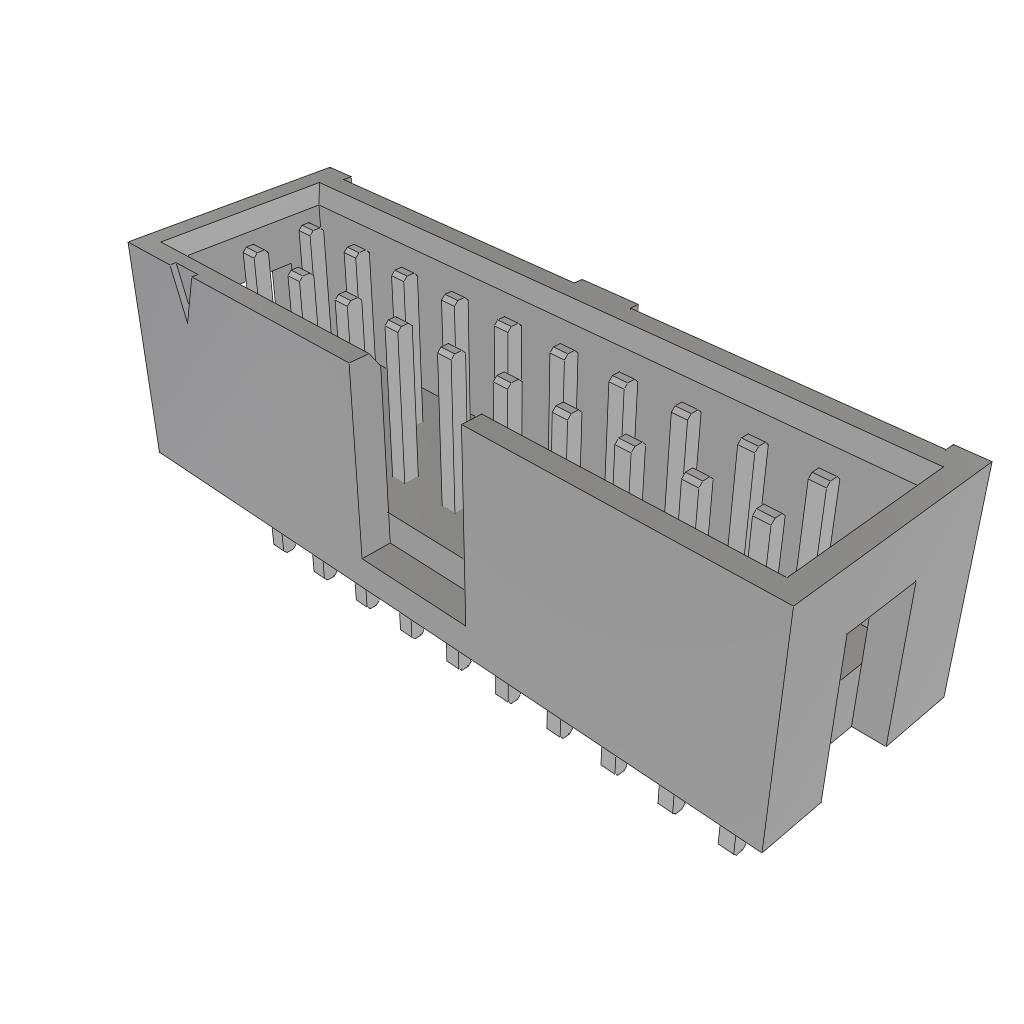

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HTSS Datasheet

HTSS-110-02-T-D

Active

Samtec Inc.

CONN HEADER VERT 20POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet HTSS Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTSS-110-02-T-D

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post [x]	0.165 in
Contact Length - Post [x]	4.19 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Natural
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	13.46 mm
Overall Contact Length	0.53 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

HTSS-110 Series

Part	Number of Positions Loaded	Features	Insulation Color	Insulation Material	Connector Type	Pitch - Mating	Pitch - Mating	Style	Contact Finish - Post	Contact Material	Material Flammability Rating	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Number of Rows	Fastening Type	Insulation Height [custom]	Insulation Height [custom]	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Length - Mating	Contact Length - Mating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded
Samtec Inc. HTSS-110-02-T-D	All	Keying Slot	Natural	Liquid Crystal Polymer (LCP)	Header	0.1 in	2.54 mm	Board to Board Cable	Tin	Phosphor Bronze	UL94 V-0	Shrouded - 4 Wall	2.54 mm	0.1 in	Square	20	0.165 in	4.19 mm	Male Pin	2	Push-Pull	0.35 in	8.89 mm	13.46 mm	0.53 in	Through Hole	6.35 mm	0.25 in	Solder	105 ░C	-55 °C
Samtec Inc. HTSS-110-05-S-D-RA	All	Keying Slot	Natural	Liquid Crystal Polymer (LCP)	Header	0.1 in	2.54 mm	Board to Board Cable	Tin	Phosphor Bronze	UL94 V-0	Shrouded - 4 Wall	2.54 mm	0.1 in	Square	20			Male Pin	2	Push-Pull					Through Hole Right Angle	6.35 mm	0.25 in	Solder	125 °C	-55 °C	0.23 in	5.84 mm	0.365 in	9.27 mm	Gold	30 Áin	0.76 Ám
Samtec Inc. HTSS-110-01-L-DV-P
Samtec Inc. HTSS-110-01-TM-DV	All	Keying Slot	Natural	Liquid Crystal Polymer (LCP)	Header	0.1 in	2.54 mm	Board to Board Cable	Tin	Phosphor Bronze	UL94 V-0	Shrouded - 4 Wall	2.54 mm	0.1 in	Square	20			Male Pin	2	Push-Pull	0.35 in	8.89 mm			Surface Mount	6.35 mm	0.25 in	Solder	105 ░C	-55 °C
Samtec Inc. HTSS-110-01-SS-DV-P-TR	All	Keying Slot Pick and Place	Natural	Liquid Crystal Polymer (LCP)	Header	0.1 in	2.54 mm	Board to Board Cable	Tin	Phosphor Bronze	UL94 V-0	Shrouded - 4 Wall	2.54 mm	0.1 in	Square	20			Male Pin	2	Push-Pull	0.35 in	8.89 mm			Surface Mount	6.35 mm	0.25 in	Solder	125 °C	-55 °C					Gold	30 Áin	0.76 Ám
Samtec Inc. HTSS-110-02-F-D	All	Keying Slot	Natural	Liquid Crystal Polymer (LCP)	Header	0.1 in	2.54 mm	Board to Board Cable	Tin	Phosphor Bronze	UL94 V-0	Shrouded - 4 Wall	2.54 mm	0.1 in	Square	20	0.165 in	4.19 mm	Male Pin	2	Push-Pull	0.35 in	8.89 mm	13.46 mm	0.53 in	Through Hole	6.35 mm	0.25 in	Solder	125 °C	-55 °C					Gold	3 µin	0.076 µm
Samtec Inc. HTSS-110-01-SM-DV-P-TR	All	Keying Slot Pick and Place	Natural	Liquid Crystal Polymer (LCP)	Header	0.1 in	2.54 mm	Board to Board Cable	Tin	Phosphor Bronze	UL94 V-0	Shrouded - 4 Wall	2.54 mm	0.1 in	Square	20			Male Pin	2	Push-Pull	0.35 in	8.89 mm			Surface Mount	6.35 mm	0.25 in	Solder	125 °C	-55 °C					Gold	30 Áin	0.76 Ám
Samtec Inc. HTSS-110-01-G-D-01		Keying Slot	Natural	Liquid Crystal Polymer (LCP)	Header	0.1 in	2.54 mm	Board to Board Cable	Gold	Phosphor Bronze	UL94 V-0	Shrouded - 4 Wall	2.54 mm	0.1 in	Square	20			Male Pin	2	Push-Pull	0.35 in	8.89 mm	12.19 mm	0.48 in	Through Hole	6.35 mm	0.25 in	Solder	125 °C	-55 °C	0.115 in	2.92 mm			Gold	10 çin	0.25 çm	3 µin	0.076 µm	19
Samtec Inc. HTSS-110-01-S-D	All	Keying Slot	Natural	Liquid Crystal Polymer (LCP)	Header	0.1 in	2.54 mm	Board to Board Cable	Tin	Phosphor Bronze	UL94 V-0	Shrouded - 4 Wall	2.54 mm	0.1 in	Square	20			Male Pin	2	Push-Pull	0.35 in	8.89 mm	12.19 mm	0.48 in	Through Hole	6.35 mm	0.25 in	Solder	125 °C	-55 °C	0.115 in	2.92 mm			Gold	30 Áin	0.76 Ám
Samtec Inc. HTSS-110-01-H-DV-P-TR	All	Keying Slot Pick and Place	Natural	Liquid Crystal Polymer (LCP)	Header	0.1 in	2.54 mm	Board to Board Cable	Gold	Phosphor Bronze	UL94 V-0	Shrouded - 4 Wall	2.54 mm	0.1 in	Square	20			Male Pin	2	Push-Pull	0.35 in	8.89 mm			Surface Mount	6.35 mm	0.25 in	Solder	125 °C	-55 °C					Gold	30 Áin	0.76 Ám	3 µin	0.076 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.70
		10	$ 2.35
		100	$ 2.10
		500	$ 1.75
		1000	$ 1.50
		5000	$ 1.33

Description

General part information

HTSS-110 Series

Connector Header Through Hole 20 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

HTSS Datasheet

Datasheet
