10340-C200-00

Active

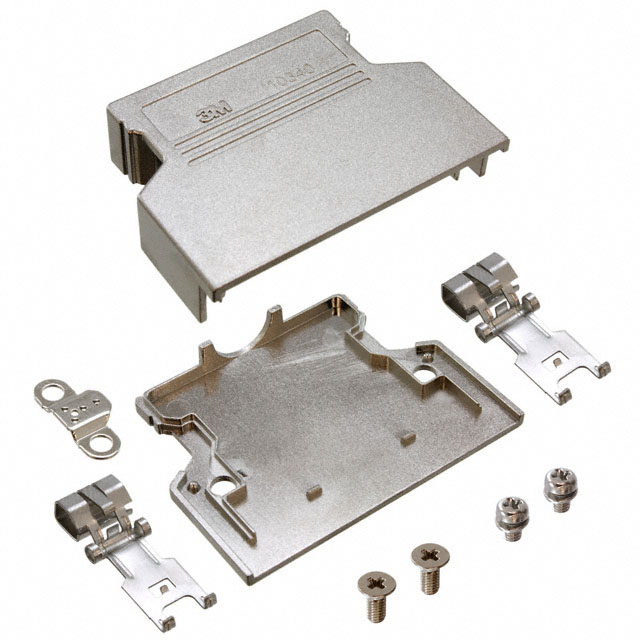

CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 40 POSITION CONNECTORS, 180°, ZINC ALLOY BODY

Search across all available documentation for this part.

Active

CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 40 POSITION CONNECTORS, 180°, ZINC ALLOY BODY

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10340-C200-00	10340 Series

	-	-
Accessory Type	Two Piece Backshell	Two Piece Backshell, Two Piece Backshell and Cover
Cable Exit	180 °	60 - 180 °
Cable Type	Round	Round, Flat
Color	Silver	Silver, Beige
Features	Latch Lock	Latch Lock
Hardware	-	Assembly Hardware, Gasket
Material	Zinc Alloy	Zinc Alloy, Metal, Metal, Zinc
Material	-	Plastic, Steel
Material	-	Metal
Number of Positions	40	40
Plating	Nickel	Nickel
Primary Material	Metal	Metal
Shielding	Shielded	Shielded

CONN BACKSHELL 40POS

Part	Cable Exit	Plating	Features	Material	Shielding	Color	Accessory Type	Number of Positions	Primary Material	Cable Type	Material [custom]	Material [custom]	Hardware
3M 10340-3281-000-9
3M 10340-A500-00	60 °	Nickel	Latch Lock	Metal, Zinc Alloy	Shielded	Silver	Two Piece Backshell	40	Metal	Round
3M 10340-C200-00	180 °	Nickel	Latch Lock	Zinc Alloy	Shielded	Silver	Two Piece Backshell	40	Metal	Round
3M 10340-3210-000	180 °	Nickel	Latch Lock		Shielded	Beige	Two Piece Backshell and Cover	40	Metal	Round	Plastic, Steel	Metal
3M 10340-1230-00	180 °	Nickel	Latch Lock	Metal, Zinc	Shielded	Silver	Two Piece Backshell	40	Metal	Flat			Assembly Hardware, Gasket
3M 10340-55F0-008								40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Two Piece Backshell Connector Silver 180° Shielded
