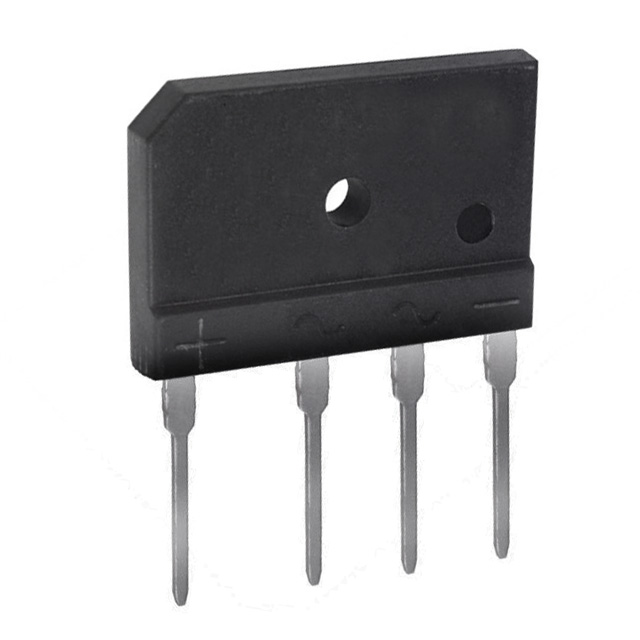

GBJ810-F
ActiveDiodes Inc
BRIDGE RECT 1PHASE 1KV 8A GBJ
Deep-Dive with AI
Search across all available documentation for this part.
GBJ810-F
ActiveDiodes Inc
BRIDGE RECT 1PHASE 1KV 8A GBJ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GBJ810-F |
|---|---|
| Current - Average Rectified (Io) | 8 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | 4-SIP, GBJ |
| Supplier Device Package | GBJ |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
| Voltage - Peak Reverse (Max) [Max] | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.97 | |
| 15 | $ 1.64 | |||
| 105 | $ 1.30 | |||
| 510 | $ 1.10 | |||
| 1005 | $ 0.94 | |||
| 2010 | $ 0.89 | |||
| 5010 | $ 0.86 | |||
| 10005 | $ 0.85 | |||
Description
General part information
GBJ810 Series
bridge rectifier
