ANR58-UL-12A
ActiveOptiFuse

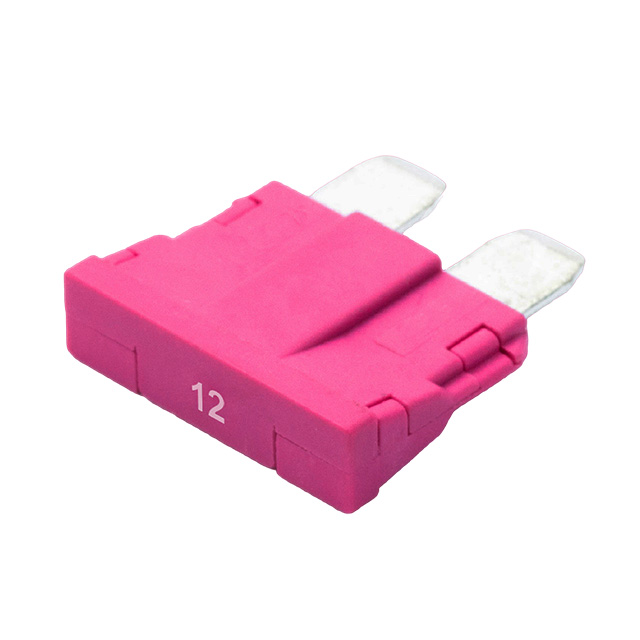

FUSE AUTO 12A 250VAC 58VDC BLADE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANR58-UL-12A
ActiveOptiFuse
FUSE AUTO 12A 250VAC 58VDC BLADE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANR58-UL-12A | ANR58 Series |
|---|---|---|
| Approval Agency | cURus, UL 248 | cURus, UL 248 |
| Breaking Capacity @ Rated Voltage | 1 kA | 1 kA |
| Color | Light Pink | Light Pink, Dark Blue, Clear, Tan, Blue, Yellow, Violet, Gray, Pink, Black, Light Green |
| Current Rating (Amps) | 12 A | 0.5 - 40 A |
| DC Cold Resistance | - | 0.004 - 16 Ohms |
| Fuse Type | Automotive | Automotive |
| Melting I˛t | - | 9.6 - 3200 |
| Melting I²t | - | 0.3 - 813 |
| Mounting Type | Requires Holder | Requires Holder |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | ATO, Blade, ATC | ATO, Blade, ATC |
| Response Time | Fast Blow | Fast Blow |
| Size / Dimension [x] | 0.748 in | 0.748 in |
| Size / Dimension [x] | 19 mm | 19 mm |
| Size / Dimension [y] | 0.197 " | 0.197 " |
| Size / Dimension [y] | 5 mm | 5 mm |
| Size / Dimension [z] | 0.531 in | 0.531 in |
| Size / Dimension [z] | 13.5 mm | 13.5 mm |
| Voltage Rating - DC | 58 VDC | 58 VDC |
ANR58 Series
FUSE AUTO 12A 250VAC 58VDC BLADE
| Part | Package / Case | Response Time | Color | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Approval Agency | Mounting Type | Fuse Type | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Melting I²t | DC Cold Resistance | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse ANR58-UL-12A | ATC, ATO, Blade | Fast Blow | Light Pink | 0.531 in | 0.748 in | 19 mm | 0.197 " | 13.5 mm | 5 mm | cURus, UL 248 | Requires Holder | Automotive | 58 VDC | 125 °C | -40 °C | 1 kA | 12 A | |||
OptiFuse ANR58-UL-500MA | ATC, ATO, Blade | Fast Blow | Dark Blue | 0.531 in | 0.748 in | 19 mm | 0.197 " | 13.5 mm | 5 mm | cURus, UL 248 | Requires Holder | Automotive | 58 VDC | 125 °C | -40 °C | 1 kA | 0.5 A | 0.3 | 0.29 Ohms | |
OptiFuse ANR58-UL-25A | ATC, ATO, Blade | Fast Blow | Clear | 0.531 in | 0.748 in | 19 mm | 0.197 " | 13.5 mm | 5 mm | cURus, UL 248 | Requires Holder | Automotive | 58 VDC | 125 °C | -40 °C | 1 kA | 25 A | 813 | 1.9 Ohms | |
OptiFuse ANR58-UL-5A | ATC, ATO, Blade | Fast Blow | Tan | 0.531 in | 0.748 in | 19 mm | 0.197 " | 13.5 mm | 5 mm | cURus, UL 248 | Requires Holder | Automotive | 58 VDC | 125 °C | -40 °C | 1 kA | 5 A | 62.5 | 16 mOhms | |
OptiFuse ANR58-UL-15A | ATC, ATO, Blade | Fast Blow | Blue | 0.531 in | 0.748 in | 19 mm | 0.197 " | 13.5 mm | 5 mm | cURus, UL 248 | Requires Holder | Automotive | 58 VDC | 125 °C | -40 °C | 1 kA | 15 A | 270 | 0.004 Ohms | |
OptiFuse ANR58-UL-20A | ATC, ATO, Blade | Fast Blow | Yellow | 0.531 in | 0.748 in | 19 mm | 0.197 " | 13.5 mm | 5 mm | cURus, UL 248 | Requires Holder | Automotive | 58 VDC | 125 °C | -40 °C | 1 kA | 20 A | 360 | 3 mOhms | |
OptiFuse ANR58-UL-40A | ATC, ATO, Blade | Fast Blow | 0.531 in | 0.748 in | 19 mm | 0.197 " | 13.5 mm | 5 mm | cURus, UL 248 | Requires Holder | Automotive | 58 VDC | 125 °C | -40 °C | 1 kA | 40 A | 1.25 Ohms | 3200 | ||
OptiFuse ANR58-UL-3A | ATC, ATO, Blade | Fast Blow | Violet | 0.531 in | 0.748 in | 19 mm | 0.197 " | 13.5 mm | 5 mm | cURus, UL 248 | Requires Holder | Automotive | 58 VDC | 125 °C | -40 °C | 1 kA | 3 A | 0.03 Ohms | ||
OptiFuse ANR58-UL-2A | ATC, ATO, Blade | Fast Blow | Gray | 0.531 in | 0.748 in | 19 mm | 0.197 " | 13.5 mm | 5 mm | cURus, UL 248 | Requires Holder | Automotive | 58 VDC | 125 °C | -40 °C | 1 kA | 2 A | 9.6 | 0.043 Ohms | |
OptiFuse ANR58-UL-4A | ATC, ATO, Blade | Fast Blow | Pink | 0.531 in | 0.748 in | 19 mm | 0.197 " | 13.5 mm | 5 mm | cURus, UL 248 | Requires Holder | Automotive | 58 VDC | 125 °C | -40 °C | 1 kA | 4 A | 36.8 | 0.022 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.52 | |
| 10 | $ 2.46 | |||
| 25 | $ 2.38 | |||
| 50 | $ 2.01 | |||
| 100 | $ 1.65 | |||
| 250 | $ 1.49 | |||
| 500 | $ 1.25 | |||
| 1000 | $ 1.09 | |||
Description
General part information
ANR58 Series
12 A AC 58 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
