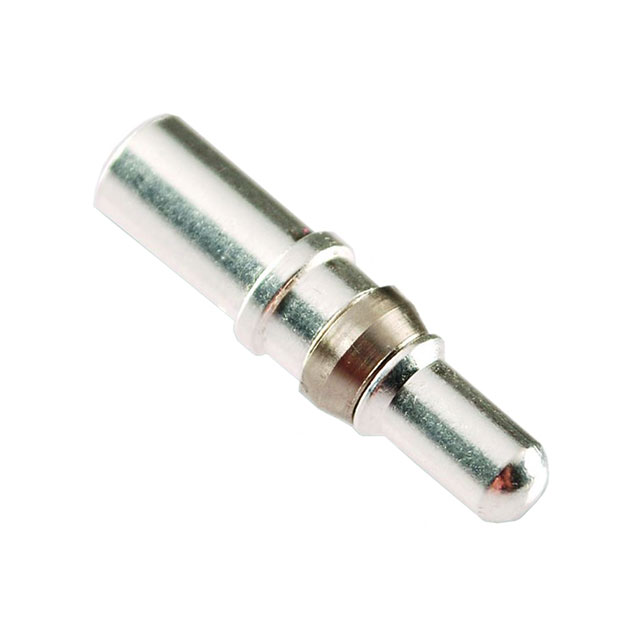

MP10A23S
ActiveAmphenol Sine Systems Corp
CONTACT PIN 10-12AWG CRIMP SLVR
Deep-Dive with AI
Search across all available documentation for this part.
MP10A23S
ActiveAmphenol Sine Systems Corp
CONTACT PIN 10-12AWG CRIMP SLVR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP10A23S |
|---|---|
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Size | 8 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Termination Finish | Copper Alloy |
| Type | Signal, Machined |
| Wire Gauge or Range - AWG [Max] | 12 AWG |
| Wire Gauge or Range - AWG [Min] | 10 AWG |
| Wire Gauge or Range - mm² [Max] | 6 mm² |
| Wire Gauge or Range - mm² [Min] | 3 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.63 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.36 | |||
| 50 | $ 1.33 | |||
| 100 | $ 1.27 | |||
| 250 | $ 1.15 | |||
| 500 | $ 1.06 | |||
| 1000 | $ 0.91 | |||
| 2500 | $ 0.85 | |||
Description
General part information
MP10A23 Series
Pin Contact 10-12 AWG Size 8 Crimp Silver
