TB8S-G

Active

Comchip Technology

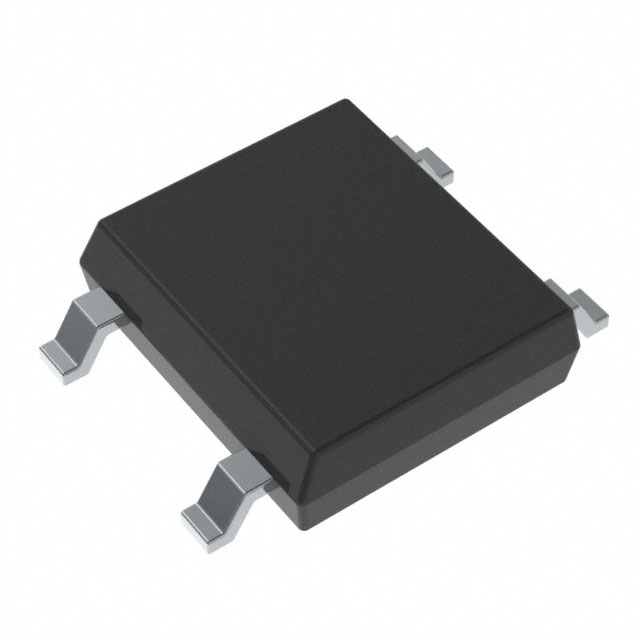

BRIDGE RECT 1P 800V 800MA 4TBS

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1P 800V 800MA 4TBS

Technical Specifications

Parameters and characteristics for this part

Specification	TB8S-G

Current - Average Rectified (Io)	800 mA
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, Gull Wing
Supplier Device Package	TBS
Technology	Standard
Voltage - Forward (Vf) (Max) @ If [Max]	950 mV
Voltage - Peak Reverse (Max) [Max]	800 V

BRIDGE RECT 1P 800V 800MA 4TBS

Part	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Diode Type	Mounting Type	Technology	Supplier Device Package	Package / Case
Comchip Technology TB8S-G	800 V	950 mV	-55 °C	150 °C	10 µA	800 mA	Single Phase	Surface Mount	Standard	TBS	4-SMD, Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 800 V Surface Mount TBS
