Q-1Z02T00012.5M

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JCK-JCK 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Z02T00012.5M

Active

Amphenol Custom Cable

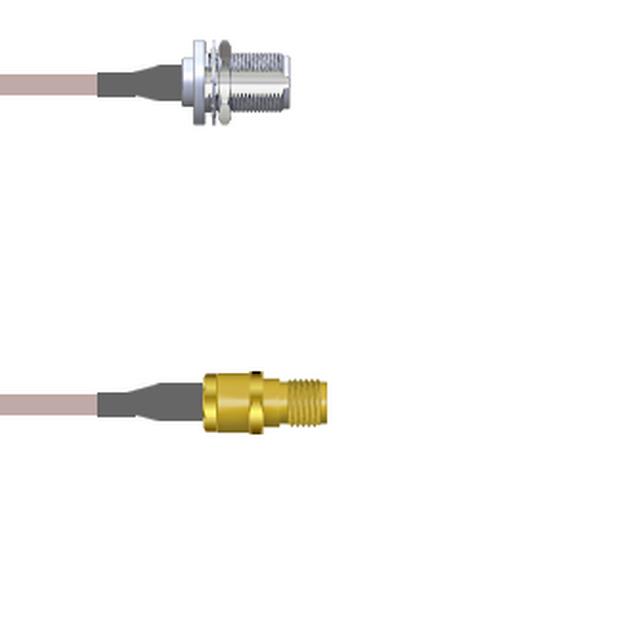

CBL ASSY SMA-NTYPE JCK-JCK 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Z02T00012.5M

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1Z02T0 Series

Part	2nd Connector Mounting Type	Color	Length	Length	Style	Frequency - Max [Max]	2nd Connector Mounting Feature	1st Contact Gender	1st Connector	Cable Type	2nd Connector	Features	1st Connector Mounting Type	Overall Impedance	2nd Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1Z02T0001012i	Panel Mount	Copper	12 "	304.8 mm	SMA to N-Type	11 GHz	Bulkhead - Front Side Nut	Female	SMA Jack	RG-178	N-Type Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-1Z02T0001024i	Panel Mount	Copper	24 "	609.6 mm	SMA to N-Type	11 GHz	Bulkhead - Front Side Nut	Female	SMA Jack	RG-178	N-Type Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-1Z02T00012.5M	Panel Mount	Copper	98.4 in	2.5 m	SMA to N-Type	11 GHz	Bulkhead - Front Side Nut	Female	SMA Jack	RG-178	N-Type Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Female	8.2 '
Amphenol Custom Cable Q-1Z02T0001001M	Panel Mount	Copper	39.4 in	1 m	SMA to N-Type	11 GHz	Bulkhead - Front Side Nut	Female	SMA Jack	RG-178	N-Type Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Female	3.3 ft
Amphenol Custom Cable Q-1Z02T0001.25M	Panel Mount	Copper			SMA to N-Type	11 GHz	Bulkhead - Front Side Nut	Female	SMA Jack	RG-178	N-Type Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Female		9.843 "	250 mm
Amphenol Custom Cable Q-1Z02T00011.5M	Panel Mount	Copper	59.1 in	1.5 m	SMA to N-Type	11 GHz	Bulkhead - Front Side Nut	Female	SMA Jack	RG-178	N-Type Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Female	4.9 ft
Amphenol Custom Cable Q-1Z02T0001003i	Panel Mount	Copper	3 in	76.2 mm	SMA to N-Type	11 GHz	Bulkhead - Front Side Nut	Female	SMA Jack	RG-178	N-Type Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-1Z02T0001084i	Panel Mount	Copper	84 in	2.1 m	SMA to N-Type	11 GHz	Bulkhead - Front Side Nut	Female	SMA Jack	RG-178	N-Type Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Female	7 ft
Amphenol Custom Cable Q-1Z02T0001009i	Panel Mount	Copper	9 "	228.6 mm	SMA to N-Type	11 GHz	Bulkhead - Front Side Nut	Female	SMA Jack	RG-178	N-Type Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Female
Amphenol Custom Cable Q-1Z02T0001006i	Panel Mount	Copper	6 in	152.4 mm	SMA to N-Type	11 GHz	Bulkhead - Front Side Nut	Female	SMA Jack	RG-178	N-Type Jack	Shielded	Free Hanging (In-Line)	50 Ohms	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 93.52
		25	$ 87.14
		50	$ 80.76
		100	$ 75.30
		250	$ 70.75

Description

General part information

Q-1Z02T0 Series

Cable Assembly Coaxial SMA to N-Type RG-178 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
