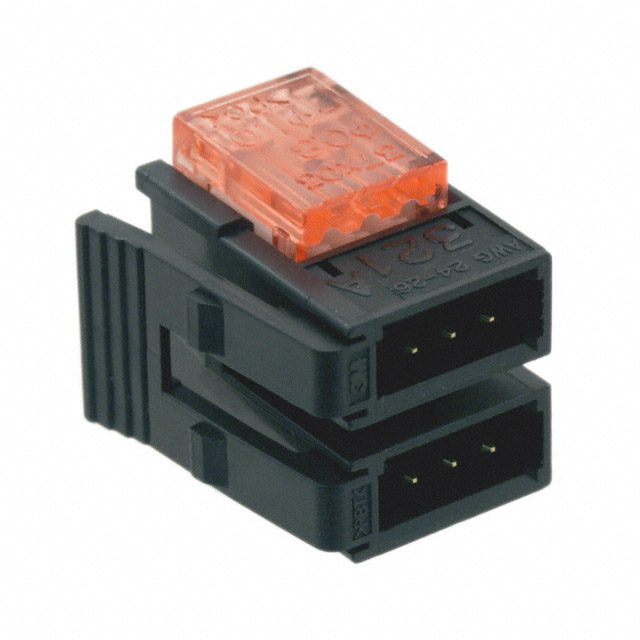

37106-3101-0W0 FL
Active3M (TC)
CONN PLUG 6POS IDC 24-26AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
37106-3101-0W0 FL
Active3M (TC)
CONN PLUG 6POS IDC 24-26AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 37106-3101-0W0 FL |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 6.5 mm |
| Row Spacing | 0.256 in |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 24 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.87 | |
| 10 | $ 4.42 | |||
| 25 | $ 4.19 | |||
| 50 | $ 4.09 | |||
| 100 | $ 3.90 | |||
| 300 | $ 3.41 | |||
| 500 | $ 3.31 | |||
| 1000 | $ 2.83 | |||
| 2500 | $ 2.63 | |||
Description
General part information
37106 Series
6 Position Rectangular Plug Connector IDC Gold 24-26 AWG
