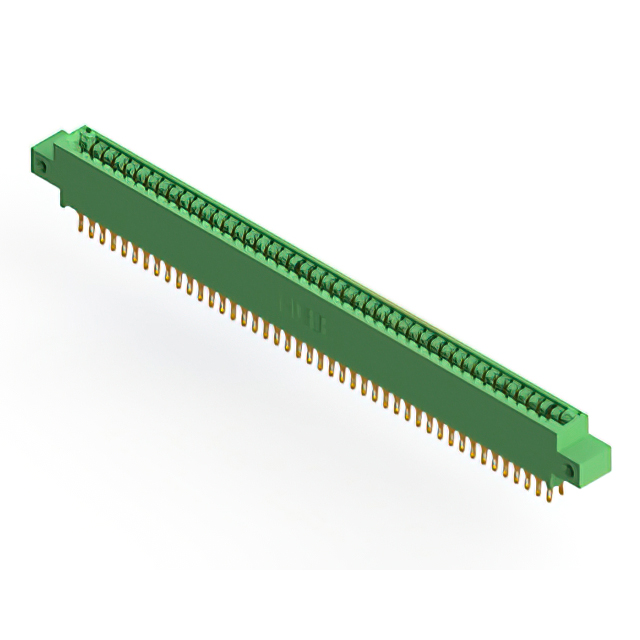

846-088-555-812

Active

EDAC Inc.

CONN EDGE DUAL FMALE 88POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-088-555-812

Active

EDAC Inc.

CONN EDGE DUAL FMALE 88POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-088-555-812

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	88
Number of Positions/Bay/Row [custom]	44
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

846-088 Series

...

Part	Number of Rows	Number of Positions/Bay/Row [custom]	Termination Rows	Contact Finish	Card Type	Termination	Contact Type	Mounting Type	Pitch [x]	Pitch [x]	Contact Material	Color	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Read Out	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Gender	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 846-088-556-208	2	44	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Board Edge Straddle Mount	0.125 in	3.18 mm	Copper Alloy	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	4-40 Flush Mount Threaded Insert Top Opening	Dual	Card Extender	88	10 Áin	0.25 Ám	Female
EDAC Inc. 846-088-540-803	2	44	2	Gold	Non Specified - Dual Edge	Wire Wrap	Cantilever	Through Hole	0.125 in	3.18 mm	Copper Alloy	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Floating Bobbin Top Mount Opening	Dual		88	10 Áin	0.25 Ám	Female	2.95 mm	0.116 in
EDAC Inc. 846-088-522-202	2	44	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Through Hole	0.125 in	3.18 mm	Copper Alloy	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Flush Mount Top Opening Unthreaded	Dual		88	10 Áin	0.25 Ám	Female	3.25 mm	0.128 "
EDAC Inc. 846-088-541-202	2	44	2	Gold	Non Specified - Dual Edge	Wire Wrap	Cantilever	Through Hole	0.125 in	3.18 mm	Copper Alloy	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Flush Mount Top Opening Unthreaded	Dual		88	10 Áin	0.25 Ám	Female	3.25 mm	0.128 "
EDAC Inc. 846-088-559-212	2	44	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Through Hole Right Angle	0.125 in	3.18 mm	Copper Alloy	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Flush Mount Side Opening Unthreaded	Dual		88	10 Áin	0.25 Ám	Female	3.25 mm	0.128 "
EDAC Inc. 846-088-559-804	2	44	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Through Hole Right Angle	0.125 in	3.18 mm	Copper Alloy	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Top Mount Opening Unthreaded	Dual		88	10 Áin	0.25 Ám	Female	3.96 mm	0.156 in
EDAC Inc. 846-088-560-802	2	44	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Board Edge Straddle Mount	0.125 in	3.18 mm	Copper Alloy	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C		Dual	Card Extender	88	10 Áin	0.25 Ám	Female			3.25 mm	0.128 in
EDAC Inc. 846-088-555-802	2	44	2	Gold	Non Specified - Dual Edge	Solder Eyelet(s)	Cantilever	Board Edge Straddle Mount	0.125 in	3.18 mm	Copper Alloy	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C		Dual	Card Extender	88	10 Áin	0.25 Ám	Female			3.25 mm	0.128 in
EDAC Inc. 846-088-555-812	2	44	2	Gold	Non Specified - Dual Edge	Solder Eyelet(s)	Cantilever	Board Edge Straddle Mount	0.125 in	3.18 mm	Copper Alloy	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Side Mount Opening Unthreaded	Dual	Card Extender	88	10 Áin	0.25 Ám	Female			3.25 mm	0.128 in
EDAC Inc. 846-088-520-207	2	44	2	Gold	Non Specified - Dual Edge	Solder	Cantilever	Through Hole	0.125 in	3.18 mm	Copper Alloy	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Flush Mount M3 Threaded Insert Top Opening	Dual		88	10 Áin	0.25 Ám	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 109.51

Description

General part information

846-088 Series

88 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
