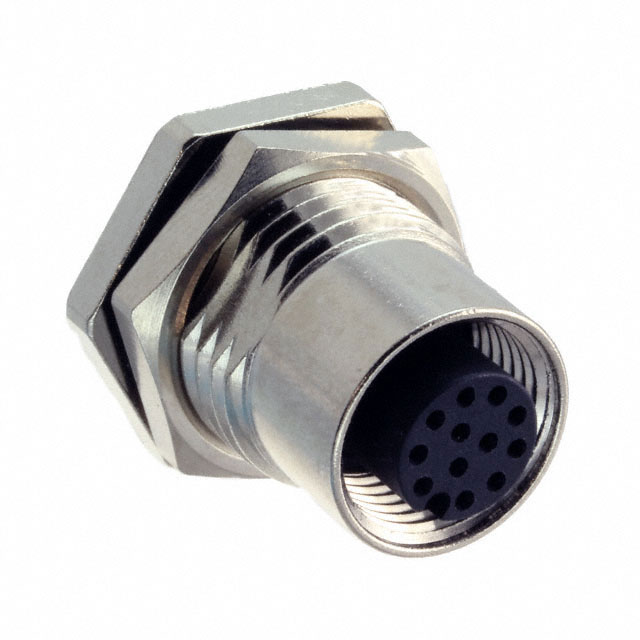

860-012-213R001

Active

MH Connectors

CONN PLUG FMALE 12POS SOLDER

Search across all available documentation for this part.

Active

MH Connectors

CONN PLUG FMALE 12POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	860-012-213R001

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating (Amps)	1.5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-12
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Mounting Type	Current Rating (Amps)	Orientation	Connector Type	Color	Voltage Rating	Shielding	Material Flammability Rating	Shell Size - Insert	Shell Finish	Contact Finish Thickness - Mating	Insert Material	Termination	Number of Positions	Mounting Feature	Shell Material	Contact Material	Primary Material	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
MH Connectors 860-012-213R001	85 °C	-40 °C	Gold	Panel Mount Through Hole	1.5 A	A	Female Sockets Plug	Silver	30 VDC	Shielded	UL94 V-0	M12-12	Nickel	Flash	Polybutylene Terephthalate (PBT)	Solder	12	Bulkhead - Front Side Nut	Brass	Brass	Metal	IP67 - Dust Tight Waterproof
MH Connectors 860-012-113R001	85 °C	-40 °C	Gold	Panel Mount Through Hole	1.5 A	A	Male Pins Receptacle	Silver	30 VDC	Shielded	UL94 V-0	M12-12	Nickel	Flash	Polybutylene Terephthalate (PBT)	Solder	12	Bulkhead - Front Side Nut	Brass	Brass	Metal	IP67 - Dust Tight Waterproof	0.419 in	10.64 mm
MH Connectors 860-012-113R004	85 °C	-40 °C	Gold	Panel Mount Through Hole	1.5 A	A	Male Pins Receptacle	Silver	30 VDC	Shielded	UL94 V-0	M12-12	Nickel		Polybutylene Terephthalate (PBT)	Solder	12	Bulkhead - Front Side Nut	Brass	Brass	Metal	IP67 - Dust Tight Waterproof	0.419 in	10.64 mm	10 çin	0.25 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 14.56

General part information

12 Position Circular Connector Plug, Female Sockets Solder
