AB-FA01230-19700-8A1

Active

American Bright Optoelectronics Corporation

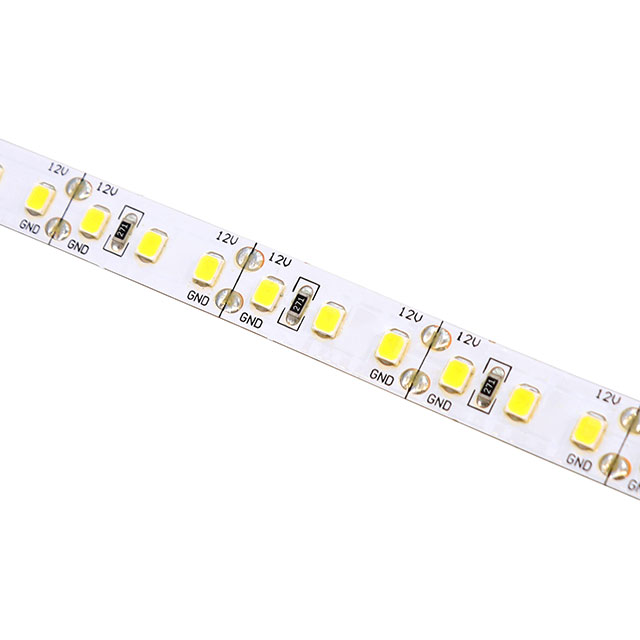

LED MOD AB-FA WH LNR STRP 3000K

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED MOD AB-FA WH LNR STRP 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	AB-FA01230-19700-8A1

Color	White, Warm
Configuration	Linear Light Strip, Flexible
CRI (Color Rendering Index)	80
Current - Test	660 mA
Features	IP20
Height [z]	1.6 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	91 lm/W
Luminous Flux @ Current/Temperature	720 lm
Size / Dimension [custom]	25 mm
Size / Dimension [x]	5000 mm
Size / Dimension [y]	8 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	12 V

LED MOD AB-FA WH LNR STRP 3000K

Part	Viewing Angle	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [custom]	Size / Dimension [x]	Height [z]	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Configuration	Type	Current - Test	Voltage - Forward (Vf) (Typ)	Features	Color	Lens Type
American Bright Optoelectronics Corporation AB-FA01230-19700-8A1	120 °	720 lm	8 mm	25 mm	5000 mm	1.6 mm	80	91 lm/W	Flexible, Linear Light Strip	LED Module	660 mA	12 V	IP20	Warm, White	Flat

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module AB-FA White, Warm Linear Light Strip, Flexible

Technical documentation and resources

No documents available
