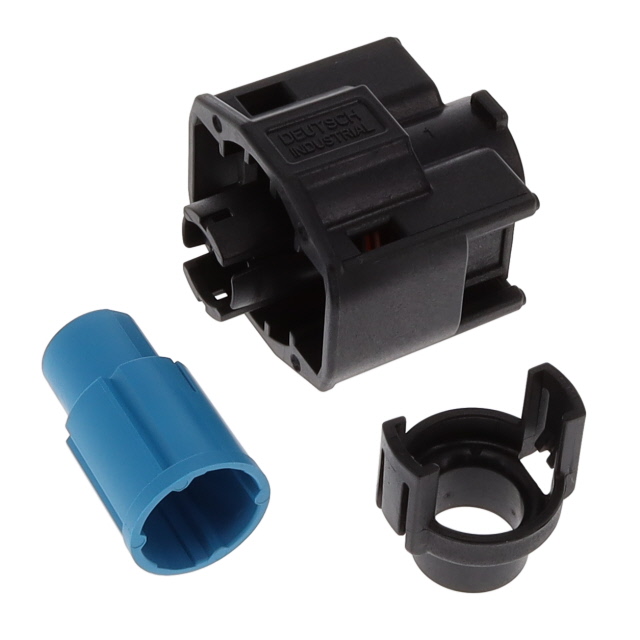

DTSK06-1-08SB
ActiveTE Connectivity Raychem Cable Protection
CONN PLG HSG MALE 1POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DTSK06-1-08SB
ActiveTE Connectivity Raychem Cable Protection
CONN PLG HSG MALE 1POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DTSK06-1-08SB |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 8 Power |
| Contact Type | Crimp |
| Fastening Type | Latch Lock |
| Features | Cap (Cover) |
| Housing Color | Black |
| Ingress Protection | IP6K9K, IP68 |
| Insert Material | Glass Filled, Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | B |
| Shell Material | Nylon 4/6, Glass Filled, Polyamide (PA46) |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.31 | |
| 10 | $ 10.91 | |||
| 25 | $ 10.49 | |||
| 50 | $ 10.07 | |||
| 100 | $ 9.51 | |||
| 250 | $ 8.67 | |||
| 500 | $ 8.11 | |||
| 1000 | $ 7.44 | |||
Description
General part information
DTSK06 Series
1 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Cap (Cover)
