HW-10-08-L-D-280-SM

Active

Samtec Inc.

CONN HDR 20POS 0.1 STACK SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHW Datasheet HW Series Other Related Documents 01 +1

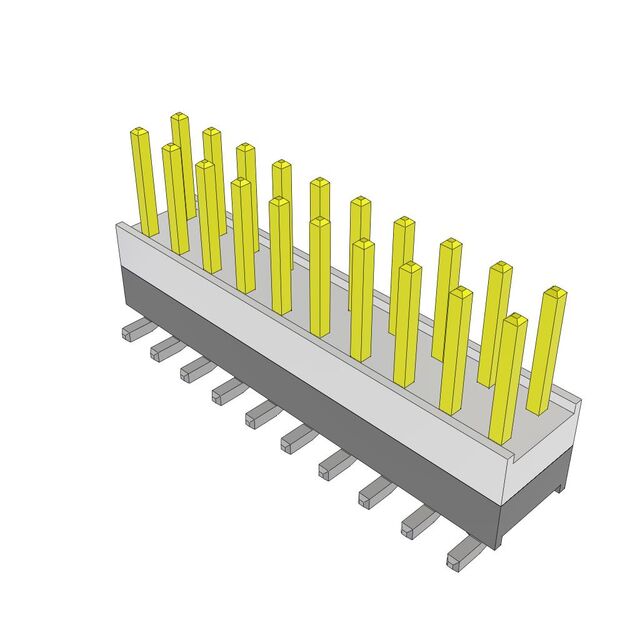

HW-10-08-L-D-280-SM

Active

Samtec Inc.

CONN HDR 20POS 0.1 STACK SMD

Deep-Dive with AI

DocumentsHW Datasheet HW Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-10-08-L-D-280-SM

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	11.811 mm
Length - Overall Pin	0.465 in
Length - Post (Mating) [x]	4.699 mm
Length - Post (Mating) [x]	0.185 in
Length - Stack Height [x]	7.112 mm
Length - Stack Height [x]	0.28 in
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

HW-10-08 Series

Part	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin	Length - Overall Pin	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Termination	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Row Spacing [x]	Row Spacing	Color	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail [x]	Length - Tail [x]
Samtec Inc. HW-10-08-L-D-345-SM	Gold	3.048 mm	0.12 in	11.811 mm	0.465 in	2.54 mm	0.1 in	20	2	Solder	Surface Mount	0.25 Ám	10 Áin	0.1 in	2.54 mm	Black
Samtec Inc. HW-10-08-L-D-300-SM	Gold	4.191 mm	0.165 in	11.811 mm	0.465 in	2.54 mm	0.1 in	20	2	Solder	Surface Mount	0.25 Ám	10 Áin	0.1 in	2.54 mm	Black	0.3 in	7.62 mm
Samtec Inc. HW-10-08-T-D-250-SM	Tin	5.791 mm	0.215 in	11.811 mm	0.465 in	2.54 mm	0.1 in	20	2	Solder	Surface Mount			0.1 in	2.54 mm	Black	0.25 in	6.35 mm
Samtec Inc. HW-10-08-L-D-280-SM	Gold	4.699 mm	0.185 in	11.811 mm	0.465 in	2.54 mm	0.1 in	20	2	Solder	Surface Mount	0.25 Ám	10 Áin	0.1 in	2.54 mm	Black	0.28 in	7.112 mm
Samtec Inc. HW-10-08-F-D-340-SM	Gold	3.175 mm	0.125 in	11.811 mm	0.465 in	2.54 mm	0.1 in	20	2	Solder	Surface Mount	0.076 Ám	3 Áin	0.1 in	2.54 mm	Black	0.34 in	8.636 mm
Samtec Inc. HW-10-08-G-D-350-SM	Gold	2.921 mm	0.115 in	11.811 mm	0.465 in	2.54 mm	0.1 in	20	2	Solder	Surface Mount	0.25 Ám	10 Áin	0.1 in	2.54 mm	Black	0.35 in	8.89 mm
Samtec Inc. HW-10-08-T-D-310-SM	Tin	3.937 mm	0.155 in	11.811 mm	0.465 in	2.54 mm	0.1 in	20	2	Solder	Surface Mount			0.1 in	2.54 mm	Black	0.31 in	7.874 mm
Samtec Inc. HW-10-08-L-D-200-100	Gold	5.842 mm	0.23 in	13.462 mm	0.53 in	2.54 mm	0.1 in	20	2	Solder	Through Hole	0.25 Ám	10 Áin	0.1 in	2.54 mm	Black			0.1 "	2.54 mm
Samtec Inc. HW-10-08-S-D-350-SM-LC	Gold	2.921 mm	0.115 in	11.811 mm	0.465 in	2.54 mm	0.1 in	20	2	Solder	Surface Mount	0.76 µm	30 µin	0.1 in	2.54 mm	Black	0.35 in	8.89 mm
Samtec Inc. HW-10-08-S-D-350-SM-A	Gold	2.921 mm	0.115 in	11.811 mm	0.465 in	2.54 mm	0.1 in	20	2	Solder	Surface Mount	0.76 µm	30 µin	0.1 in	2.54 mm	Black	0.35 in	8.89 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	22	$ 3.43
