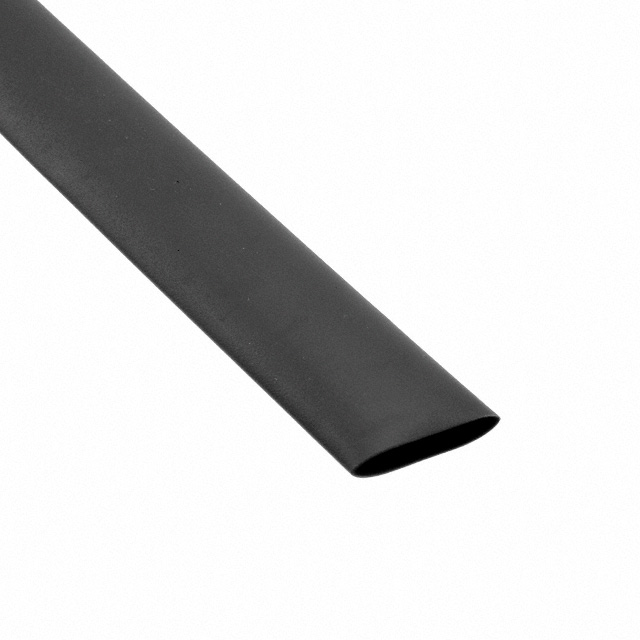

Q2-Z-1/2-01-QB48IN-5

Active

Qualtek

HEATSHRINK 1/2"-48" BLACK 1=1PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 1/2"-48" BLACK 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-Z-1/2-01-QB48IN-5

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.25 in
Inner Diameter - Recovered [diameter]	6.35 mm
Inner Diameter - Supplied [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	0.5 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.66 mm
Recovered Wall Thickness	0.026 "
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Color	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Features	Shrinkage Ratio	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Type	Length [x]	Length [x]	Length	Length	Length	Shelf Life Start
Qualtek Q2-Z-1/2-01-QB48IN-5	Black	70 °C	0.25 in	6.35 mm	-55 °C	125 °C	-50 °F -10 °C	40 °C	Flame Retardant	2 to 1	Polyolefin (PO)	12.7 mm	0.5 in	0.66 mm	0.026 "	144 Months	Tubing Flexible	1.22 m	4 ft
Qualtek Q2-Z-1/2-01-QB6IN-14	Black	70 °C	0.25 in	6.35 mm	-55 °C	125 °C	-50 °F -10 °C	40 °C	Flame Retardant	2 to 1	Polyolefin (PO)	12.7 mm	0.5 in	0.66 mm	0.026 "	144 Months	Tubing Flexible			152.4 mm	6 "	0.5 '
Qualtek Q2-Z-1/2-01-MS100FT	Black	70 °C	0.25 in	6.35 mm	-55 °C	125 °C	-50 °F -10 °C	40 °C	Flame Retardant	2 to 1	Polyolefin (PO)	12.7 mm	0.5 in	0.66 mm	0.026 "	144 Months	Tubing Flexible	30.5 m	100 ft				Date of Manufacture
Qualtek Q2-Z-1/2-01-SS200FT	Black	70 °C	0.25 in	6.35 mm	-55 °C	125 °C	-50 °F -10 °C	40 °C	Flame Retardant	2 to 1	Polyolefin (PO)	12.7 mm	0.5 in	0.66 mm	0.026 "	144 Months	Tubing Flexible	61 m	200 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.500" (12.70mm) 2 to 1 Black 4.00' (1.22m)
