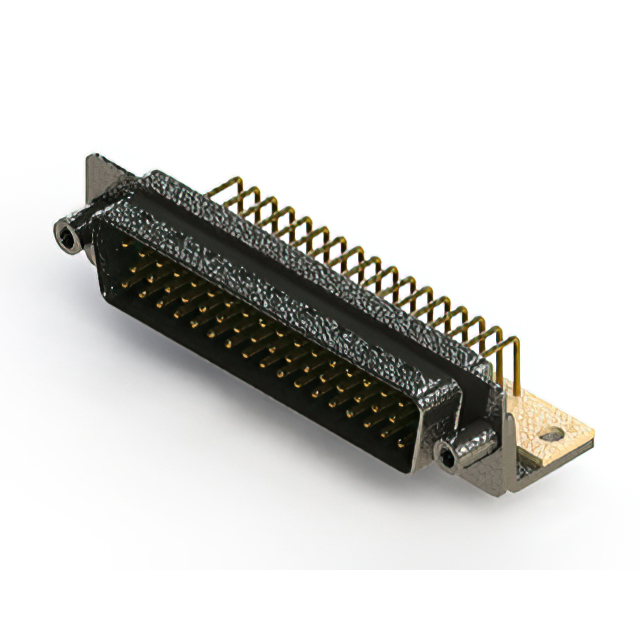

621-M50-260-GN6

Active

EDAC Inc.

621M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

621-M50-260-GN6

Active

EDAC Inc.

621M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	621-M50-260-GN6

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Green
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5
Termination	Solder

621-M50 Series

...

Part	Mounting Type	Number of Positions	Contact Material	Flange Feature	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish	Backset Spacing	Backset Spacing	Connector Style	Termination	Color	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Features	Material Flammability Rating	Shell Size, Connector Layout	Dielectric Material	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 621-M50-660-WT4	Board Edge Right Angle Through Hole	50	Copper Alloy	Housing/Shell (4-40)	5 A	-55 °C	125 °C	3	Gold	0.283 in	7.2 mm	D-Sub	Solder	White	Male Pins Plug	0.76 Ám	30 Áin	Signal	Grounding Indents Mounting Brackets Shielded	UL94 V-0	5	Polyamide (PA6T) Nylon 6T
EDAC Inc. 621-M50-660-GN2	Board Edge Right Angle Through Hole	50	Copper Alloy	Housing/Shell (4-40)	5 A	-55 °C	125 °C	3	Gold	0.283 in	7.2 mm	D-Sub	Solder	Green	Male Pins Plug	0.76 Ám	30 Áin	Signal	Grounding Indents Shielded	UL94 V-0	5	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel
EDAC Inc. 621-M50-360-GN2	Board Edge Right Angle Through Hole	50	Copper Alloy	Housing/Shell (4-40)	5 A	-55 °C	125 °C	3	Gold	0.283 in	7.2 mm	D-Sub	Solder	Green	Male Pins Plug	0.38 µm	15 µin	Signal	Grounding Indents Shielded	UL94 V-0	5	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel
EDAC Inc. 621-M50-260-GT2	Board Edge Right Angle Through Hole	50	Copper Alloy	Housing/Shell (4-40)	5 A	-55 °C	125 °C	3	Gold	0.283 in	7.2 mm	D-Sub	Solder	Green	Male Pins Plug			Signal	Grounding Indents Shielded	UL94 V-0	5	Polyamide (PA6T) Nylon 6T		Flash
EDAC Inc. 621-M50-260-WT5	Board Edge Right Angle Through Hole	50	Copper Alloy	4-40	5 A	-55 °C	125 °C	3	Gold	0.283 in	7.2 mm	D-Sub	Solder	White	Male Pins Plug			Signal	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	5	Polyamide (PA6T) Nylon 6T		Flash
EDAC Inc. 621-M50-660-LN5	Board Edge Right Angle Through Hole	50	Copper Alloy	4-40	5 A	-55 °C	125 °C	3	Gold	0.283 in	7.2 mm	D-Sub	Solder	Blue	Male Pins Plug	0.76 Ám	30 Áin	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	5	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel
EDAC Inc. 621-M50-360-WN3	Board Edge Right Angle Through Hole	50	Copper Alloy	Housing/Shell (4-40)	5 A	-55 °C	125 °C	3	Gold	0.283 in	7.2 mm	D-Sub	Solder	White	Male Pins Plug	0.38 µm	15 µin	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	5	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel
EDAC Inc. 621-M50-360-WN5	Board Edge Right Angle Through Hole	50	Copper Alloy	4-40	5 A	-55 °C	125 °C	3	Gold	0.283 in	7.2 mm	D-Sub	Solder	White	Male Pins Plug	0.38 µm	15 µin	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	5	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel
EDAC Inc. 621-M50-360-WT5	Board Edge Right Angle Through Hole	50	Copper Alloy	4-40	5 A	-55 °C	125 °C	3	Gold	0.283 in	7.2 mm	D-Sub	Solder	White	Male Pins Plug	0.38 µm	15 µin	Signal	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	5	Polyamide (PA6T) Nylon 6T
EDAC Inc. 621-M50-260-GN6	Board Edge Right Angle Through Hole	50	Copper Alloy	Housing/Shell (4-40)	5 A	-55 °C	125 °C	3	Gold	0.283 in	7.2 mm	D-Sub	Solder	Green	Male Pins Plug			Signal	Board Lock Mounting Brackets Shielded	UL94 V-0	5	Polyamide (PA6T) Nylon 6T	Nickel Plated Steel	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 13.26

Description

General part information

621-M50 Series

50 Position D-Sub Plug, Male Pins Connector
