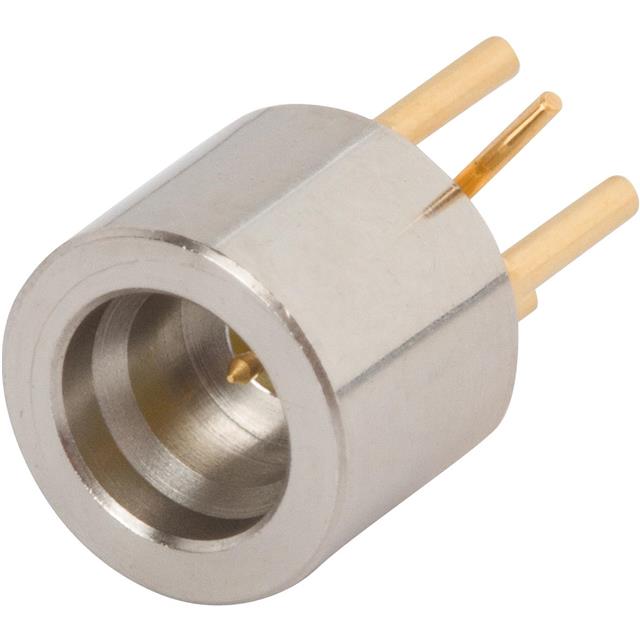

SF1211-66199

Active

Amphenol SV Microwave

CONN SMP PLUG STR 50OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Board to Board Brochure

SF1211-66199

Active

Amphenol SV Microwave

CONN SMP PLUG STR 50OHM PCB

Deep-Dive with AI

DocumentsDatasheet Board to Board Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF1211-66199

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polyamide-Imide (PAI)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	20 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Shield Termination	Solder

SF1211 Series

Part	Center Contact Plating	Contact Termination	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Impedance	Insertion Loss	Mounting Feature	Number of Ports	Features	Mounting Type	Dielectric Material	Frequency - Max [Max]	Shield Termination	Connector Type	Cable Group	Cable Group	Fastening Type	Housing Color	Mating Cycles	Includes
Amphenol SV Microwave SF1211-60193	Gold	Compression	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	50 Ohms	0.26 dB	Flange	1	Flange	Surface Mount	Polytetrafluoroethylene (PTFE)	18 GHz	Screw	Female Socket Jack
Amphenol SV Microwave SF1211-6021	Gold	Solder	Beryllium Copper			Stainless Steel	50 Ohms		Flange	1	Limited Detent		Polytetrafluoroethylene (PTFE)	40 GHz	Solder	Male Pin Plug	Flexible	0.047 in	Snap-On	Silver	500
Amphenol SV Microwave SF1211-6024	Gold	Solder	Beryllium Copper			Stainless Steel	50 Ohms		Flange	1	Limited Detent		Polytetrafluoroethylene (PTFE)	40 GHz	Solder	Male Pin Plug	RG-405	0.085 in	Snap-On	Silver	500
Amphenol SV Microwave SF1211-66199	Gold	Solder	Beryllium Copper			Stainless Steel	50 Ohms			1	Full Detent	Through Hole	Polyamide-Imide (PAI)	20 GHz	Solder	Male Pin Plug			Snap-On	Silver
Amphenol SV Microwave SF1211-6060	Gold	Solder	Beryllium Copper	-55 °C	165 °C	Stainless Steel	50 Ohms		Bulkhead - Front Side Nut	1	Catcher's Mitt		Polytetrafluoroethylene (PTFE)	26.5 GHz	Solder	Male Pin Plug	Flexible	0.047 in	Snap-On	Silver
Amphenol SV Microwave SF1211-66344-2S	Gold	Compression	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	50 Ohms	0.26 dB	Flange	1	Flange	Surface Mount	Polytetrafluoroethylene (PTFE)	18 GHz	Screw	Female Socket Jack
Amphenol SV Microwave SF1211-66214-1S	Gold	Compression	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	50 Ohms		Flange	1	Mounting Hardware	Surface Mount	Polytetrafluoroethylene (PTFE)	40 GHz	Screw	Male Pin Plug			Bayonet Lock	Silver		1 Connector 2 Screws
Amphenol SV Microwave SF1211-6044-TD	Gold	Solder	Beryllium Copper	-55 °C	125 °C	Stainless Steel	50 Ohms			1	Limited Detent	Through Hole	Polytetrafluoroethylene (PTFE)	40 GHz	Solder	Male Pin Plug			Snap-On	Silver	500
Amphenol SV Microwave SF1211-66199-TD	Gold	Solder	Beryllium Copper			Stainless Steel	50 Ohms			1	Full Detent	Through Hole	Polyamide-Imide (PAI)	20 GHz	Solder	Male Pin Plug			Snap-On	Silver
Amphenol SV Microwave SF1211-60193-2S	Gold	Compression	Beryllium Copper	-65 ░C	165 °C	Stainless Steel	50 Ohms	0.26 dB	Flange	1	Flange	Surface Mount	Polytetrafluoroethylene (PTFE)	18 GHz	Screw	Female Socket Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 38.38
		10	$ 33.61
		25	$ 32.16
		40	$ 31.12
		100	$ 30.08
		300	$ 28.42

Description

General part information

SF1211 Series

SMP Connector Plug, Male Pin 50 Ohms Through Hole Solder

Documents

Technical documentation and resources

Datasheet

Board to Board Brochure

Datasheet
