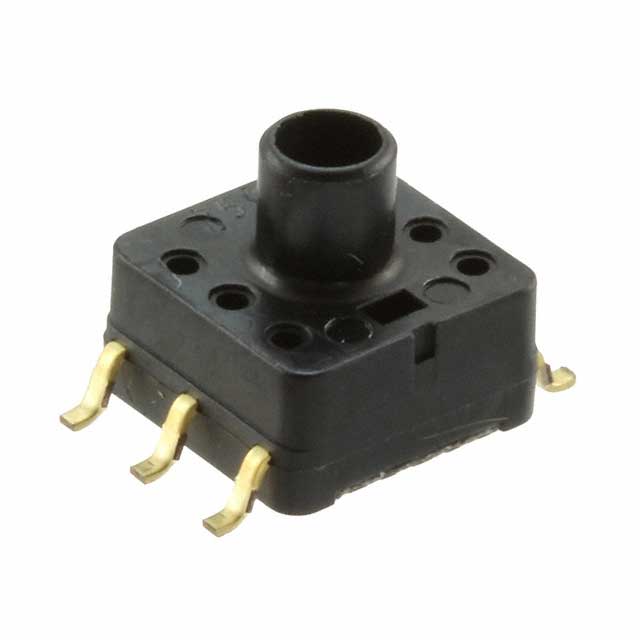

ADP5250

Panasonic Industrial Automation Sales

SENSOR 29.01PSIG 0.12" 4.5V

Search across all available documentation for this part.

Panasonic Industrial Automation Sales

SENSOR 29.01PSIG 0.12" 4.5V

Technical Specifications

Parameters and characteristics for this part

Specification	ADP5250

Accuracy	1.5 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	400 kPa
Maximum Pressure	58.02 PSI
Mounting Type	Surface Mount
Operating Pressure	2 bar
Operating Pressure	29.01 PSI
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Output [Max]	4.5 V
Output [Min]	0 mV
Output Type	Wheatstone Bridge
Package / Case	6-SMD Module
Port Size	Male - Tube
Port Size	3 mm, 0.12 "
Port Style	Barbless
Pressure Type	Vented Gauge
Termination Style	Gull Wing

Part	Operating Pressure	Operating Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Features	Maximum Pressure	Maximum Pressure	Pressure Type	Mounting Type	Port Style	Applications	Output Type	Termination Style	Accuracy	Output [Max]	Output [Min]	Package / Case	Port Size	Port Size
Panasonic Industrial Automation Sales ADP5250	2 bar	29.01 PSI	-10 °C	60 °C	Amplified Output Temperature Compensated	400 kPa	58.02 PSI	Vented Gauge	Surface Mount	Barbless	Board Mount	Wheatstone Bridge	Gull Wing	1.5 %	4.5 V	0 mV	6-SMD Module	Male - Tube	0.12 " 3 mm
Panasonic Industrial Automation Sales ADP5251	2 bar	29.01 PSI	-10 °C	60 °C	Amplified Output Temperature Compensated	400 kPa	58.02 PSI	Vented Gauge	Surface Mount	Barbless	Board Mount	Wheatstone Bridge	Gull Wing	1.5 %	4.5 V	0 mV	6-SMD Module	Male - Tube	0.12 " 3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 29.01PSI (200kPa) Vented Gauge Male - 0.12" (3mm) Tube 0 V ~ 4.5 V 6-SMD Module
