EPS060175UPS-P5P-KH

Obsolete

CUI Inc.

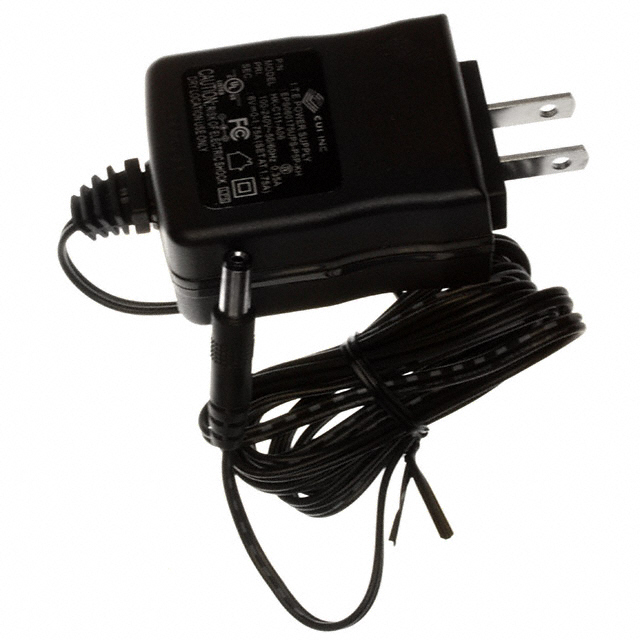

AC/DC WALL MOUNT ADAPTER 6V 11W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 6V 11W

Technical Specifications

Parameters and characteristics for this part

AC/DC WALL MOUNT ADAPTER 6V 11W

Part	No Load Power Consumption	Efficiency	Output Connector	Output Connector [diameter]	Output Connector [z]	Voltage - Output	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Power (Watts)	Region Utilized	Cord Length	Cord Length	Input Type	Form	Current - Output (Max) [Max]	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]
CUI Inc. EPS060175UPS-P5P-KH	500 mW	Level IV	Barrel Plug	2.1 mm, 5.5 mm	12 mm	6 V	ITE (Commercial)	1.77 "	2.43 "	30 mm	1.18 "	45.5 mm	61.8 mm	cULus	11 W	North America	70.9 in	1.8 m	Fixed Blade	Wall Mount (Class II)	1.75 A	Positive Center	40 °C	0 °C	NEMA 1-15P	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6V 11 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
