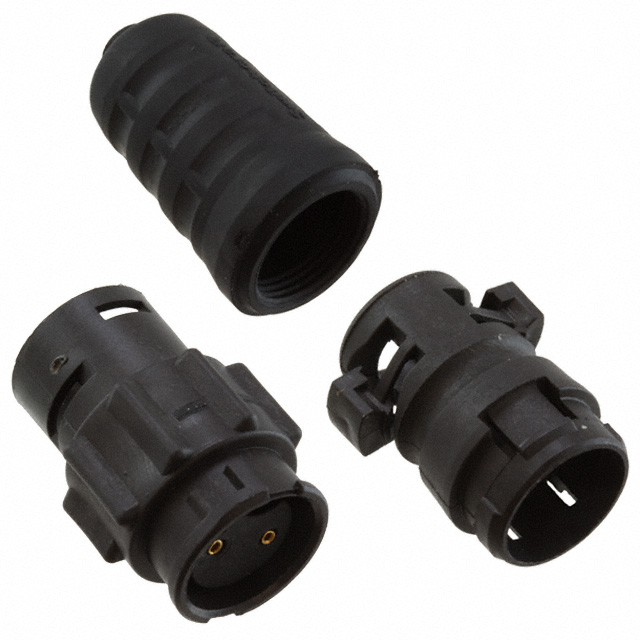

EN3L2FX

Active

Switchcraft Inc.

CONN CIRCULAR SKT 2 POS SOLDER ST CABLE MOUNT 2 TERMINAL 1 PORT BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3L2FX

Active

Switchcraft Inc.

CONN CIRCULAR SKT 2 POS SOLDER ST CABLE MOUNT 2 TERMINAL 1 PORT BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.45
		10	$ 6.70
		25	$ 6.31
		50	$ 6.15
		100	$ 5.99
		300	$ 5.70

Description

General part information

EN3L2F Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3L2FX	EN3L2F Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

EN3L2F Series

CONN RCPT FMALE 2POS SOLDER CUP

Part	Material Flammability Rating	Current Rating (Amps)	Fastening Type	Insert Material	Backshell Material, Plating	Number of Positions	Color	Ingress Protection	Shielding	Primary Material	Contact Finish - Mating	Applications	Contact Material	Mounting Type	Voltage Rating	Connector Type	Features	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Termination
Switchcraft Inc. EN3L2F16KX	UL94 V-0	13 A	Bayonet Lock	Elastomer	Thermoplastic	2	Black	IP66/IP68	Unshielded	Plastic	Gold	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Free Hanging (In-Line)	250 VAC	Receptacle, Female Sockets	Backshell, Cable Clamp	Keyed	4.06 mm, 6.73 mm	0.16 in, 0.265 in	65 °C	-40 °C
Switchcraft Inc. EN3L2F16CX	UL94 V-0	13 A	Bayonet Lock	Elastomer	Thermoplastic	2	Black	IP66/IP68	Unshielded	Plastic	Gold	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Free Hanging (In-Line)	250 VAC	Receptacle, Female Sockets	Backshell, Cable Clamp	Keyed	4.06 mm, 6.73 mm	0.16 in, 0.265 in	65 °C	-40 °C	Crimp
Switchcraft Inc. EN3L2FCKX	UL94 V-0	7.5 A	Bayonet Lock	Elastomer	Thermoplastic	2	Black	IP66/IP68	Unshielded	Plastic	Gold	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Free Hanging (In-Line)	250 VAC	Receptacle, Female Sockets	Backshell, Cable Clamp	Keyed	4.06 mm, 6.73 mm	0.16 in, 0.265 in	65 °C	-40 °C	Crimp
Switchcraft Inc. EN3L2FX	UL94 V-0	7.5 A	Bayonet Lock	Elastomer	Thermoplastic	2	Black	IP66/IP68	Unshielded	Plastic	Gold	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Free Hanging (In-Line)	250 VAC	Receptacle, Female Sockets	Backshell, Cable Clamp	Keyed	4.06 mm, 6.73 mm	0.16 in, 0.265 in	65 °C	-40 °C
Switchcraft Inc. EN3L2F16X	UL94 V-0	13 A	Bayonet Lock	Elastomer	Thermoplastic	2	Black	IP66/IP68	Unshielded	Plastic	Gold	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Free Hanging (In-Line)	250 VAC	Receptacle, Female Sockets	Backshell, Cable Clamp	Keyed	4.06 mm, 6.73 mm	0.16 in, 0.265 in	65 °C	-40 °C
Switchcraft Inc. EN3L2FCX	UL94 V-0	7.5 A	Bayonet Lock	Elastomer	Thermoplastic	2	Black	IP66/IP68	Unshielded	Plastic	Gold	General Purpose, Instrumentation, Marine, Medical	Copper Alloy	Free Hanging (In-Line)	250 VAC	Receptacle, Female Sockets	Backshell, Cable Clamp	Keyed	4.06 mm, 6.73 mm	0.16 in, 0.265 in	65 °C	-40 °C	Crimp
