EN3L2F16X

Active

Switchcraft Inc.

CONN CIRCULAR SKT 2 POS SOLDER ST CABLE MOUNT 2 TERMINAL 1 PORT BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3L2F16X

Active

Switchcraft Inc.

CONN CIRCULAR SKT 2 POS SOLDER ST CABLE MOUNT 2 TERMINAL 1 PORT BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	5	$ 13.01
		10	$ 11.78
		25	$ 11.45
		50	$ 11.19
Digikey	Bulk	1	$ 13.16
		10	$ 10.11
		25	$ 9.14
		50	$ 8.48
		100	$ 7.88
		300	$ 7.05
		500	$ 6.71
		1000	$ 6.28
Sager	N/A	100	$ 6.68
		200	$ 6.55
		300	$ 6.43

Description

General part information

EN3 Series

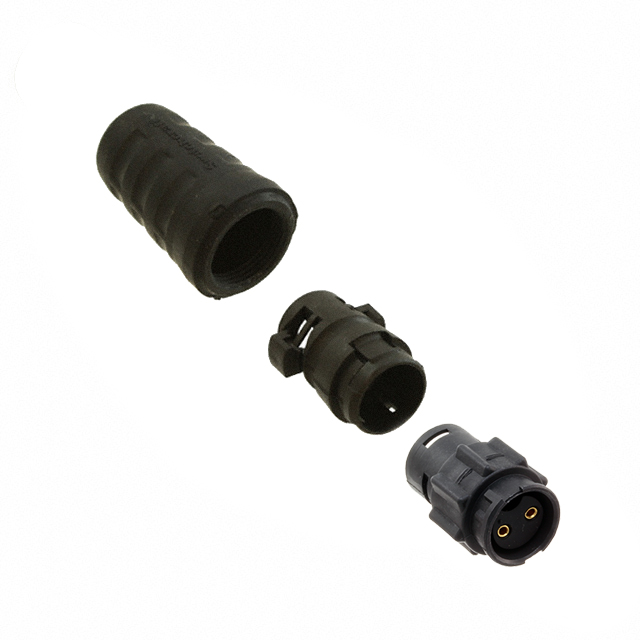

Standard Circular Connector 2P F PANEL TYPE #16

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3L2F16X	EN3 Series

Accessory Type	-	Cap (Cover)
Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Exit	-	180 °
Cable Opening	-	5.84 mm
Cable Opening	-	0.38 in
Cable Opening	-	9.65 mm
Cable Opening	-	0.23 in
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black, Gray
Connector Type	Receptacle, Female Sockets	Plug, Male Pins, Female Sockets, Receptacle, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	13 A	3 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Coupling Nut, Backshell, Waterproof, Flame Retardant, Dust Tight
For Use With/Related Products	-	EN3® Series Panel Mount Connector, Cord Connectors
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material	-	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Through Hole, Right Angle, Panel Mount
Number of Positions	2	2 - 18
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp, Solder
Type	-	Backshell, Cable Clamp
Voltage Rating	250 VAC	250 VAC

EN3 Series

Standard Circular Connector 2P F PANEL TYPE #16

Part	Contact Material	Mounting Type	Insert Material	Connector Type	Current Rating (Amps)	Primary Material	Color	Material Flammability Rating	Number of Positions	Voltage Rating	Backshell Material, Plating	Contact Finish - Mating	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Features	Orientation	Ingress Protection	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Applications	Mounting Feature	Cable Opening [diameter]	Cable Opening [diameter]	Termination
Switchcraft Inc. EN3C10M26SLX	Copper Alloy	Free Hanging (In-Line)	Elastomer	Male Pins, Plug	3 A	Plastic	Black	UL94 V-0	10	250 VAC	Thermoplastic	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Keyed	IP66/IP68	5.84 mm	0.38 in	9.65 mm	0.23 in	General Purpose, Instrumentation, Marine, Medical
Switchcraft Inc. EN3C11F26SLX	Copper Alloy	Free Hanging (In-Line)	Elastomer	Female Sockets, Plug	3 A	Plastic	Black	UL94 V-0	11	250 VAC	Thermoplastic	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Keyed	IP66/IP68	5.84 mm	0.38 in	9.65 mm	0.23 in	General Purpose, Instrumentation, Marine, Medical
Switchcraft Inc. EN3P13M26SX	Copper Alloy		Elastomer	Male Pins, Receptacle	3 A	Plastic	Black	UL94 V-0	13	250 VAC		Gold	Unshielded	65 °C	-40 °C	Bayonet Lock		Keyed	IP66/IP68					General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut
Switchcraft Inc. EN3C9F26X	Copper Alloy	Free Hanging (In-Line)	Elastomer	Female Sockets, Plug	3 A	Plastic	Black	UL94 V-0	9	250 VAC	Thermoplastic	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Keyed	IP66/IP68					General Purpose, Instrumentation, Marine, Medical		4.06 mm, 6.73 mm	0.16 in, 0.265 in
Switchcraft Inc. EN3P6FCX	Copper Alloy		Elastomer	Receptacle, Female Sockets	7.5 A	Plastic	Black	UL94 V-0	6	250 VAC		Gold	Unshielded	65 °C	-40 °C	Bayonet Lock		Keyed	IP66/IP68					General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut			Crimp
Switchcraft Inc. EN3C3MCX	Copper Alloy	Free Hanging (In-Line)	Elastomer	Male Pins, Plug	7.5 A	Plastic	Black	UL94 V-0		250 VAC	Thermoplastic	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Keyed	IP66/IP68					General Purpose, Instrumentation, Marine, Medical		4.06 mm, 6.73 mm	0.16 in, 0.265 in	Crimp
Switchcraft Inc. EN3C13M26SX	Copper Alloy	Free Hanging (In-Line)	Elastomer	Male Pins, Plug	3 A	Plastic	Black	UL94 V-0	13	250 VAC	Thermoplastic	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Keyed	IP66/IP68					General Purpose, Instrumentation, Marine, Medical		4.06 mm, 6.73 mm	0.16 in, 0.265 in
Switchcraft Inc. EN3C15M26SLX	Copper Alloy	Free Hanging (In-Line)	Elastomer	Male Pins, Plug	3 A	Plastic	Black	UL94 V-0	15	250 VAC	Thermoplastic	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Keyed	IP66/IP68	5.84 mm	0.38 in	9.65 mm	0.23 in	General Purpose, Instrumentation, Marine, Medical
Switchcraft Inc. EN3C14F26SLX	Copper Alloy	Free Hanging (In-Line)	Elastomer	Female Sockets, Plug	3 A	Plastic	Black	UL94 V-0	14	250 VAC	Thermoplastic	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Keyed	IP66/IP68	5.84 mm	0.38 in	9.65 mm	0.23 in	General Purpose, Instrumentation, Marine, Medical
Switchcraft Inc. EN3C12M26SLX	Copper Alloy	Free Hanging (In-Line)	Elastomer	Male Pins, Plug	3 A	Plastic	Black	UL94 V-0	12	250 VAC	Thermoplastic	Gold	Unshielded	65 °C	-40 °C	Bayonet Lock	Backshell, Cable Clamp, Coupling Nut	Keyed	IP66/IP68	5.84 mm	0.38 in	9.65 mm	0.23 in	General Purpose, Instrumentation, Marine, Medical
