17-110214

Active

Amphenol CONEC

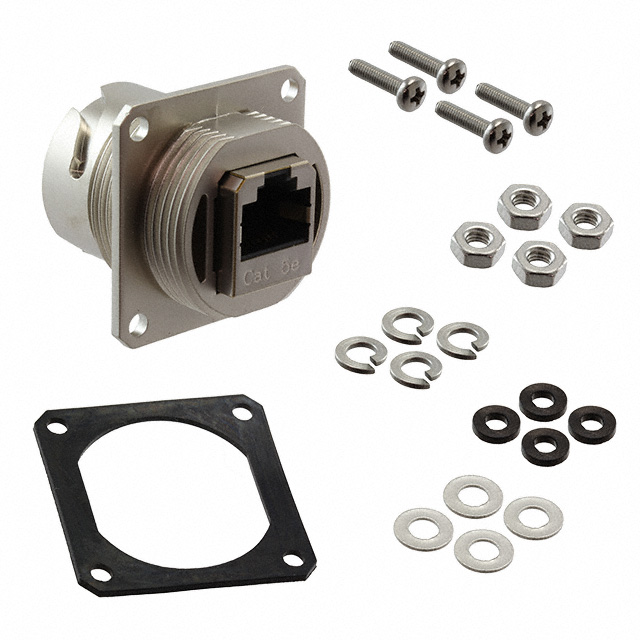

COUPLER IP67 CAT5E RJ45

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

17-110214

Active

Amphenol CONEC

COUPLER IP67 CAT5E RJ45

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-110214

Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Convert From (Adapter End)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	8p8c (RJ45), Jack
Features	Circular Bayonet Coupling
Housing Material	Zinc Die Cast
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Front Side Nut
Mounting Type	Panel Mount, Square Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Ratings	Cat5e
Shell Material, Finish	Nickel Plated, Copper Alloy
Shielding	Shielded
Type	Coupler

17-1102 Series

Part	Type	Shielding	Mounting Feature	Ratings	Ingress Protection	Mounting Type	Contact Material	Shell Material, Finish	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Convert From (Adapter End)	Contact Finish	Convert To (Adapter End)	Features	Number of Positions/Contacts	Connector Type	Tab Direction	LED Color	Number of Rows	Termination	Orientation	Number of Ports
Amphenol CONEC 17-110224	Coupler	Unshielded	Front Side Nut	Cat5e	IP67 - Dust Tight Waterproof	Panel Mount Square Flange	Phosphor Bronze	Copper Alloy Nickel Plated	Zinc Die Cast	85 °C	-40 °C	50 µin	1.27 µm	Jack 8p8c (RJ45)	Gold	8p8c (RJ45) Jack	Circular Bayonet Coupling
Amphenol CONEC 17-110254	Coupler			Cat5e	IP67 - Dust Tight Waterproof									Jack 8p8c (RJ45)		8p8c (RJ45) Jack
Amphenol CONEC 17-110234	Coupler	Shielded	Front Side Nut		IP67 - Dust Tight Waterproof	Panel Mount Square Flange	Phosphor Bronze	Copper Alloy Nickel Plated	Zinc Die Cast	85 °C	-40 °C	50 µin	1.27 µm	Jack 8p8c (RJ45)	Gold	8p8c (RJ45) Jack	Cap (Cover) Circular Threaded Coupling Industrial Environments
Amphenol CONEC 17-110214	Coupler	Shielded	Front Side Nut	Cat5e	IP67 - Dust Tight Waterproof	Panel Mount Square Flange	Phosphor Bronze	Copper Alloy Nickel Plated	Zinc Die Cast	85 °C	-40 °C	50 µin	1.27 µm	Jack 8p8c (RJ45)	Gold	8p8c (RJ45) Jack	Circular Bayonet Coupling
Amphenol CONEC 17-110264		Shielded		Cat5e	IP67 - Dust Tight Waterproof	Bulkhead Panel Mount	Phosphor Bronze		Polyester	85 °C	-40 °C	50 µin	1.27 µm		Gold		Circular Bayonet Coupling	8p8c (RJ45 Ethernet)	Jack	User Selectable	Does Not Contain LED	1	PC Board Solder	Straight	1
Amphenol CONEC 17-110204		Shielded		Cat5e	IP67 - Dust Tight Waterproof	Bulkhead Panel Mount	Phosphor Bronze		Zinc Die Cast Nickel Plated	85 °C	-40 °C	50 µin	1.27 µm		Gold		Circular Bayonet Coupling Potted	8p8c (RJ45 Ethernet)	Jack	User Selectable	Does Not Contain LED	1	Terminal Block	Straight	1
Amphenol CONEC 17-110244	Coupler	Unshielded	Front Side Nut		IP67 - Dust Tight Waterproof	Panel Mount Square Flange	Phosphor Bronze	Copper Alloy Nickel Plated	Zinc Die Cast	85 °C	-40 °C	50 µin	1.27 µm	Jack 8p8c (RJ45)	Gold	8p8c (RJ45) Jack	Cap (Cover) Circular Bayonet Coupling Industrial Environments

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 37.18
		10	$ 32.56
		25	$ 31.15
		50	$ 30.15
		100	$ 29.14
		250	$ 27.54

Description

General part information

17-1102 Series

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat5e Shielded
