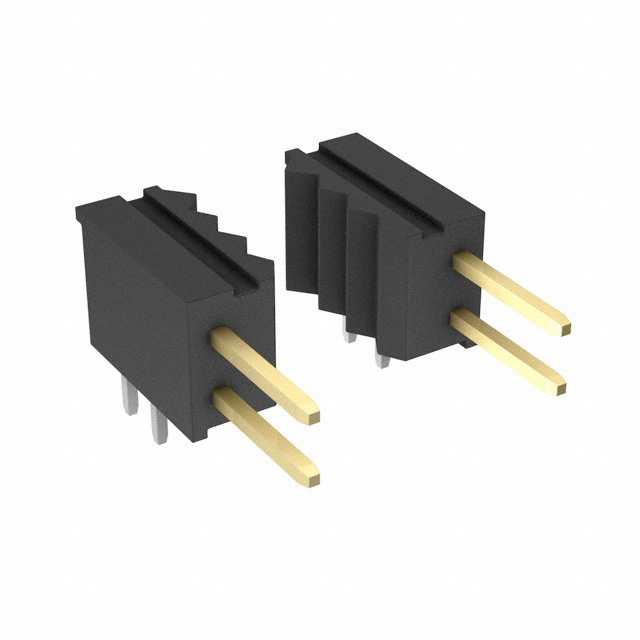

A1-24PA-2.54DS(71)

Active

Hirose Electric Co Ltd

CONN HEADER R/A 24POS 2.54MM

Search across all available documentation for this part.

Active

Hirose Electric Co Ltd

CONN HEADER R/A 24POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A1-24PA-2.54DS(71)	A1-24PA Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	0.203 Ám	0.203 Ám
Contact Finish Thickness - Mating	8 Áin	8 Áin
Contact Finish Thickness - Post	2 çm	2 çm
Contact Finish Thickness - Post	78.7 çin	78.7 çin
Contact Length - Mating	6 mm	6 mm
Contact Length - Mating	0.236 in	0.236 in
Contact Length - Post	0.118 in	0.118 in
Contact Length - Post	3 mm	3 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	6 mm	2.54 - 6 mm
Insulation Height	0.236 in	0.1 - 0.236 in
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	24	24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	11.54 mm
Overall Contact Length	-	0.454 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	200 V	200 V

CONN HEADER VERT 24POS 2.54MM

Part	Overall Contact Length	Overall Contact Length	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Contact Type	Termination	Voltage Rating	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Current Rating (Amps)	Insulation Height	Insulation Height	Style	Pitch - Mating	Pitch - Mating	Contact Material	Number of Rows	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Mounting Type	Material Flammability Rating	Contact Shape	Fastening Type	Number of Positions Loaded	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric Co Ltd A1-24PA-2.54DSA(71)	11.54 mm	0.454 in	Black	6 mm	0.236 in	2 çm	78.7 çin	Tin	Male Pin	Solder	200 V	0.118 in	3 mm	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	3 A	0.1 in	2.54 mm	Board to Board, Cable	0.1 in	2.54 mm	Brass	2	Unshrouded	85 °C	-55 °C	Header	24	Through Hole	UL94 V-0	Square	Push-Pull	All	Gold	0.203 Ám	8 Áin
Hirose Electric Co Ltd A1-24PA-2.54DS(71)			Black	6 mm	0.236 in	2 çm	78.7 çin	Tin	Male Pin	Solder	200 V	0.118 in	3 mm	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	3 A	0.236 in	6 mm	Board to Board, Cable	0.1 in	2.54 mm	Brass	2	Unshrouded	85 °C	-55 °C	Header	24	Through Hole, Right Angle	UL94 V-0	Square	Push-Pull	All	Gold	0.203 Ám	8 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	90	$ 2.87

General part information

Connector Header Through Hole, Right Angle 24 position 0.100" (2.54mm)
