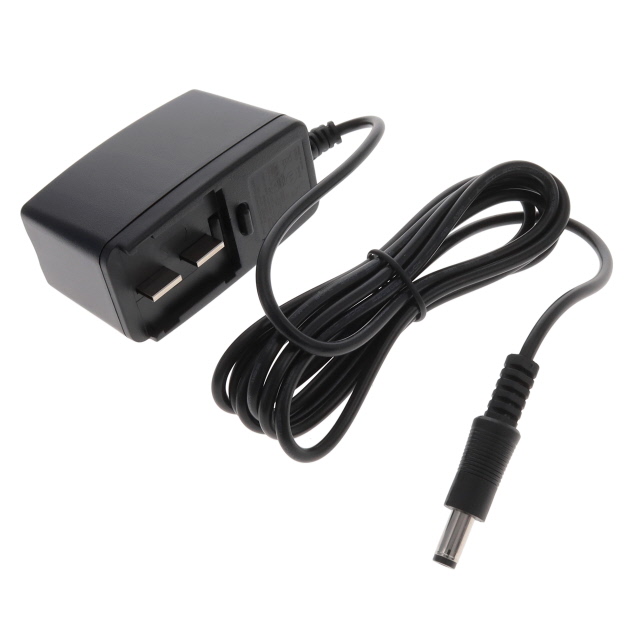

Specification	TRG10R060-11E03 VI

Applications	ITE (Commercial)
Approval Agency	PSE, cULus, FCC, TUV, GS, CE
Cord Length	70.9 in
Current - Output (Max)	1.5 A
Efficiency	Level VI, CoC Tier 2
Form	Wall Mount (Class II)
Input Connector	Multi-Blade (Sold Separately)
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption (Max)	75 mW
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Output Connector	Barrel Plug R/A
Output Connector I.D.	2.1 mm
Output Connector Length	12 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	9 W
Region Utilized	International
Size / Dimension Height	1.82 in
Size / Dimension Length	2.86 in
Size / Dimension Width	1.4 in
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	6 V
Weight	0.287 lb

TRG10R Series

Part	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Output Connector I.D.	Output Connector	Output Connector Length	Output Connector O.D.	No Load Power Consumption (Max)	Input Type	Polarization	Region Utilized	Form	Applications	Current - Output (Max)	Approval Agency	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Voltage - Output	Cord Length	Power (Watts)	Operating Temperature (Max)	Operating Temperature (Min)	Input Connector	Efficiency	Weight	Standard Number
Cincon Electronics Co. LTD TRG10R075-11E03 VI	90 V	264 V	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	75 mW	Multi-Blade (Sold Separately)	Positive Center	International	Wall Mount (Class II)	ITE (Commercial)	1.2 A	CE cULus FCC GS PSE TUV	2.86 in	1.82 in	1.4 in	7.5 V	70.9 in	9 W	60 °C	-20 °C	Multi-Blade (Sold Separately)	CoC Tier 2 Level VI	0.287 lb
Cincon Electronics Co. LTD TRG10R060-11E03 VI	90 V	264 V	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	75 mW	Multi-Blade (Sold Separately)	Positive Center	International	Wall Mount (Class II)	ITE (Commercial)	1.5 A	CE cULus FCC GS PSE TUV	2.86 in	1.82 in	1.4 in	6 V	70.9 in	9 W	60 °C	-20 °C	Multi-Blade (Sold Separately)	CoC Tier 2 Level VI	0.287 lb
Cincon Electronics Co. LTD TRG10R240-01E03 VI	90 V	264 V	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	75 mW	Multi-Blade (Sold Separately)	Positive Center	International	Wall Mount (Class II)	ITE (Commercial)	400 mA	CE cULus FCC GS PSE TUV	2.86 in	1.82 in	1.4 in	24 V	70.9 in	9.6 W	60 °C	-20 °C	Multi-Blade (Sold Separately)	CoC Tier 2 Level VI	0.287 lb
Cincon Electronics Co. LTD TRG10R059-01E03 VI	90 V	264 V	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	75 mW	Multi-Blade (Sold Separately)	Positive Center	International	Wall Mount (Class II)	ITE (Commercial)	1.5 A	CE cULus FCC GS PSE TUV	2.86 in	1.82 in	1.4 in	5.9 V	70.9 in	8.9 W	60 °C	-20 °C	Multi-Blade (Sold Separately)	CoC Tier 2 Level VI		60950-1 62368-1
Cincon Electronics Co. LTD TRG10R059-11E03 VI	90 V	264 V	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	75 mW	Multi-Blade (Sold Separately)	Positive Center	International	Wall Mount (Class II)	ITE (Commercial)	1.5 A	CE cULus FCC GS PSE TUV	2.86 in	1.82 in	1.4 in	5.9 V	70.9 in	8.9 W	60 °C	-20 °C	Multi-Blade (Sold Separately)	CoC Tier 2 Level VI	0.287 lb
Cincon Electronics Co. LTD TRG10R136-01E03 VI	90 V	264 V	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	75 mW	Multi-Blade (Sold Separately)	Positive Center	International	Wall Mount (Class II)	ITE (Commercial)	750 mA	CE cULus FCC GS PSE TUV	2.86 in	1.82 in	1.4 in	13.6 V	70.9 in	10 W	60 °C	-20 °C	Multi-Blade (Sold Separately)	CoC Tier 2 Level VI	0.287 lb
Cincon Electronics Co. LTD TRG10R120-11E03 VI	90 V	264 V	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	75 mW	Multi-Blade (Sold Separately)	Positive Center	International	Wall Mount (Class II)	ITE (Commercial)	850 mA	CE cULus FCC GS PSE TUV	2.86 in	1.82 in	1.4 in	12 V	70.9 in	10 W	60 °C	-20 °C	Multi-Blade (Sold Separately)	CoC Tier 2 Level VI	0.287 lb
Cincon Electronics Co. LTD TRG10R060-01E03 VI	90 V	264 V	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	75 mW	Multi-Blade (Sold Separately)	Positive Center	International	Wall Mount (Class II)	ITE (Commercial)	1.5 A	CE cULus FCC GS PSE TUV	2.86 in	1.82 in	1.4 in	6 V	70.9 in	9 W	60 °C	-20 °C	Multi-Blade (Sold Separately)	CoC Tier 2 Level VI		60950-1 62368-1
Cincon Electronics Co. LTD TRG10R075-01E03 VI	90 V	264 V	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	75 mW	Multi-Blade (Sold Separately)	Positive Center	International	Wall Mount (Class II)	ITE (Commercial)	1.2 A	CE cULus FCC GS PSE TUV	2.86 in	1.82 in	1.4 in	7.5 V	70.9 in	9 W	60 °C	-20 °C	Multi-Blade (Sold Separately)	CoC Tier 2 Level VI		60950-1 62368-1
Cincon Electronics Co. LTD TRG10R050-11E03 VI	90 V	264 V	2.1 mm	Barrel Plug R/A	12 mm	5.5 mm	75 mW	Multi-Blade (Sold Separately)	Positive Center	International	Wall Mount (Class II)	ITE (Commercial)	1.6 A	CE cULus FCC GS PSE TUV	2.86 in	1.82 in	1.4 in	5 VDC	70.9 in	8 W	60 °C	-20 °C	Multi-Blade (Sold Separately)	CoC Tier 2 Level VI	0.287 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TRG10R060-11E03 VI | Datasheet
