800-1400-2-SJT0-BL-00150

Obsolete

CnC Tech, LLC

CORD 14AWG 320C14 - C13 4.92'

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CORD 14AWG 320C14 - C13 4.92'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

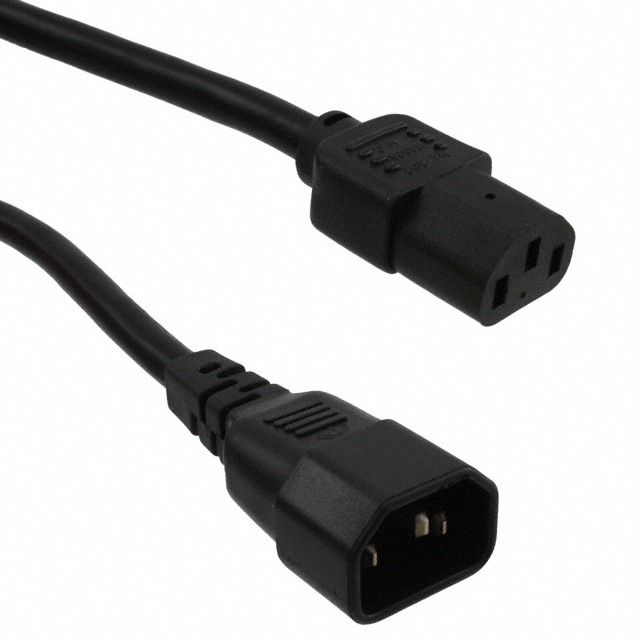

4.92' (1.50m) Power Cord Black IEC 320-C14 To IEC 320-C13 SJT

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CORD 14AWG 320C14 - C13 4.92'

Part	1st Connector	Approval Agency Marking	Number of Conductors	Current Rating (Amps)	Wire Gauge	Operating Temperature	Length	Length	Color	Cord Type	Style	Approved Countries	Voltage Rating	Length [x]	Length [x]	Shielding
CnC Tech, LLC 800-1400-2-SJT0-BL-00150	IEC 320-C14	CSA, UL	3	15 A	13.5 AWG	105 C	4.92 '	1.5 m	Black	SJT	Female Sockets, Male Pins	Canada, United States	250 VDC
CnC Tech, LLC 800-1400-0-SJT0-BL-00050	IEC 320-C14	CSA, UL	3	15 A	13.5 AWG	60 °C			Black	SJT	Female Sockets, Male Pins	Canada, United States	125 VDC	1.64 ft	500 mm
CnC Tech, LLC 800-1400-2-SJT0-BL-00150-1	IEC 320-C14	cUL, UL	3	15 A	13.5 AWG	105 C	4.92 '	1.5 m	Black	SJT	Female Sockets, Male Pins	Canada, United States	250 VDC			Unshielded
CnC Tech, LLC 800-1400-2-SJT0-BL-00200-1	IEC 320-C14	cUL, UL	3	15 A	13.5 AWG	105 C			Black	SJT	Female Sockets, Male Pins	Canada, United States	250 VDC	6.56 ft	2 m	Unshielded
CnC Tech, LLC 800-1400-2-SJT0-BL-00200	IEC 320-C14	CSA, UL	3	15 A	13.5 AWG	105 C			Black	SJT	Female Sockets, Male Pins	Canada, United States	250 VDC	6.56 ft	2 m
CnC Tech, LLC 800-1400-2-SJT0-BL-00050	IEC 320-C14	CSA, UL	3	15 A	13.5 AWG	105 C			Black	SJT	Female Sockets, Male Pins	Canada, United States	250 VDC	1.64 ft	500 mm
CnC Tech, LLC 800-1400-2-SJT0-BL-00100	IEC 320-C14	CSA, UL	3	15 A	13.5 AWG	105 C			Black	SJT	Female Sockets, Male Pins	Canada, United States	250 VDC	3.28 ft	1 m
CnC Tech, LLC 800-1400-2-SJT0-BL-00050-1	IEC 320-C14	cUL, UL	3	15 A	13.5 AWG	105 C			Black	SJT	Female Sockets, Male Pins	Canada, United States	250 VDC	1.64 ft	500 mm	Unshielded
