R123703000

Active

Radiall USA, Inc.

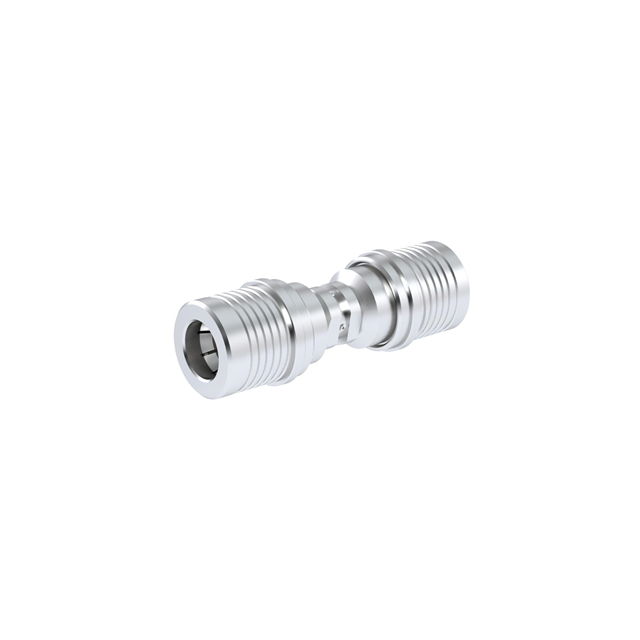

RF CONNECTOR ADAPTER, QMA-QMA, MALE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF CONNECTOR ADAPTER, QMA-QMA, MALE

Technical Specifications

Parameters and characteristics for this part

Specification	R123703000

Adapter Series	QMA to QMA
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	QMA Plug, Male Pin
Convert To (Adapter End)	QMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Insertion Loss	0.25 dB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Ingress Protection	Center Gender	Adapter Type	Mounting Type	Center Contact Plating	Style	Frequency - Max [Max]	Center Contact Material	Body Material	Impedance	Fastening Type	Adapter Series	Body Finish	Dielectric Material	Convert To (Adapter End)	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)	Conversion Type
Radiall USA, Inc. R123703000	IP68 - Dust Tight Waterproof	Male to Male	Plug to Plug	Free Hanging (In-Line)	Gold	Straight	6000 MHz	Brass	Brass	50 Ohms	Snap-On	QMA to QMA	White Bronze	Polytetrafluoroethylene (PTFE)	Male Pin QMA Plug	0.25 dB	-40 °C	105 ░C	QMA Plug Male Pin	Same Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector QMA Plug, Male Pin To QMA Plug, Male Pin 50 Ohms
