1726 SL005

Active

ALPHA WIRE

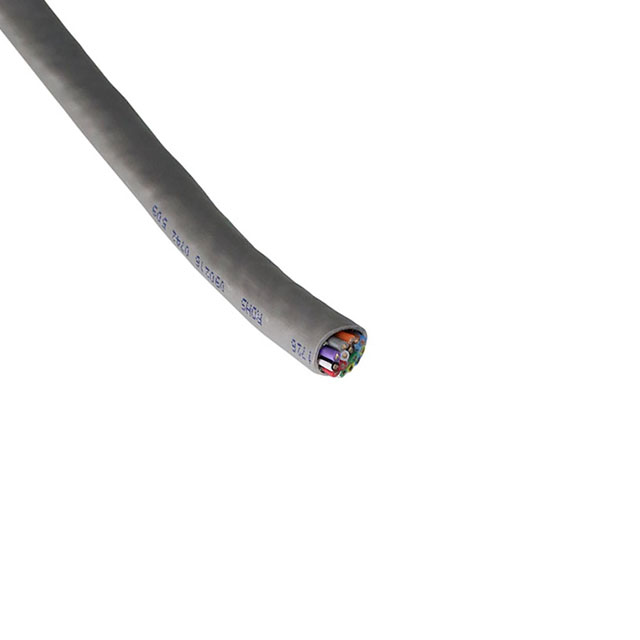

CABLE 15COND 20AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 15COND 20AWG SHLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1726 SL005	1726 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polyethylene (PE)	Polyethylene (PE)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand	34 AWG, 26	26 - 34 AWG
Jacket (Insulation) Diameter [diameter]	10.69 mm	10.69 mm
Jacket (Insulation) Diameter [diameter]	0.421 in	0.421 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm	0.889 mm
Jacket (Insulation) Thickness	0.035 in	0.035 in
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	15	15
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	85 %	85 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	20 AWG	20 AWG

MULTICONDUCTOR CABLE, SHIELDED, 15 CONDUCTOR, 20 AWG, 0.52 MM², 1000 FT, 304.8 M

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Shield Material	Usage	Number of Conductors	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Length	Length	Jacket (Insulation) Material	Cable Type	Shield Type	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Voltage	Wire Gauge	Length [x]	Length [x]
ALPHA WIRE 1726 SL001	10.69 mm	0.421 in	26, 34 AWG	Copper, Tinned	Communication, Control	15	Polyethylene (PE)	0.889 mm	0.035 in	Copper, Tinned	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Braid	85 %	-20 C	60 °C	Slate	600 V	20 AWG
ALPHA WIRE 1726 SL005	10.69 mm	0.421 in	26, 34 AWG	Copper, Tinned	Communication, Control	15	Polyethylene (PE)	0.889 mm	0.035 in	Copper, Tinned			Poly-Vinyl Chloride (PVC)	Multi-Conductor	Braid	85 %	-20 C	60 °C	Slate	600 V	20 AWG	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 27.62

General part information

15 Conductor Multi-Conductor Cable Slate 20 AWG Braid 100.0' (30.5m)
