E6D30065A

Active

Wolfspeed

DIODE SIC 650V TO220

Search across all available documentation for this part.

Active

Wolfspeed

DIODE SIC 650V TO220

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E6D30065A	E6D30065 Series

Capacitance @ Vr, F	1864 pF	1841 - 1864 pF
Current - Average Rectified (Io)	92.5 A	84 - 95 A
Current - Average Rectified (Io) (per Diode)	-	50 A
Current - Reverse Leakage @ Vr	100 µA	50 - 100 µA
Diode Configuration	-	1 Pair Common Cathode
Grade	Automotive	Automotive
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Temperature - Junction [Max]	175 ░C	175 ░C
Operating Temperature - Junction [Min]	-55 C	-55 C
Package / Case	TO-220-2	TO-247-2, TO-220-2, TO-247-3, D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Qualification	AEC-Q101	AEC-Q101
Reverse Recovery Time (trr)	0 ns	0 ns
Speed	No Recovery Time	No Recovery Time
Supplier Device Package	TO-220-2	TO-247-2, TO-220-2, TO-247-3, TO-263-2
Technology	SiC (Silicon Carbide) Schottky	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V	650 V
Voltage - Forward (Vf) (Max) @ If	1.5 V	1.5 V

DIODE SIC 650V TO247

Part	Qualification	Current - Average Rectified (Io)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Technology	Grade	Speed	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Diode Configuration	Current - Average Rectified (Io) (per Diode)
Wolfspeed E6D30065H	AEC-Q101	84 A	175 ░C	-55 C	1850 pF	TO-247-2	650 V	TO-247-2	SiC (Silicon Carbide) Schottky	Automotive	No Recovery Time	100 µA	Through Hole	1.5 V
Wolfspeed E6D30065A	AEC-Q101	92.5 A	175 ░C	-55 C	1864 pF	TO-220-2	650 V	TO-220-2	SiC (Silicon Carbide) Schottky	Automotive	No Recovery Time	100 µA	Through Hole	1.5 V
Wolfspeed E6D30065D			175 ░C	-55 C		TO-247-3	650 V	TO-247-3	SiC (Silicon Carbide) Schottky		No Recovery Time	50 µA	Through Hole	1.5 V	1 Pair Common Cathode	50 A
Wolfspeed E6D30065G		95 A	175 ░C	-55 C	1841 pF	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	650 V	TO-263-2	SiC (Silicon Carbide) Schottky		No Recovery Time	100 µA	Surface Mount	1.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

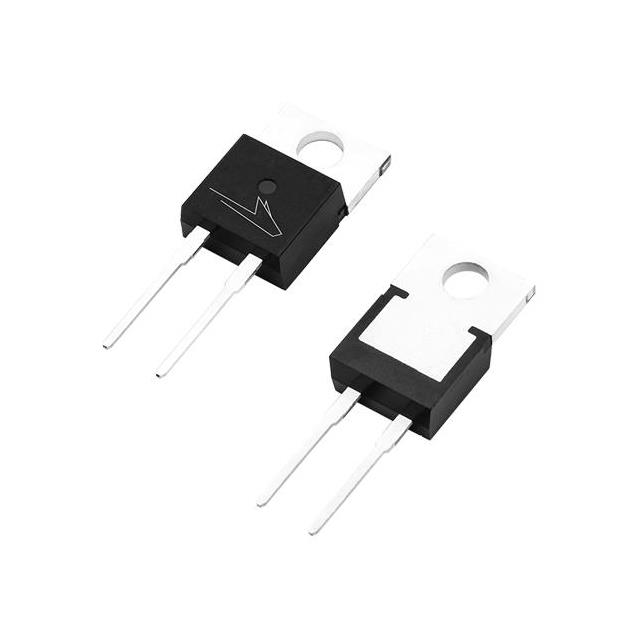

Diode 650 V 92.5A Through Hole TO-220-2
