1424496

Active

Phoenix Contact

CABLE GLAND MATERIAL PA EXTERNAL CABLE DIAMETER 4 MM 8 MM SHIELDING NO

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND MATERIAL PA EXTERNAL CABLE DIAMETER 4 MM 8 MM SHIELDING NO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.57

General part information

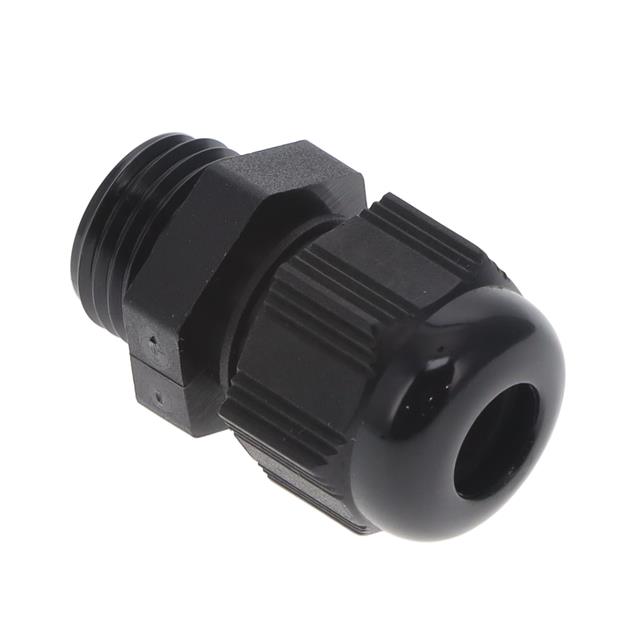

Cable Gland Polyamide (PA), Nylon PG9 Black

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1424496	G-INS-PG9 Series

Color	Black	Gray, Silver, Black
Includes	Seal	Seal, O-Ring
Ingress Protection	IP68 - Dust Tight, Waterproof	IP66/IP68, IP66, IP68, IP69, IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in	0.315 in
Outside Cable Diameter (Min) [Min]	0.157 in	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm	4 mm
Thread Length	8 mm	6 - 8 mm
Thread Length	0.315 in	0.236 - 0.315 in
Thread Size	PG9	PG9
Type	Cable Gland	Cable Gland

CABLE GLAND 4-8MM PG9 POLYAMIDE

Part	Ingress Protection	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size	Thread Length	Thread Length	Color	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Material
Phoenix Contact 1411141	IP66/IP68	Seal	0.157 in	4 mm	PG9	8 mm	0.315 in	Gray	100 °C	-40 °C	8 mm	0.315 in	Cable Gland	Polyamide (PA), Nylon
Phoenix Contact 1411171	IP66, IP68, IP69	O-Ring, Seal	0.157 in	4 mm	PG9	6 mm	0.236 in	Silver	100 °C	-40 °C	8 mm	0.315 in	Cable Gland	Brass, Nickel Plated
Phoenix Contact 1424486	IP68 - Dust Tight, Waterproof	Seal	0.157 in	4 mm	PG9	8 mm	0.315 in	Gray	100 °C	-20 C	8 mm	0.315 in	Cable Gland	Polyamide (PA), Nylon
Phoenix Contact 1424496	IP68 - Dust Tight, Waterproof	Seal	0.157 in	4 mm	PG9	8 mm	0.315 in	Black	100 °C	-40 °C	8 mm	0.315 in	Cable Gland	Polyamide (PA), Nylon
