EET-ED2G151CA

Obsolete

Panasonic Electronic Components

CAP ALUM 150UF 20% 400V SNAP TH

EET-ED2G151CA

Obsolete

Panasonic Electronic Components

CAP ALUM 150UF 20% 400V SNAP TH

Description Specifications Series Pricing CAD Documents

Description

General part information

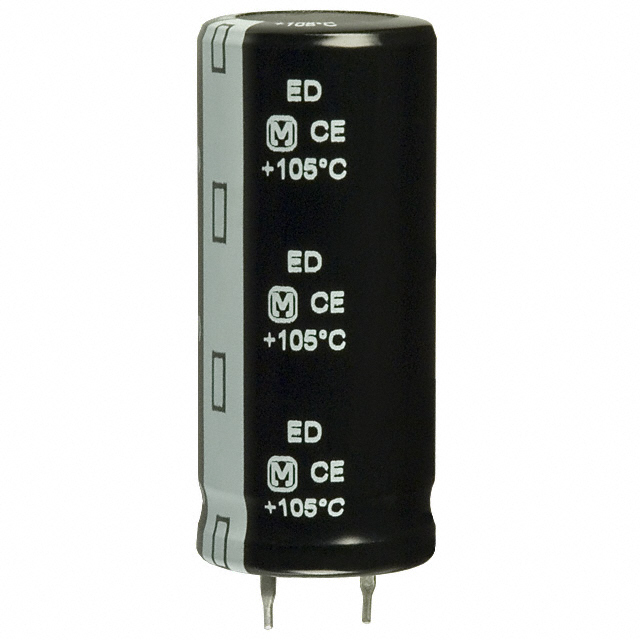

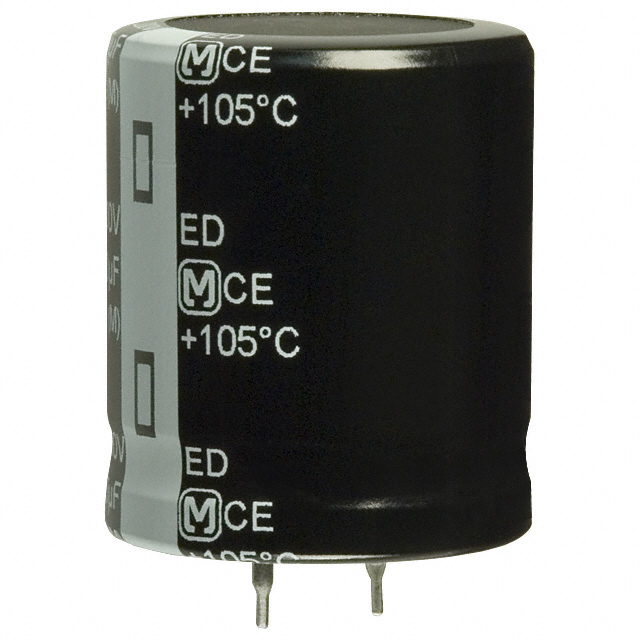

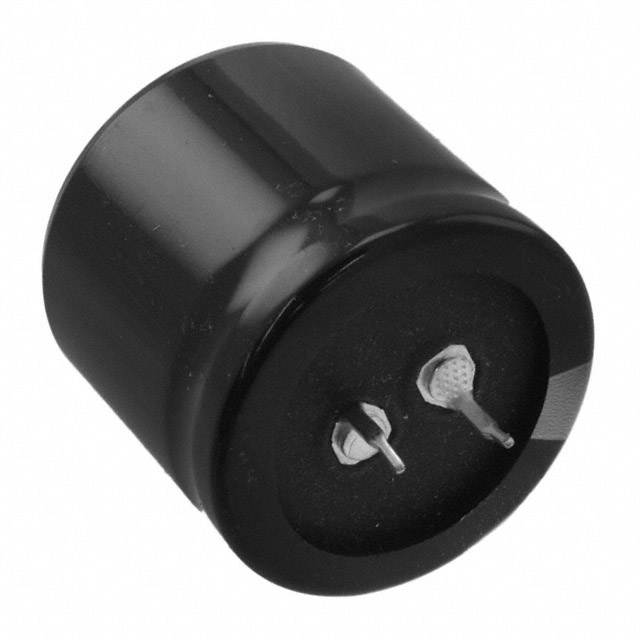

EET-ED Series

150 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 884mOhm @ 120Hz 3000 Hrs @ 105°C

Technical Specifications

Parameters and characteristics for this part

Specification	EET-ED2G151CA

Applications	General Purpose
Capacitance	150 µF
ESR (Equivalent Series Resistance)	884 mOhm
Height - Seated (Max)	1.181 in
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	1.07 A, 1.53 A
Size / Dimension Diameter	0.984 in
Tolerance	20 %
Voltage - Rated	400 V

EET-ED Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Lead Spacing	Package / Case	Polarization	Ripple Current	Voltage - Rated	Tolerance	Size / Dimension Diameter	Applications	Lifetime	Height - Seated (Max)	ESR (Equivalent Series Resistance)	Mounting Type	Capacitance
Panasonic Electronic Components EET-ED2D102EA	-40 °C	105 °C	0.394 in	Can - Snap-In Radial	Polar	2.84 A 4.06 A	200 VDC	20 %	1.378 in	General Purpose	3000 Hrs	1.181 in	149 mOhm	Through Hole	1000 µF
Panasonic Electronic Components EET-ED2G271DA	-25 °C	105 °C	0.394 in	Can - Snap-In Radial	Polar	1.56 A 2.23 A	400 V	20 %	1.181 in	General Purpose	3000 Hrs	1.378 in	491 mOhm	Through Hole	270 µF
Panasonic Electronic Components EET-ED2D152EA	-40 °C	105 °C	0.394 in	Can - Snap-In Radial	Polar	3.56 A 5.08 A	200 VDC	20 %	1.378 in	General Purpose	3000 Hrs	1.575 in	99 mOhm	Through Hole	1500 µF
Panasonic Electronic Components EET-ED2G151CA	-25 °C	105 °C	0.394 in	Can - Snap-In Radial	Polar	1.07 A 1.53 A	400 V	20 %	0.984 in	General Purpose	3000 Hrs	1.181 in	884 mOhm	Through Hole	150 µF
Panasonic Electronic Components EET-ED2G151BA	-25 °C	105 °C	0.394 in	Can - Snap-In Radial	Polar	1.07 A 1.53 A	400 V	20 %	0.866 in	General Purpose	3000 Hrs	1.575 in	884 mOhm	Through Hole	150 µF
Panasonic Electronic Components EET-ED2W121DA	-25 °C	105 °C	0.394 in	Can - Snap-In Radial	Polar	1.02 A 1.46 A	450 V	20 %	1.181 in	General Purpose	3000 Hrs	0.984 in	1.105 Ohm	Through Hole	120 µF
Panasonic Electronic Components EET-ED2W181BA	-25 °C	105 °C	0.394 in	Can - Snap-In Radial	Polar	1.12 A 1.6 A	450 V	20 %	0.866 in	General Purpose	3000 Hrs	1.969 in	737 mOhm	Through Hole	180 µF
Panasonic Electronic Components EET-ED2W561EA	-25 °C	105 °C	0.394 in	Can - Snap-In Radial			450 V	20 %	1.378 in	General Purpose	3000 Hrs	2.48 in		Through Hole	560 µF
Panasonic Electronic Components EET-ED2W151DA	-25 °C	105 °C	0.394 in	Can - Snap-In Radial	Polar	1.07 A 1.53 A	450 V	20 %	1.181 in	General Purpose	3000 Hrs	1.181 in	884 mOhm	Through Hole	150 µF
Panasonic Electronic Components EET-ED2E271CA	-40 °C	105 °C	0.394 in	Can - Snap-In Radial	Polar	1.42 A 2.03 A	250 V	20 %	0.984 in	General Purpose	3000 Hrs	0.984 in	553 mOhm	Through Hole	270 µF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

EET-ED2G151CA | Datasheet
